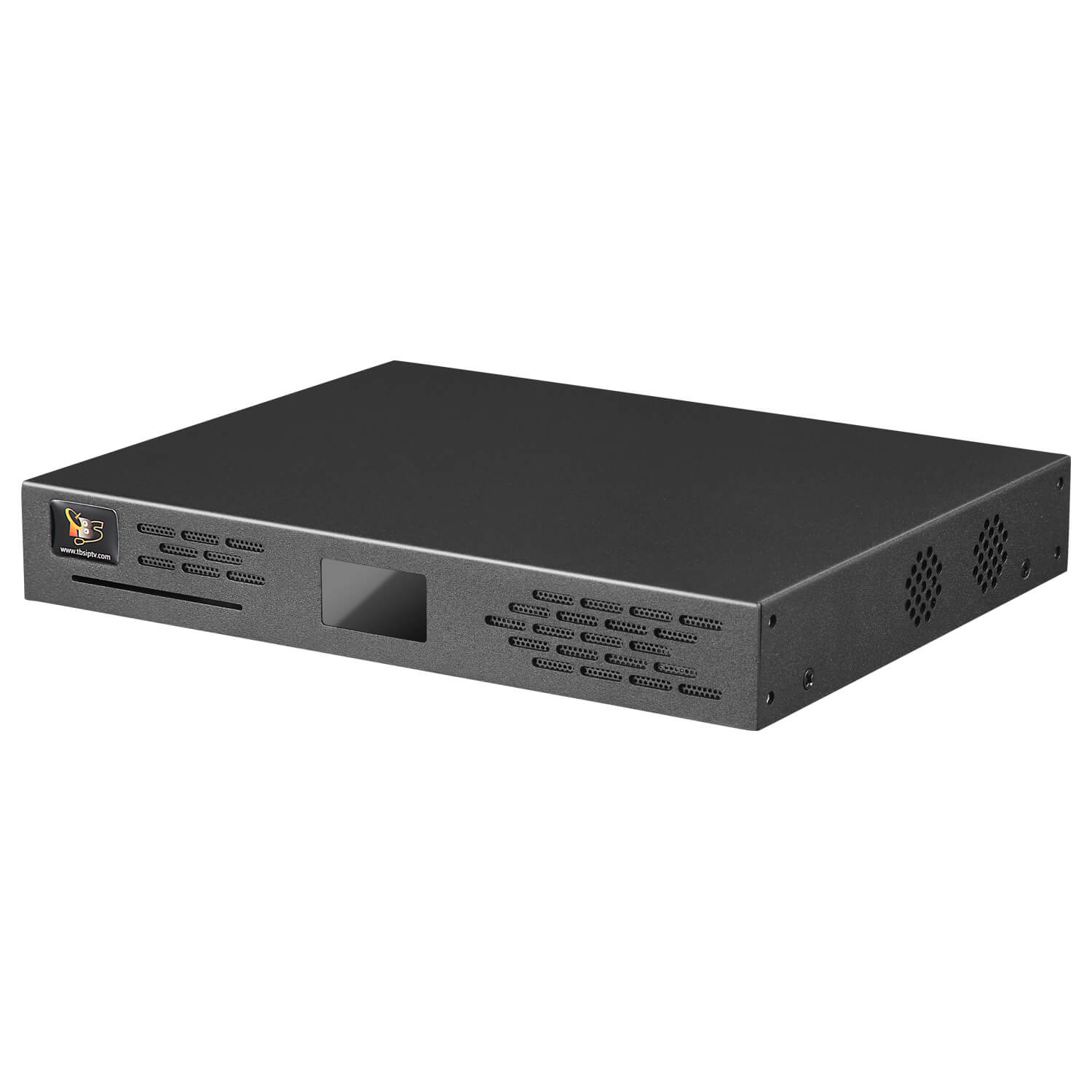

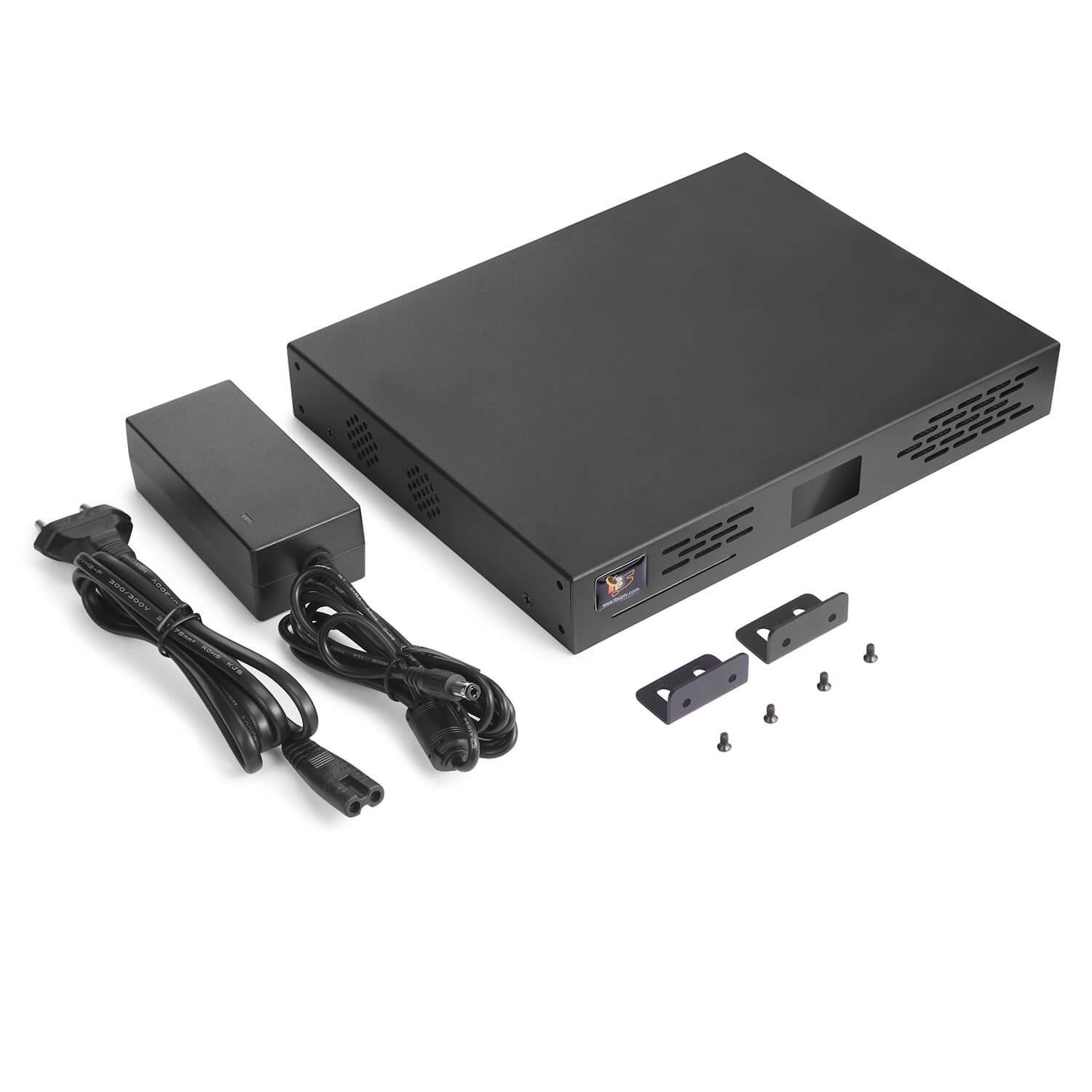

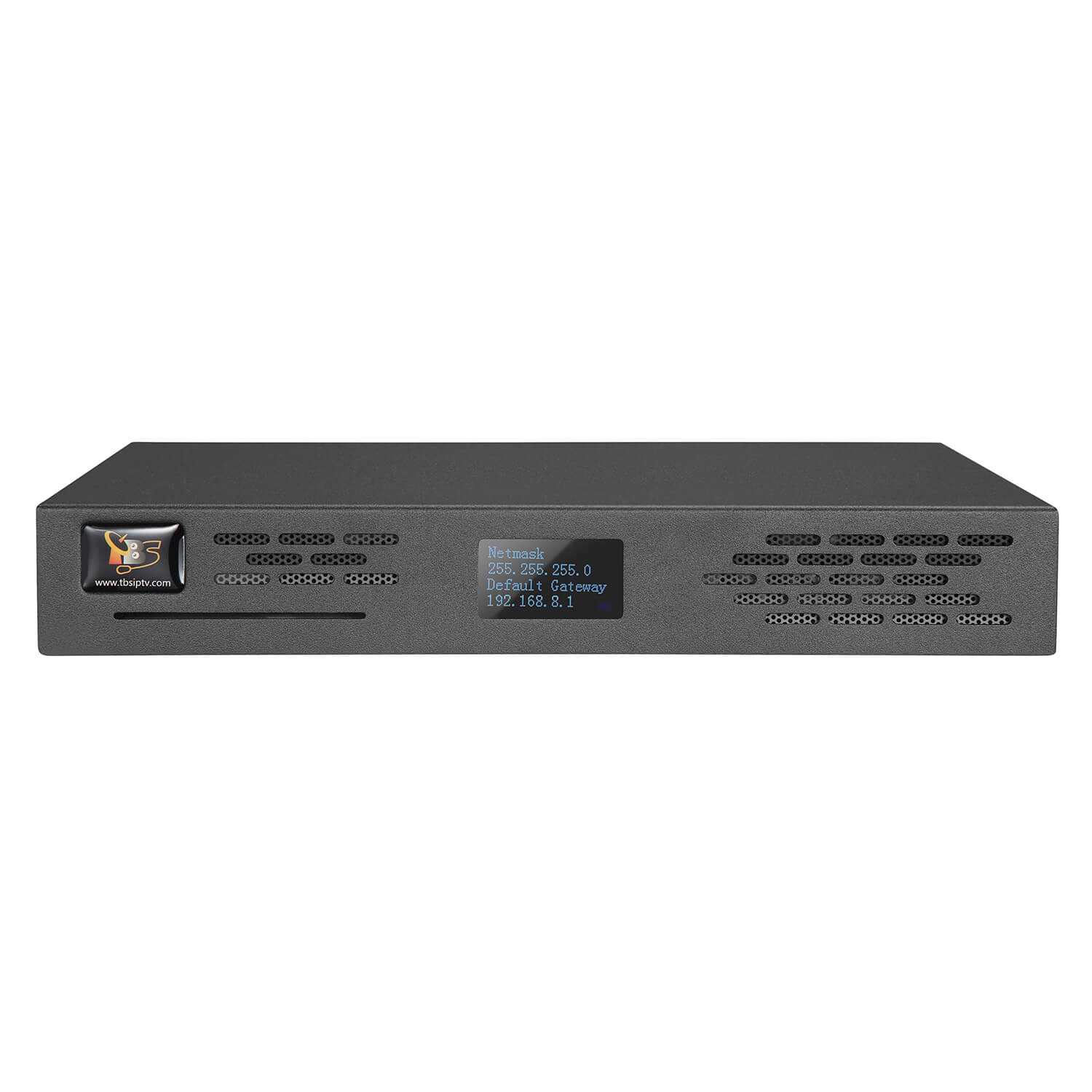

    TBS2804X 4 Channels 4K 30Hz HDMI Video Encoder

    TBS2804X is a professional 4 channels 4K HDMI Video Encoder that enables high-quality content streaming and display. It supports maximum of 4K@30Hz HDMI input and can stream to popular online social media platform, such as YouTube Live, Facebook Live, Twitch or to a custom-specified RTMP/RTMPS servers. It is compatible with HTTP, HLS, UDP Multicast, SRT (Listener), RMTP, SAP. What's more, it supports multiple protocol outputs, up to 6 protocols at the same time.

    TBS2804X supports to capture 4K content in H.265/H.264 format. Besides, with flexible web UI control, it can easily switch between channels and adjust configurations, offering better TV viewing experience.

    Features:

    • Supports H.265/HEVC and H.264/AVC compression
    • Supports up to 4K@30Hz HDMI input
    • Controlled by user-friendly web UI
    • Hardware compression , save CPU resource.

    Specification

    Model TBS2804X

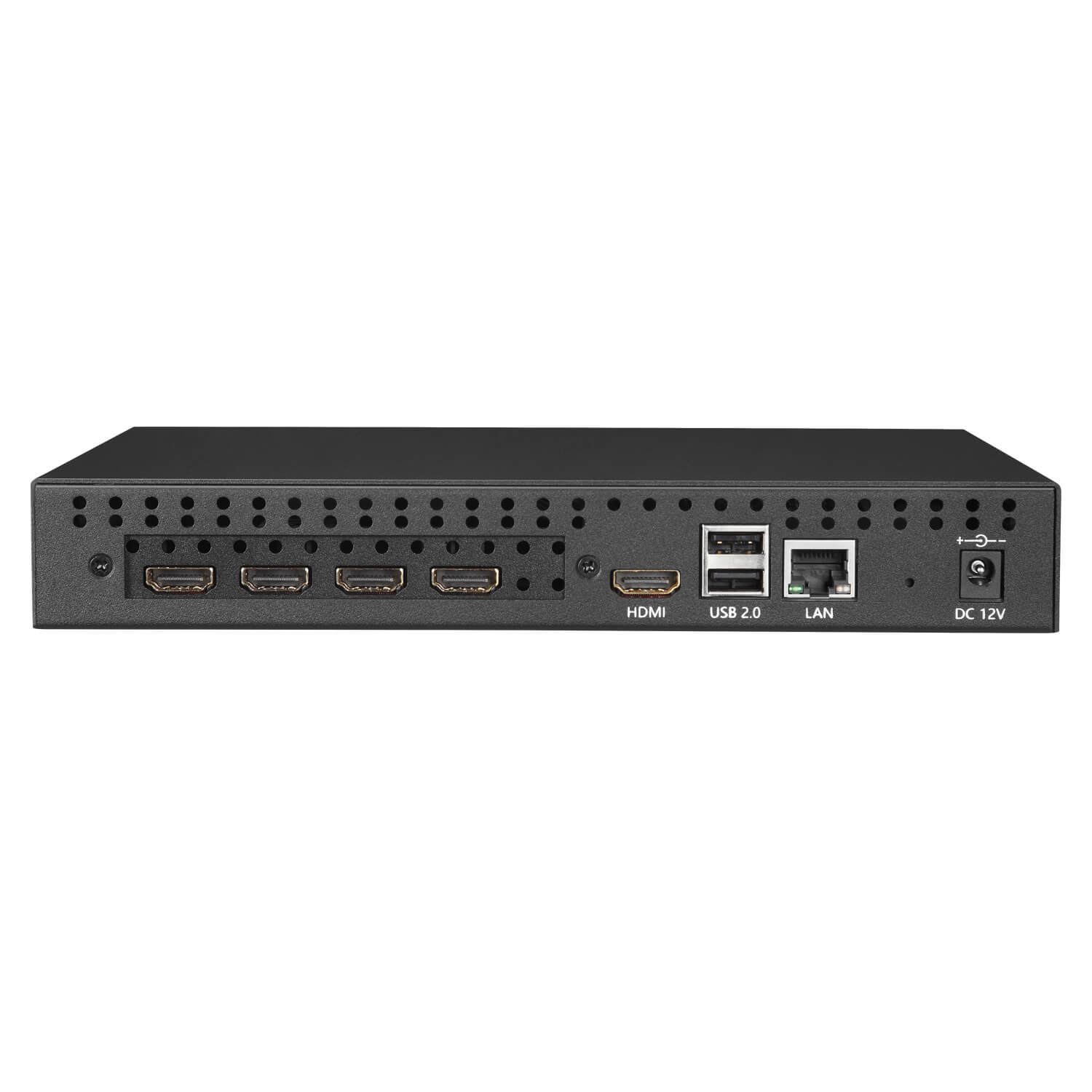

    Input 4x HDMI 1.4a
    HDCP 1.4 supported
    Video Input 3840x2160p_30hz, 1920x1080p_60/50/30/25/24hz, 1920x1080i_60/50hz,
    1280x720p_60/50hz, 720x576p/i, 720x480p/i, and etc.
    Video Output 3840x2160p@30fps, 2560x1600p@30fps, 2560x1440p@30fps, 2048x1152@30fps, 1920x1080p@60/50/30/25/24fps, 1280x720p@60/50/30/25fps, 1024x576p@60/50fps, 720x576p@60/50fps, 720x480p@60/50fps, 704x576p@60/50fps, 640x480p@60/50fps and etc
    Sampling format YUV4:4:4
    YUV4:2:2
    YUV4:2:0
    Codec H.265 & H.264
    Profile H.264, Main/High; H.265 Main
    Frame rate 5 ~ 60fps
    Level H264: Level 4.2; H265: Level 4.1
    Bit Rate Control CBR, VBR
    Color depth 8 bit
    Audio Input HDMI Embedded audio
    Audio Codec AAC-LC, AAC-HE, MP2
    Bite Rate 0.3 ~ 20Mbps
    GOP Structure IPPP
    Protocols HTTP, HLS(m3u8), UDP multicast, SRT caller & listener, RTMP & RTMPS
    Control Web GUI
    OSD Overlay Supports inserting "Logo, Text" to video
    Ethernet/LAN 1000M Base-T Ethernet Interface
    Dimension 230mm * 180mm * 34mm
    Power Consumption Less than 30 Watt
    Net weight 1.27kg
