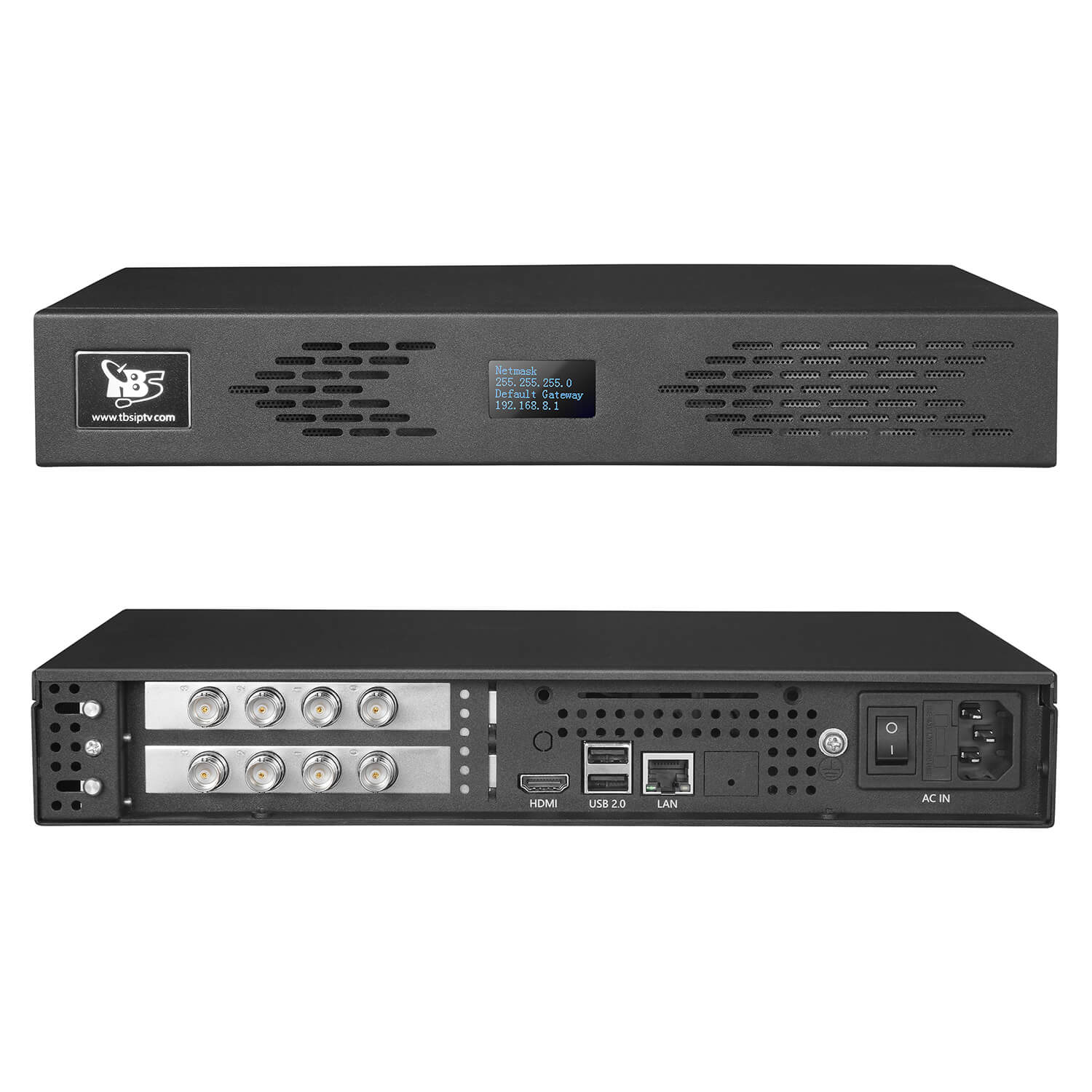

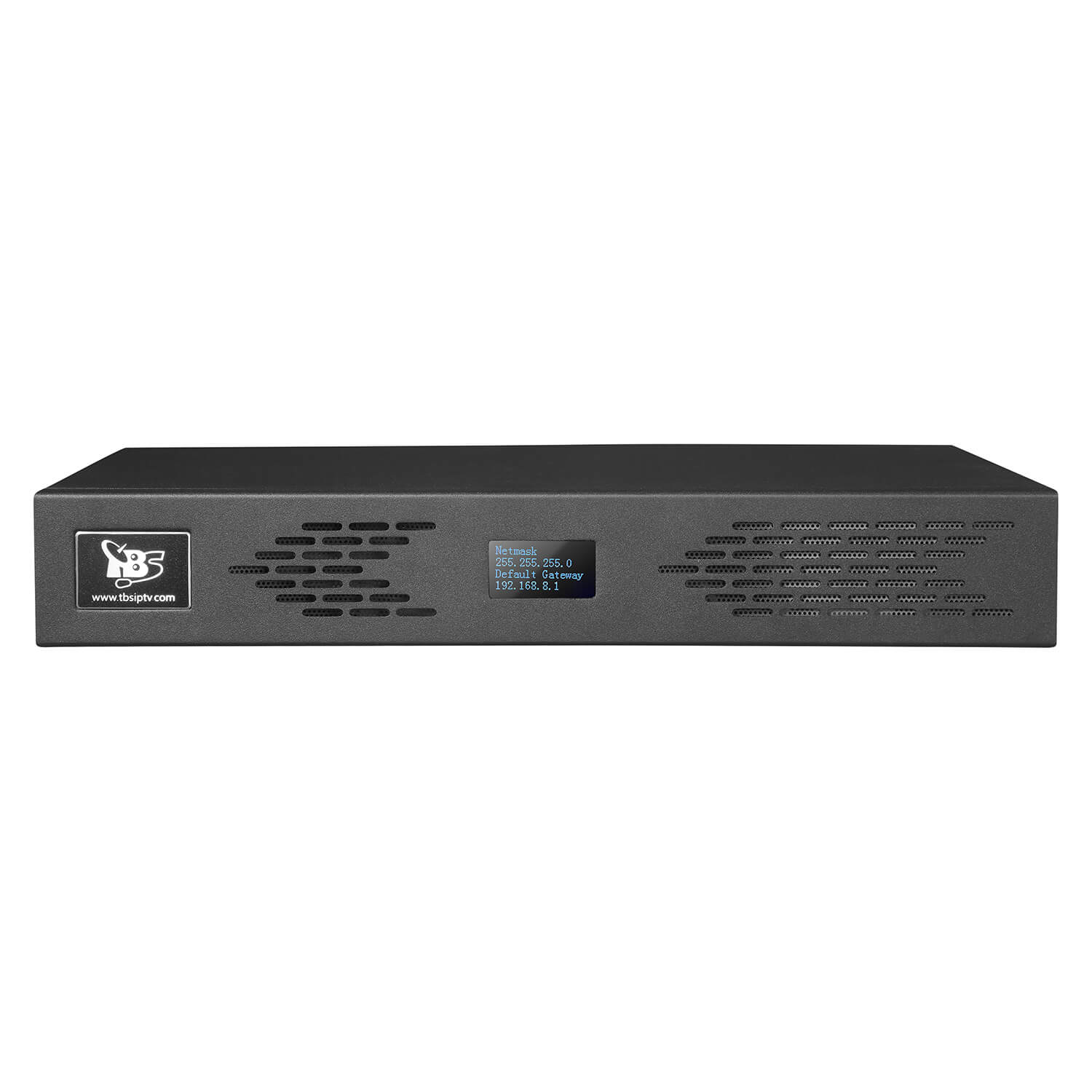

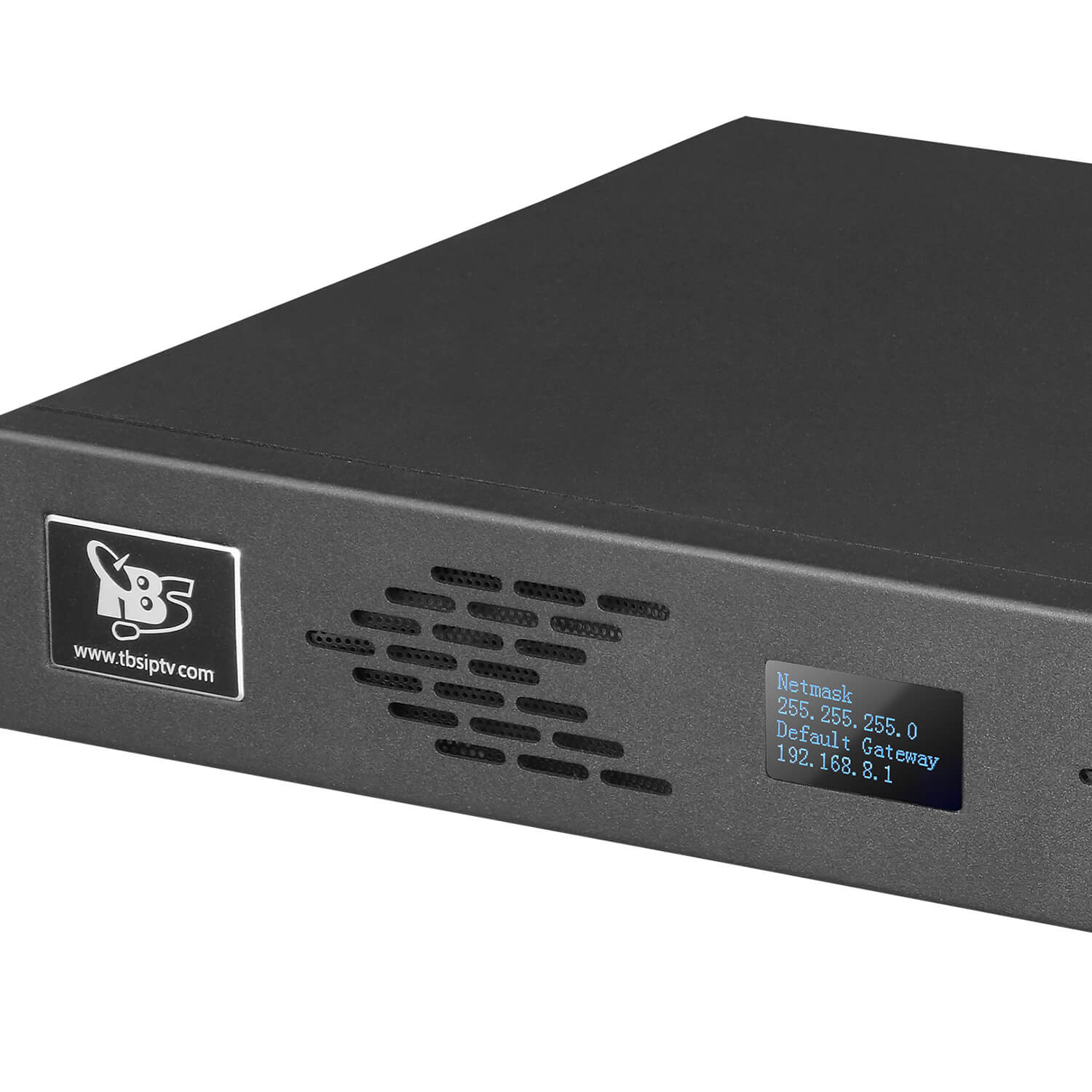

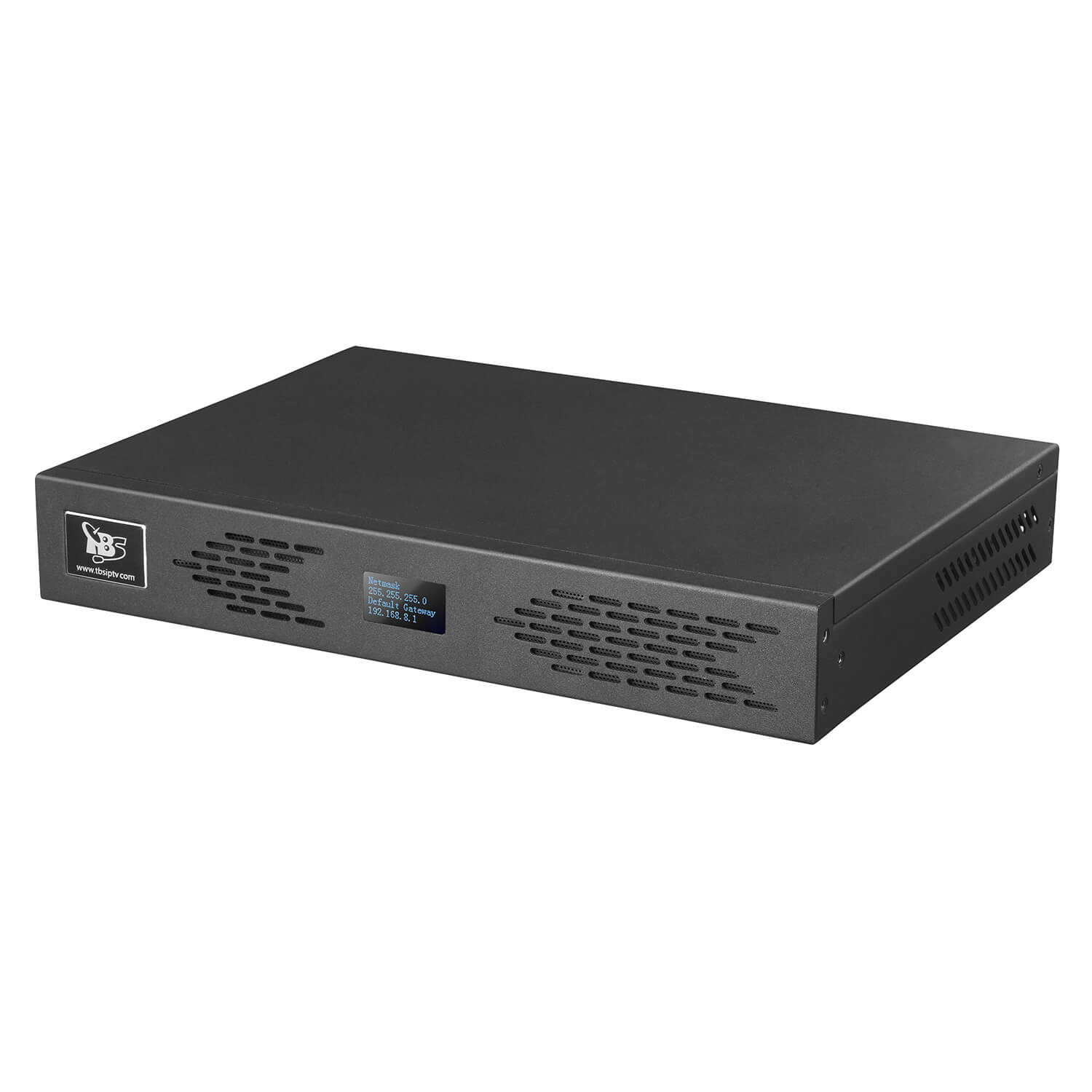

    TBS2808SDI 8 Channels 1080P@60fps SDI Video Encoder

    TBS2808SDI is a high-definition multi-channel SDI video encoder that supports 8 independent SD/HD/3G-SDI inputs simultaneously and delivers H.264/H.265 encoded streams through a single RJ45 interface.

    TBS2808SDI supports 8-channel 1080P@60Hz input and H.265/H.264 1080P@60fps video encode. It especially optimized for low-bitrate LAN/WAN transmission, enabling high-definition streaming even under limited bandwidth conditions.

    From any SDI video sources and SDI embedded audio，TBS2808SDI can generate H.264/H.265 & AAC-LC/ AAC-HE/ MP2 encoded streams compliant with HLS (m3u8), HTTP, SRT, UDP, RTMP/RTMPS protocols. It provides professional-grade hardware encoding solution for broadcast and streaming applications and more.

    Features:

    • Multi-channel Inputs: 8x 3G/HD/SD-SDI input
    • Full HD Encoding: 8-channel 1080p@60fps encoding
    • SDI Audio Embedded Input: Up to 4 stereo audio tracks (8 channels mono audio)
    • Supports H.265/HEVC & H.264/AVC video encoding
    • Multi-protocol IP Output via Single LAN Port: HTTP, HLS(m3u8), UDP multicast, SRT caller & listener, RTMP & RTMPS
    • Support OSD overlay, including inserting logo/text into video
    • Web-based GUI for remote management
    • Flexible Integration: Compatible with media servers (e.g. Wowza, FMS etc.) and social media platforms (e.g. YouTube, Facebook, Twitch etc.)
    • Broadcast-Grade Stability: Designed for 24/7 operation in IPTV, live streaming and broadcast environments.

    Applications:

    • Digital TV broadcasting system
    • IPTV & OTT system
    • Datacasting and monitoring
    • Live TV encoding and streaming
    • Digital signage project
    • Remote video conference

    Intuitive Web-based Kylone GUI for Flexible and Efficient Management

    Specification

    Model NO. TBS2808SDI
    Model Name 8 Channels 1080P@60fps SDI Video Encoder

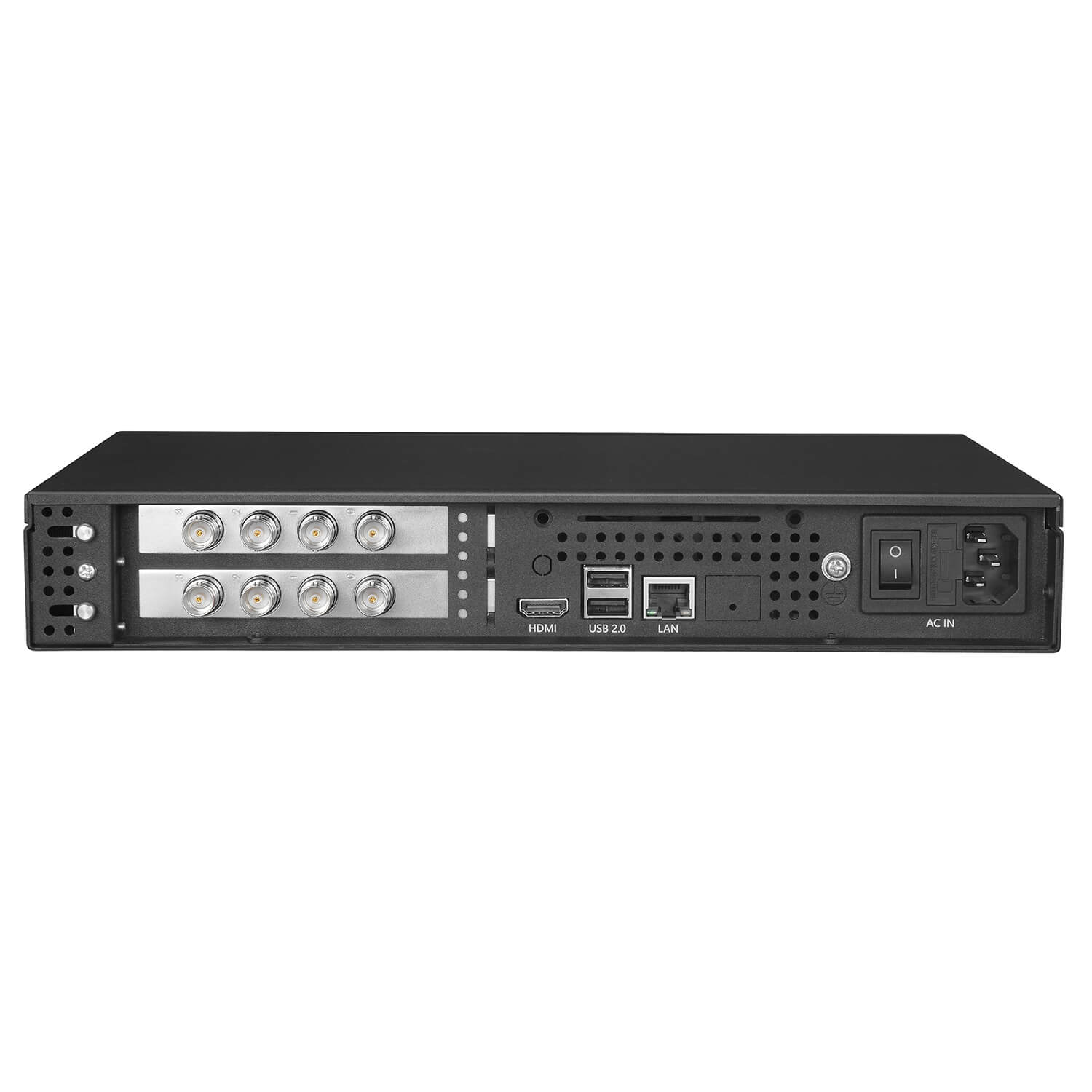

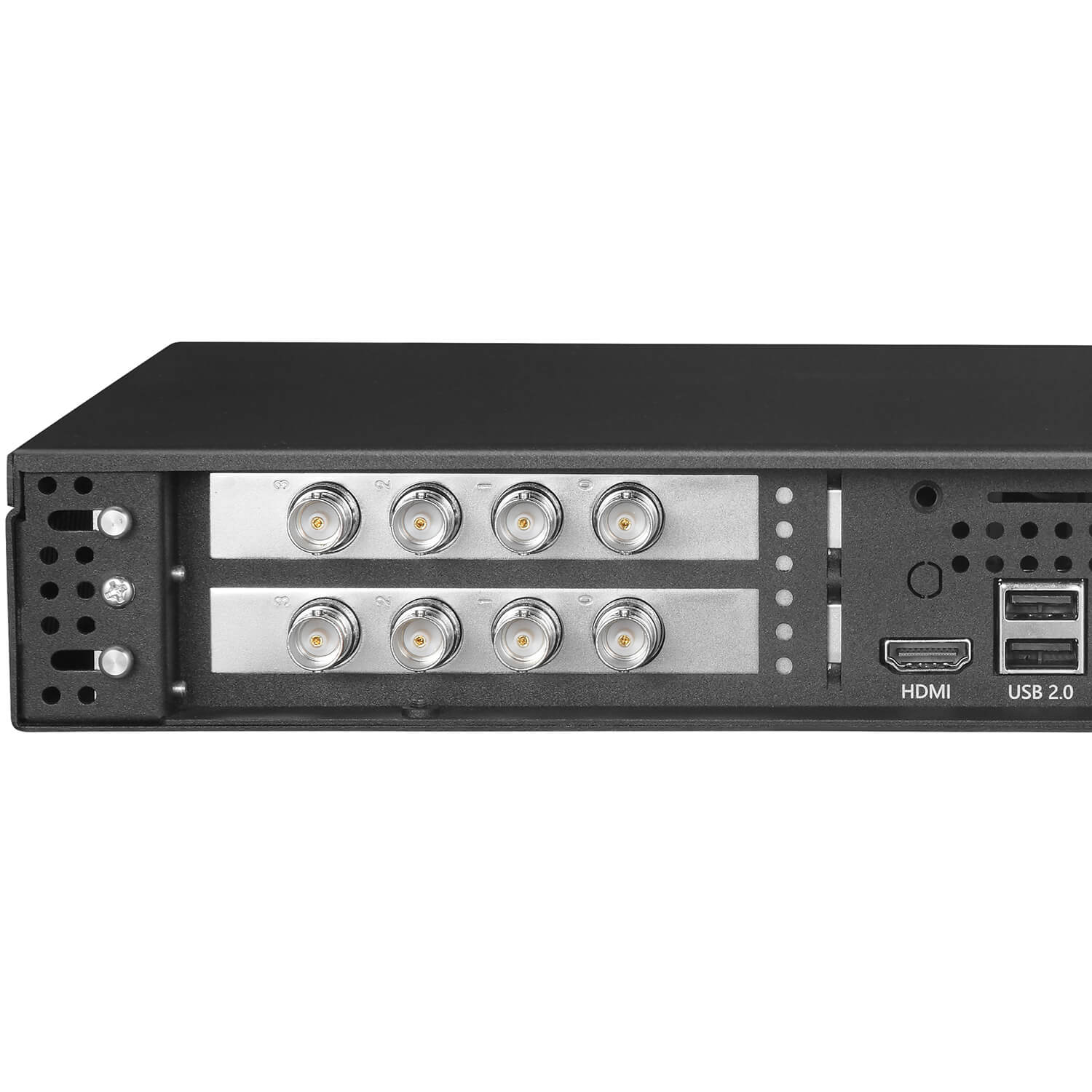

    Input 8x SDI (BNC Female)
    Output IP Streams
    Video
    Video Input SD-SDI (SMPTE 259): 480i, 576i
    HD-SDI (SMPTE 292): 1920x1080i_60/50hz, 1920x1080p_30/25/24hz, 720p_60/50hz
    3G-SDI (SMPTE 242): 1920x1080p_60/50hz Level A & Level B
    Video Encode Size auto,1920x1080,1680x1056,1280x720,1024x576,
    720x576, 720x480, 704x576, 640x480, 640x360
    Video Output 1920x1080p@60/50/30/25/24fps, 1280x720p@60/50/30/25fps,
    720x576p@30fps, 640x480p@30fps etc.
    Video Codec H.264, H.265
    Profile H.264: Baseline, Main, High
    H.265: Main
    Level H264: Level 4.2; H265: Level 4.1
    Bitrate Control CBR, VBR, EVBR
    Frame Rate 5 ~ 60fps
    Key Interval (GOP) 5 ~ 180fps
    GOP Structure IPPP
    Bitrate 0.3 ~ 20Mbps
    Color depth 8 bit
    Chroma subsampling 4:2:0
    De-interlace Supported, force to do de-interlace when i (interlace) input
    Audio
    Audio Input SDI audio embedded supports up to 4 stereo audio tracks (8 mono audio channels): channel 1-2, 3-4, 5-6, 7-8
    Audio Codec AAC(LC, HE), MP2
    Audio Bitrate 24/32/44.1/48/64/96/128/160/192/256 Kbps
    Audio Resample 48 kHz/44.1 kHz/32 kHz
    System
    Control web GUI
    Recommended Browser Windows or Linux OS browser (e.g. Google Chrome, Firefox, Microsoft Edge etc.)

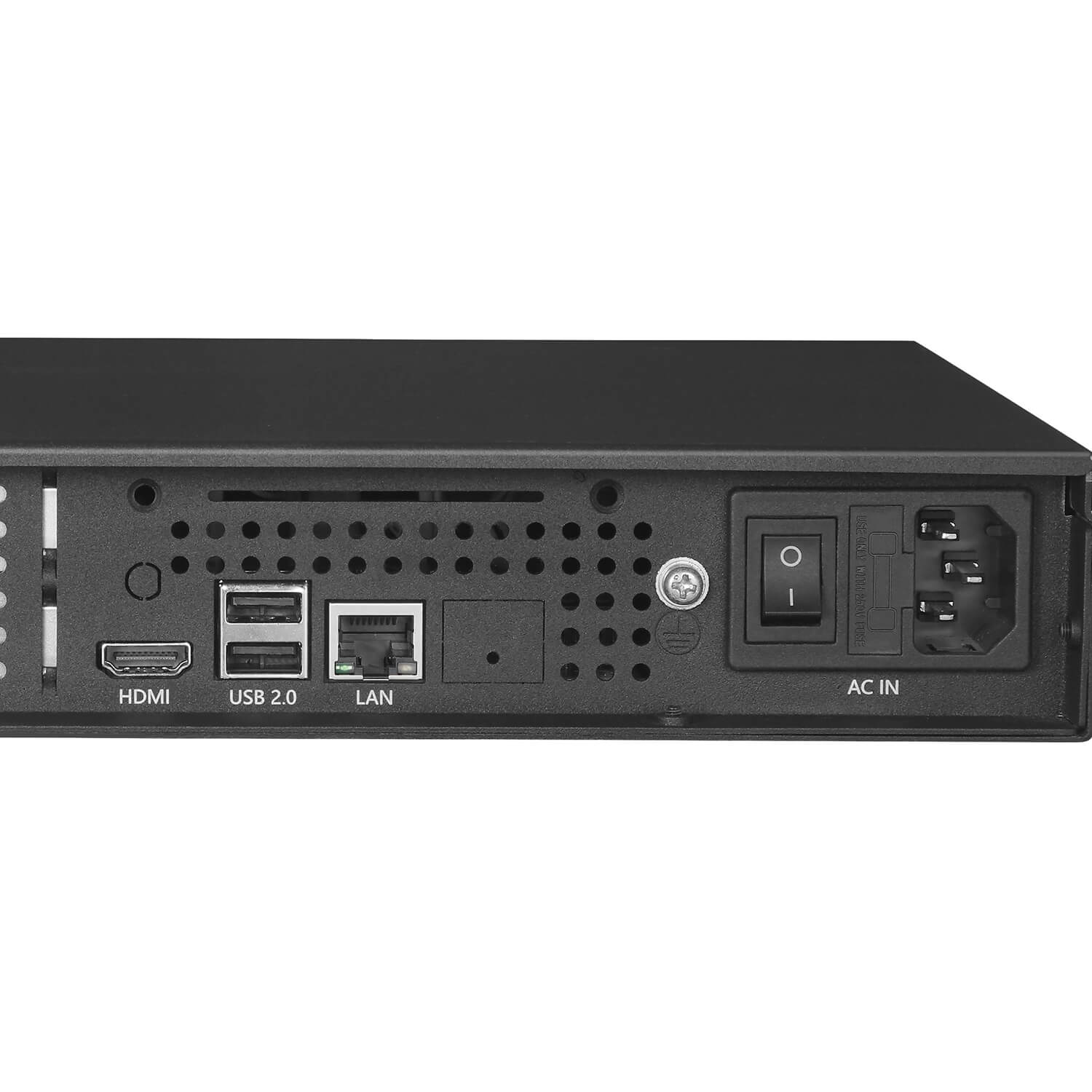

    Ethernet / RJ45 1x 1000M Base-T Ethernet Interface
    Protocols HTTP, HLS (m3u8), UDP multicast, SRT caller & listener, RTMP & RTMPS
    General Spec.
    Power Consumption Less than 30 Watt
    Net Weight 2.73kg
    Dimension 313mm x 220mm x 48mm
    Working Environment Operating temperature: 0 to 60 °C
    Storage temperature: –20 to 70 °C
    Relative Humidity: 5% to 90% (non-condensing)

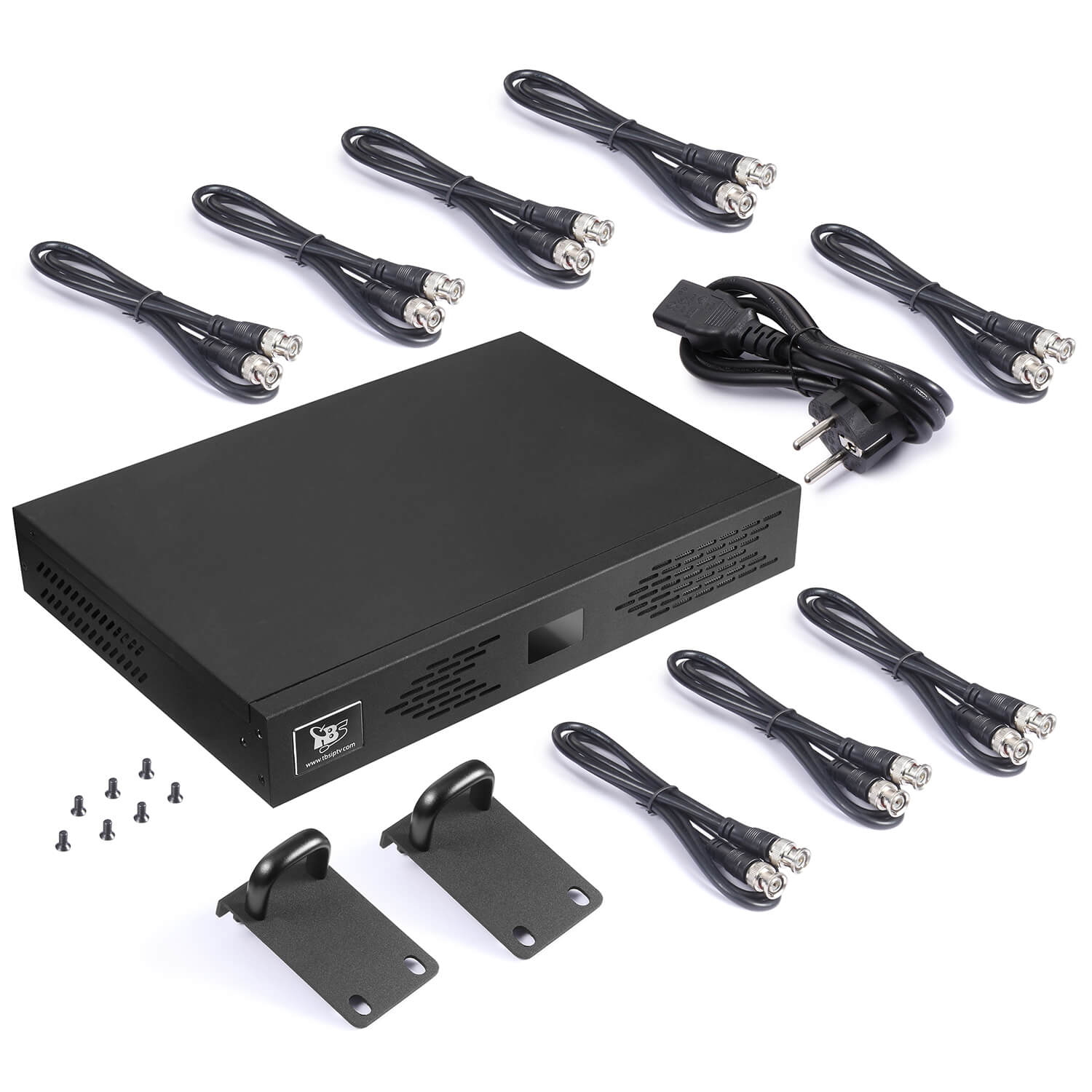

    Package Contents 1x TBS2808SDI Video Encoder
    1x AC Power Cable
    8x SDI Cable
    2x Mounting Brackets
