    TBS2808X 8 Channels 4K 30Hz H.265 / H.264 HDMI Video Encoder

    TBS2808X is a professional 8 channels 4K HDMI video encoder that enables high-quality content streaming and display. It supports 8 channels 4K@30Hz HDMI input with real-time 4K@30FPS encoding.

    TBS2808X can stream to popular online social media platforms including YouTube, Facebook and Twitch as well as custom RTMP/RTMPS servers. It supports HTTP, HLS (M3U8), SRT (caller/ listener modes), UDP multicast, RTMP/RTMPS protocol output.

    TBS2808X enables HD content capture/recording in H.265/H.264 formats. Its web-based GUI control interface facilitates seamless channel switching and parameter adjustment, enhancing television broadcast operations.

    Features

    • 8-CH 4K@30Hz HDMI input and encoding
    • Real-time H.265/HEVC and H.264/AVC encoding at 4K@30FPS
    • Multi-protocol streaming outputs simultaneously
    • Compliant with HTTP, HLS(M3U8), SRT(caller / listener modes), UDP multicast, RTMP/RTMPS protocols
    • Supports OSD overlay, including adding your own text and logo to video.
    • HDCP 1.4 compliance for protected content handling.
    • User-friendly Web-based GUI for remote control
    • Single LAN port output with efficient bandwidth management.

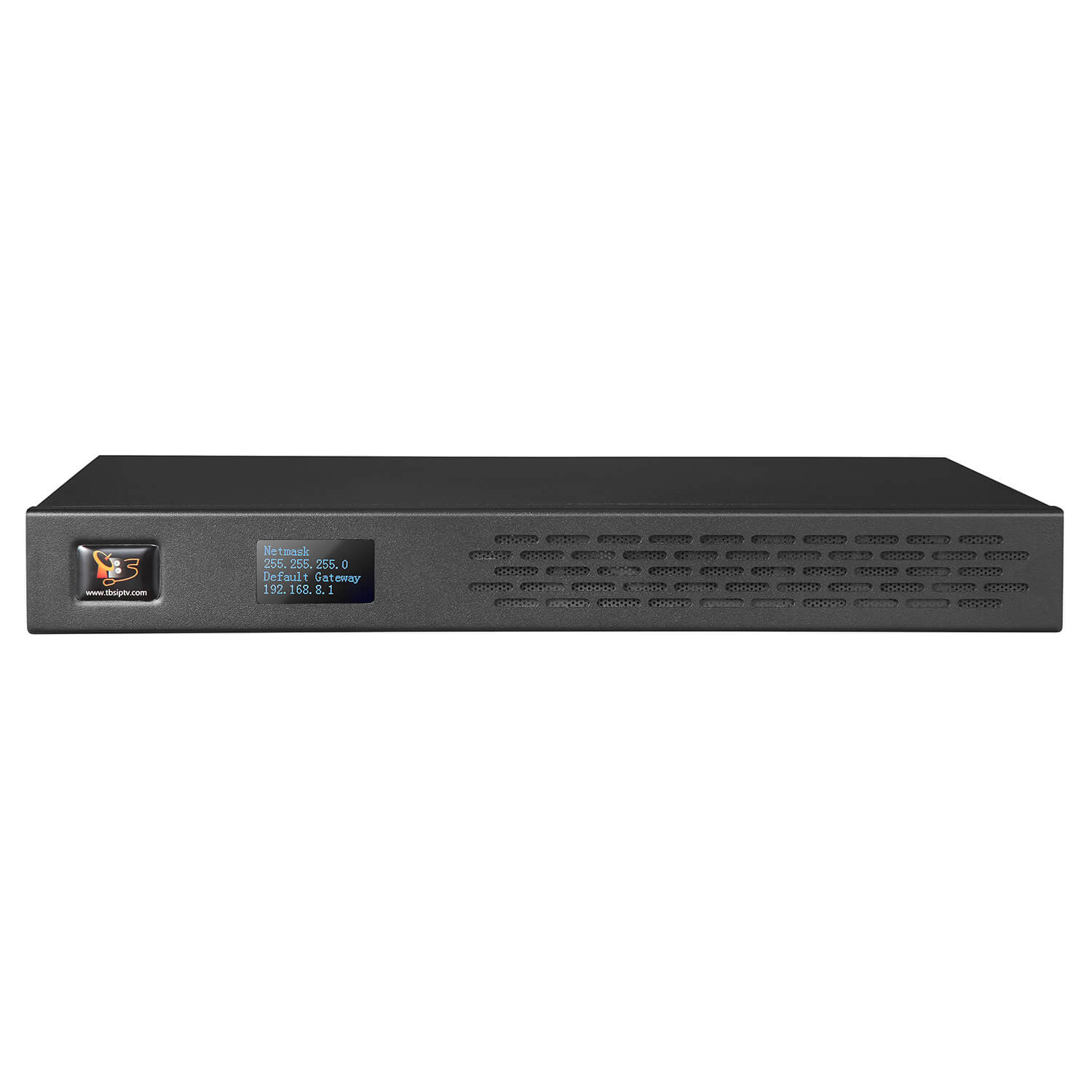

    • OLED display for quick access to IP address and system info.
    • 7 x 24h stable operation

    Applications

    • Digital TV broadcasting system
    • IPTV & OTT system
    • Datacasting and monitoring
    • Live TV encoding and streaming
    • Digital signage project
    • Remote video conference

    IPTV

    Live Streaming to Social Media

    Why choose TBS2808X?

    8 Channels Real 4K@30FPS Encoder
    • True 4K Ultra HD Encoding: Native 3840×2160p@30fps real-time encoding in H.265/H.264 format
    • Advanced Encoding Efficiency: Intelligent compression technology cuts 4K bandwidth by 50% without quality loss
    • Professional Live Streaming: Capture and deliver 4K live streaming over public internet with broadcast-grade quality

    User-Friendly Management

    • The Web-based Kylone GUI allows users to monitor the real-time status of TBS2808X 4K HDMI encoder, configure encoding profiles, manage OSD overlay and other functions.

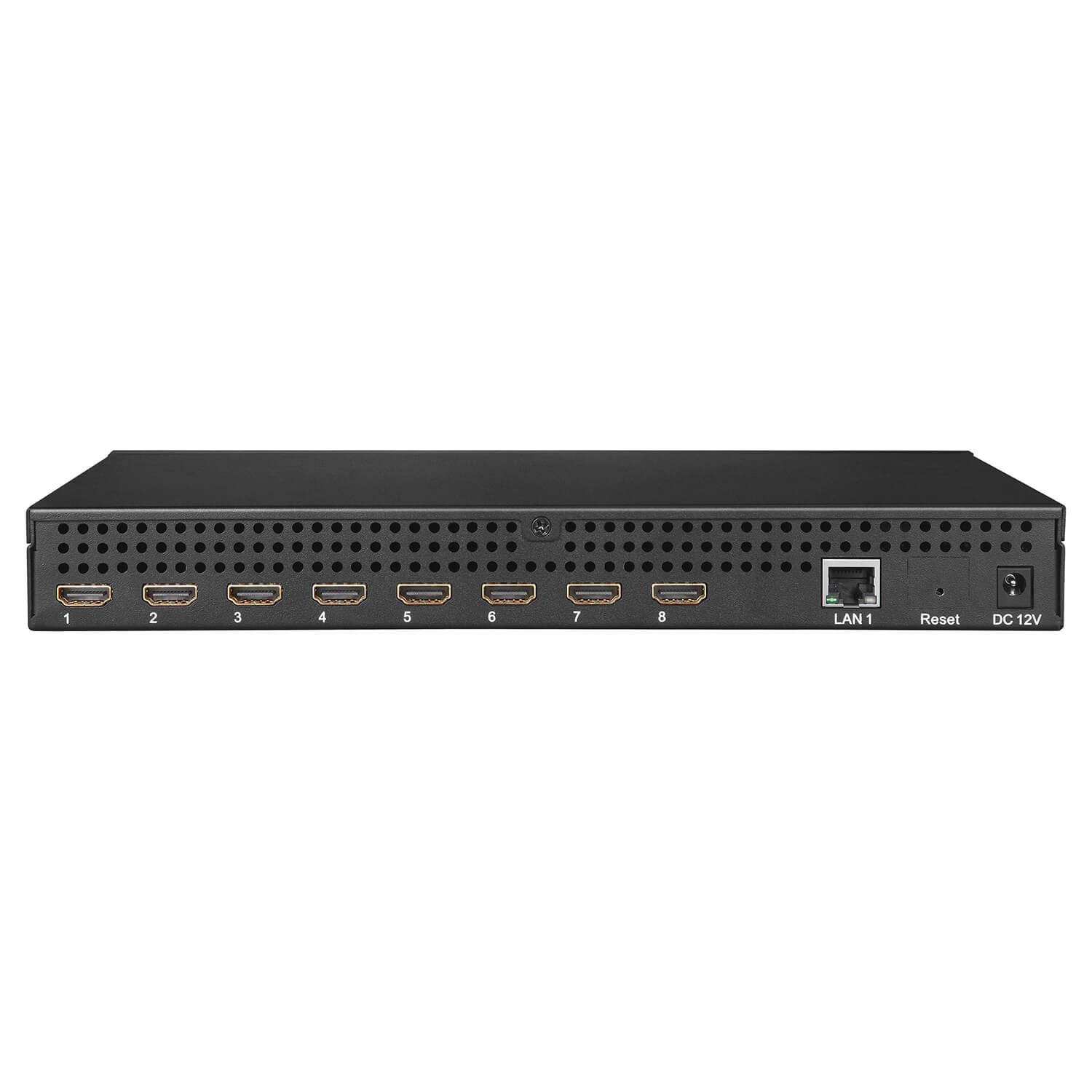

    • Space-efficient design simplifies system integration: TBS2808X supports 8-channel HDMI input with a single LAN port output.
    • Unified management interface reduces cabling requirements.

    Specification

    Model TBS2808X
    Product Name 8 Channels 4K 30Hz H.265/H.264 HDMI Video Encoder
    HDCP HDCP 1.4 supported
    Input
    Video Input 8x HDMI 1.4a
    Audio Input HDMI embedded audio
    Power Input DC 12V/4A
    Output
    Power Consumption Less than 42 Watt
    Video
    Video Input 3840x2160p_30hz, 1920x1080p_60/50/30/25/24hz, 1920x1080i_60/50hz,
    1280x720p_60/50hz, 720x576p/i, 720x480p/i etc.
    Encode Size 3840x2160, 2560x1600, 2560x1440, 2048x1152, 1920x1080, 1680x1056
    1280x720, 1024x576, 720x576, 720x480, 704x576, 640x480, 640x360, auto
    Video Codec H.264/H.265
    Profile H.264: Baseline, Main, High
    H.265: Main
    Level H264: Level 4.2; H265: Level 4.1
    Bitrate Control CBR/VBR/EVBR
    Frame Rate 5 ~ 60fps
    Key Frame (GOP) 5 ~ 180fps
    GOP Structure IPPP
    Video Bitrate 0.3 ~ 20 Mbps
    Color depth 8 bit
    Chroma subsampling 4:2:0
    De-interlace Supported: force to do de-interlace when i (interlace) input
    Output Protocol HTTP, HLS(M3U8), SRT (Caller, Listener), UDP multicast, RTMP/RTMPS
    Audio
    Audio Codec AAC-LC, AAC-HE, MP2
    Audio Resample 48 kHz/44.1 kHz/32 kHz
    System
    Ethernet / RJ45 1x 1000 Base-T Ethernet interface
    OS Linux
    Control Web GUI
    Recommended Browser Google Chrome, Firefox, Microsoft Edge, Safari etc.
    General Spec.
    Working Environment Operating temperature: 0 to 40 °C
    Storage temperature: –20 to 70 °C
    Relative Humidity: 5% to 90% (non-condensing)
    Dimension 290mm x185mmx 35mm
    Net Weight 1.68kg

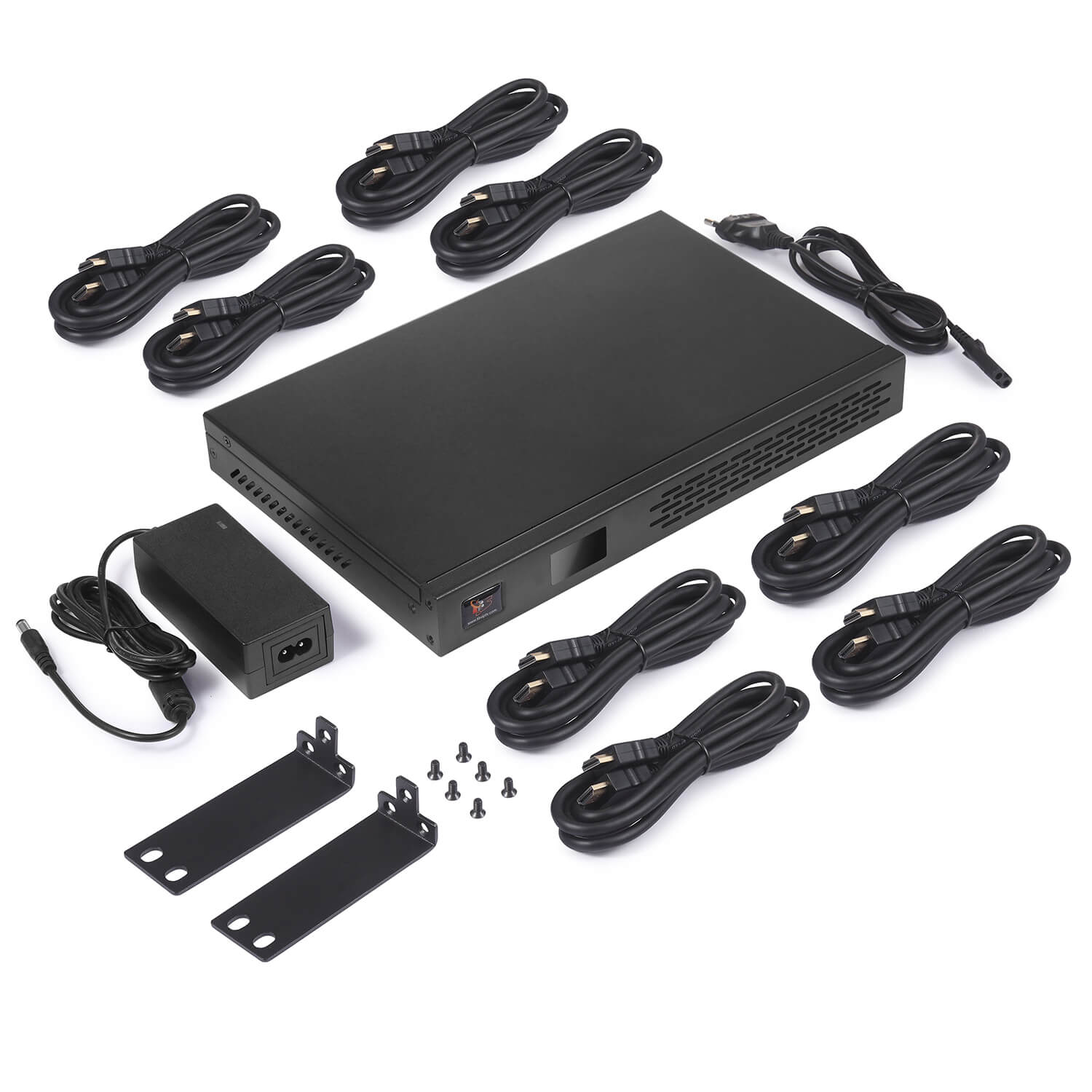

    Package Contents 1x TBS2808X Video Encoder
    1x Power Adapter
    8x HDMI Cable
    2x Mounting Brackets
