    TBS2812 1U 12 Channels 4K H.265 / H.264 HDMI Video Encoder

    TBS2812 is a professional 1U 12 channels 4K HDMI Video Encoder that enables high-quality content streaming and display. It supports up to 4K@30Hz HDMI input and can stream content to various popular online platforms such as YouTube, Facebook, Ustream, Twitch, or custom specified RTMP/RTMPS servers. Besides, it supports output in various protocols including HTTP, HLS(M3U8), RTSP, SRT, UDP/RTP unicast & multicast, RTMP/RTMPS, up to 6 protocols at the same time.

    TBS2812 enables you to capture and record HD content in H.265/H.264 format from PlayStation and digital video cameras. Moreover，it provides a flexible web UI for seamless channel switching and configuration adjustments, which greatly enhancing the television viewing experience.

    Features

    • Supports H.265/HEVC and H.264/AVC compression
    • Supports up to 12-CH 4K@30fps HDMI input and 12-CH 4k@30fps encode
    • Multiple protocol outputs simultaneously
    • Supports HTTP, HLS(M3U8), RTSP, SRT, UDP/RTP unicast & multicast, RTMP/RTMPS output
    • Single LAN port output and high-efficient management
    • Support HDCP 1.4
    • Flexible and friendly webpage control

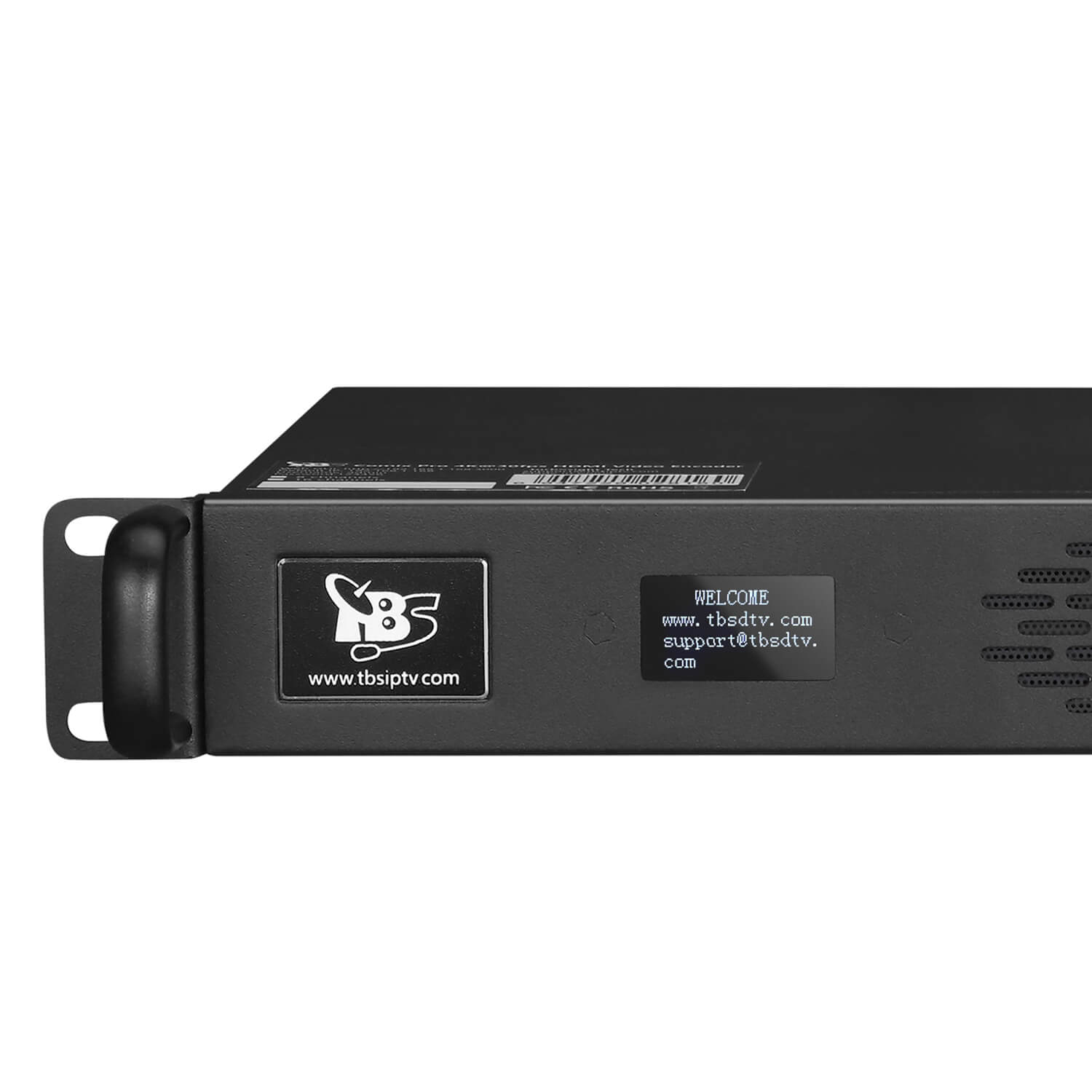

    • OLED display for IP information, encode status etc.

    Applications

    • Digital TV broadcasting system
    • IPTV & OTT system
    • Datacasting and monitoring
    • Live TV encoding and streaming
    • Digital signage project
    • Remote video conference

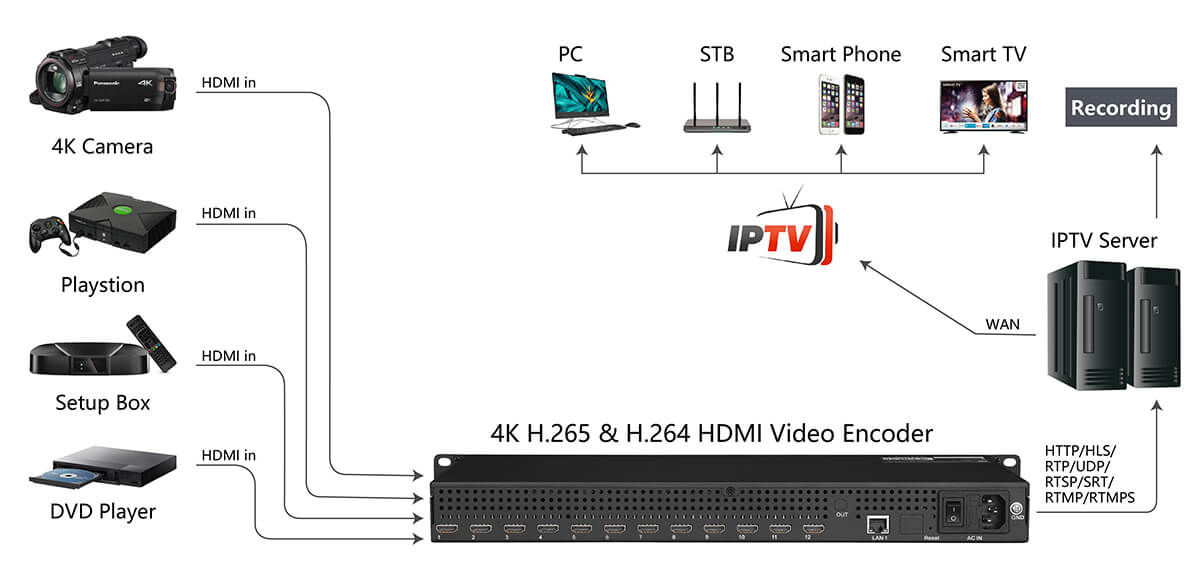

    IPTV
    Live streaming to social media

    Why choose TBS2812?

    Supports 12 channels real 4K@30Hz encode
    • 3840x2160p@30fps(H.265), real 4K encode
    • Capture & Deliver Live Video in 4K Ultra HD over Public Internet
    • Real-time encoder supporting resolutions up to 4K with H.264/H.265 encoding.
    • Efficient encoding leads to bandwidth savings, even at high resolutions.

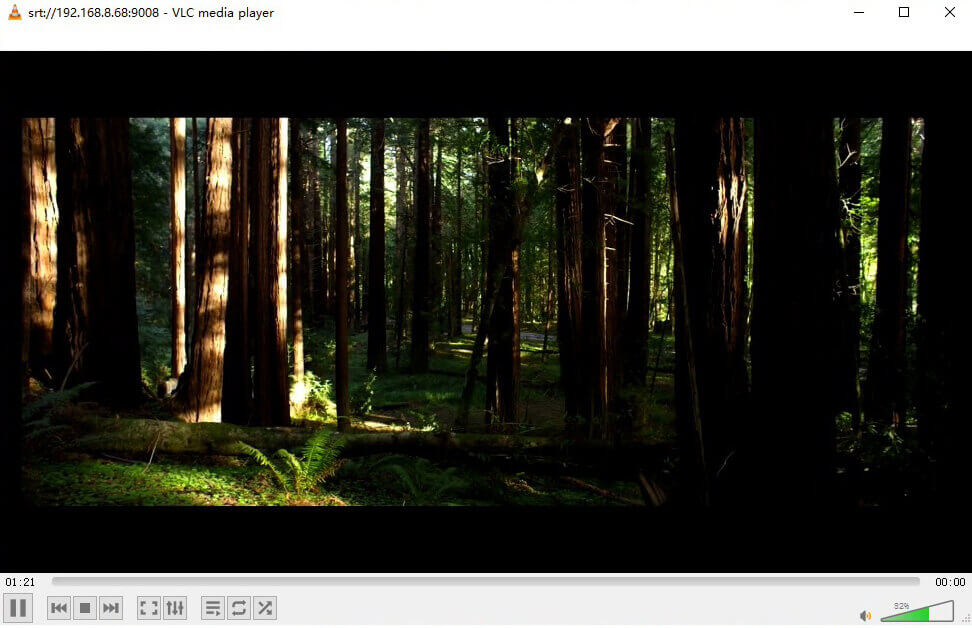

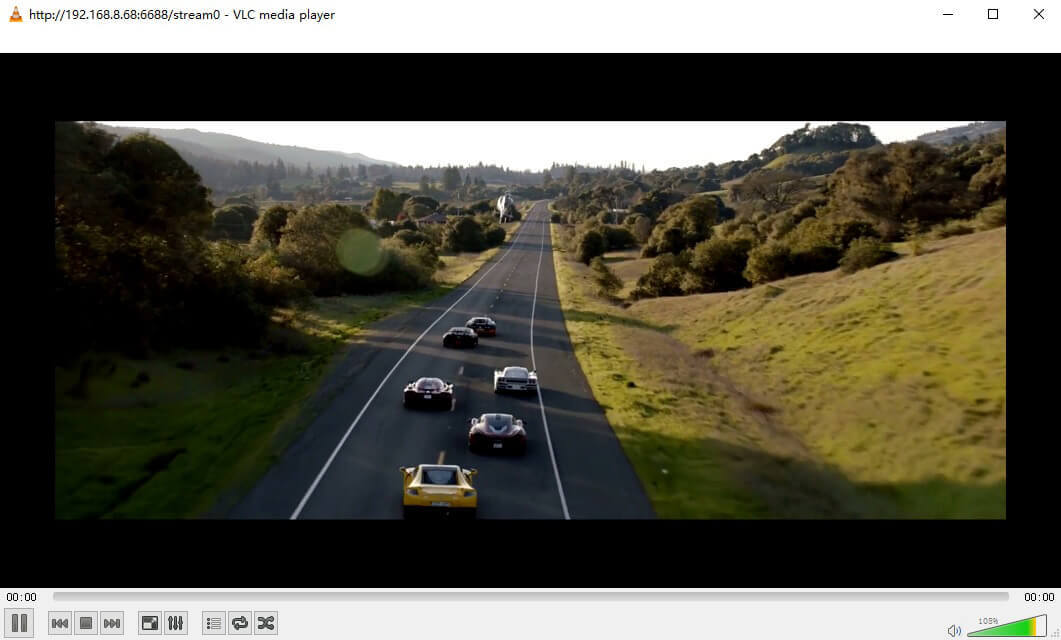

    Multiple protocol outputs simultaneously
    • Compliant with HTTP/HLS(M3U8)/RTSP/SRT, RTP/UDP /Unicast &Multicast, RTMP/RTMPS
    • Each channel has multiple protocols for outputting

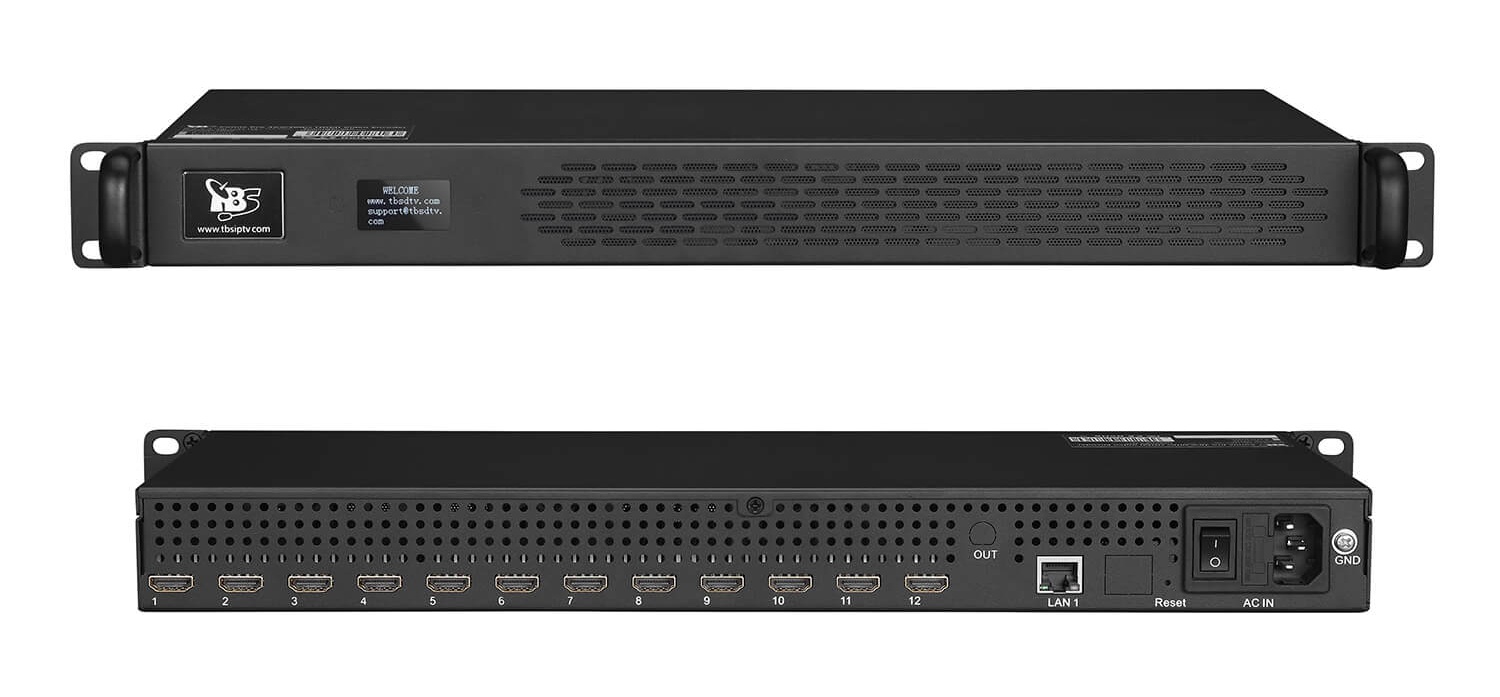

    Single LAN port output and high-efficient management

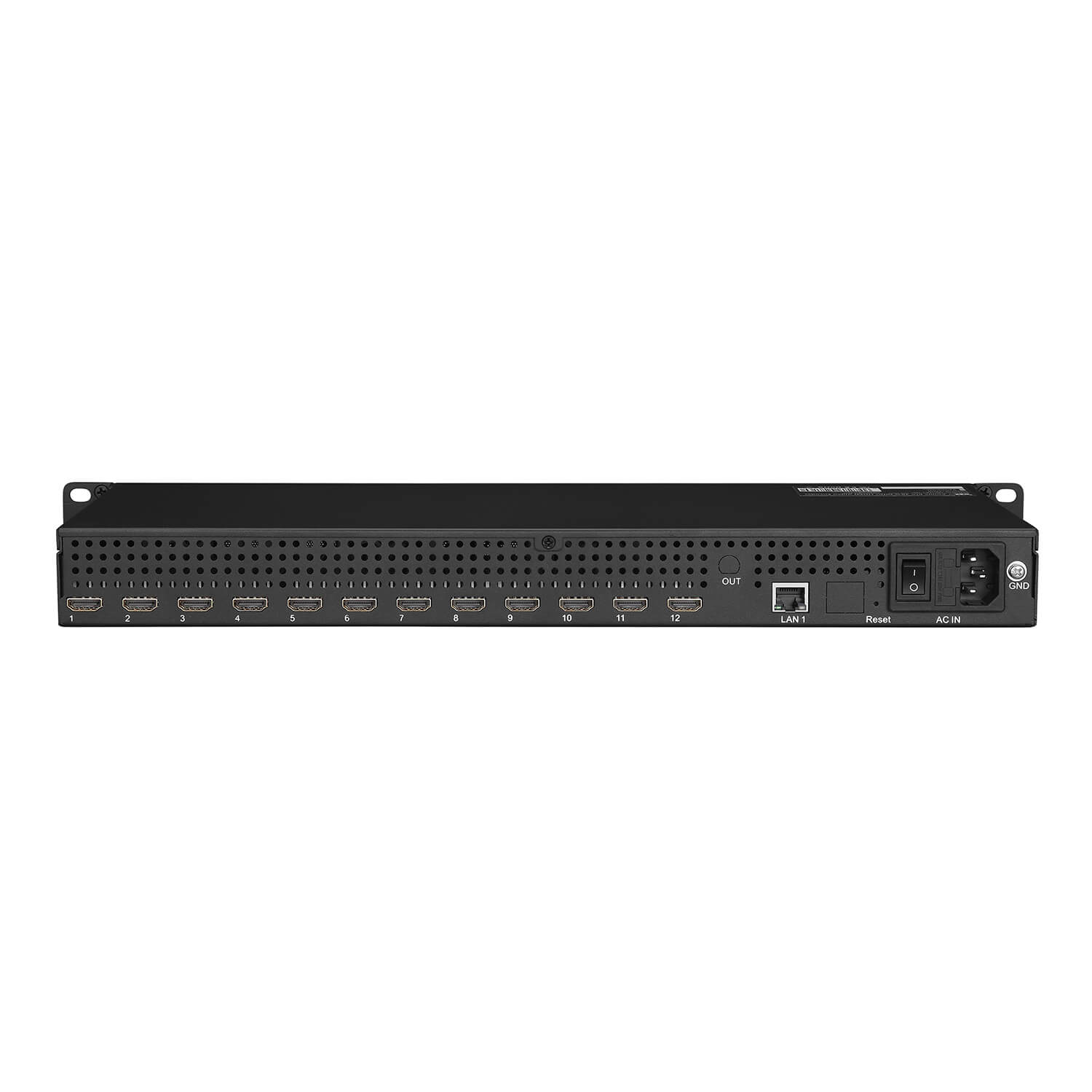

    • TBS2812 supports multiple HDMI inputs with only one LAN port for output and management, which greatly save source and space for you.

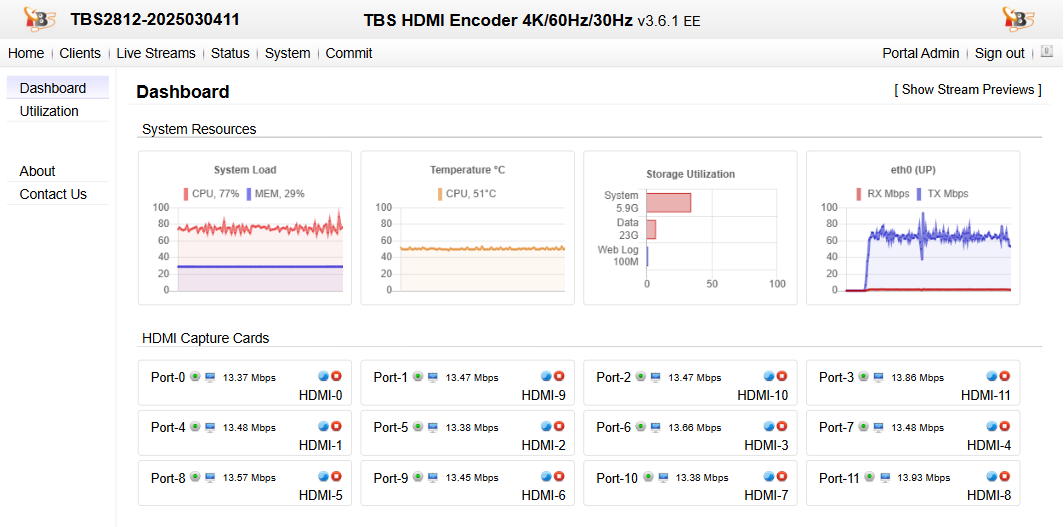

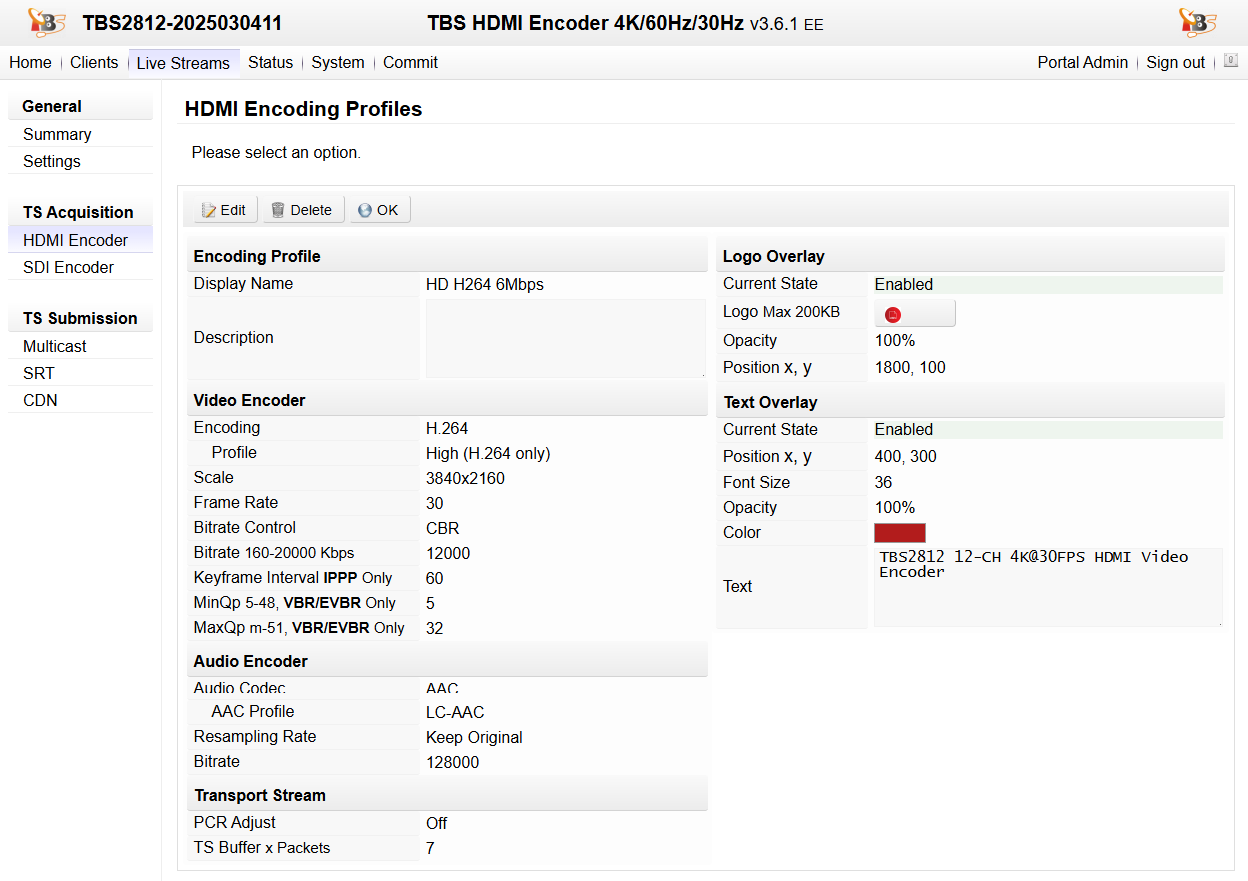

    • Flexible and friendly Web UI let you manage TBS2812 encoder easily at anytime.

    Specification

    Model TBS2812
    HDCP HDCP 1.4 supported
    Input

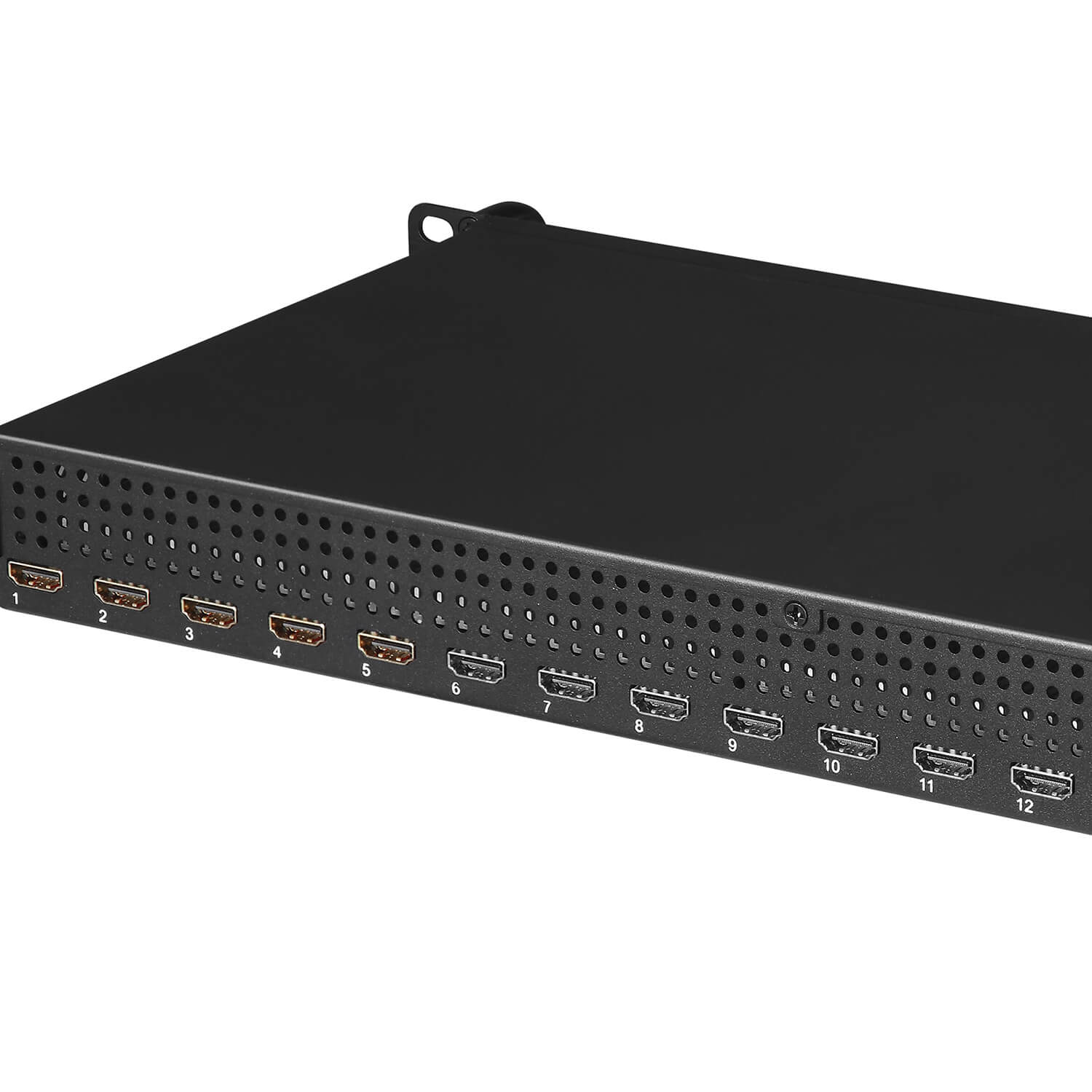

    Video Input 12x HDMI 1.4a
    Audio Input HDMI embedded audio
    Video
    Video Input 3840x2160p_30hz, 1920x1080p_60/50/30/25/24hz, 1920x1080i_60/50hz, 1280x720p_60/50hz, 720x576p/i, 720x480p/i, and etc.
    Encode Size 3840x2160, 2560x1600, 2560x1440, 2048x1152, 1920x1080, 1680x1056, 1280x720, 1024x576, 720x576, 20x480, 704x576, 640x480, 640x360, auto
    Video Codec H.264/H.265
    Profile H.264: Baseline, Main, High
    H.265: Main
    Level H.264: Level 4.2; H.265: Level 4.1
    Bitrate Control CBR/VBR/EVBR
    Frame rate 5 ~ 60fps
    Key Interval (gop) 5 ~ 180fps
    GOP Structure IPPP
    Bitrate 300 ~ 20000Kbps
    Color depth 8 bit
    Chroma subsampling 4:2:0
    De-interlace Supported: force to do de-interlace when i (interlace) input
    Output Protocol HTTP, HLS(M3U8), RTSP, SRT, UDP/RTP unicast & multicast, RTMP/RTMPS
    Audio
    Audio Codec AAC-LC, AAC-HE
    Audio Bitrate 24000/ 32000/ 44100/ 48000/ 64000/ 96000/ 128000/ 160000/ 192000/ 256000bps
    Audio Resample 48k, 44.1k, 32k
    System

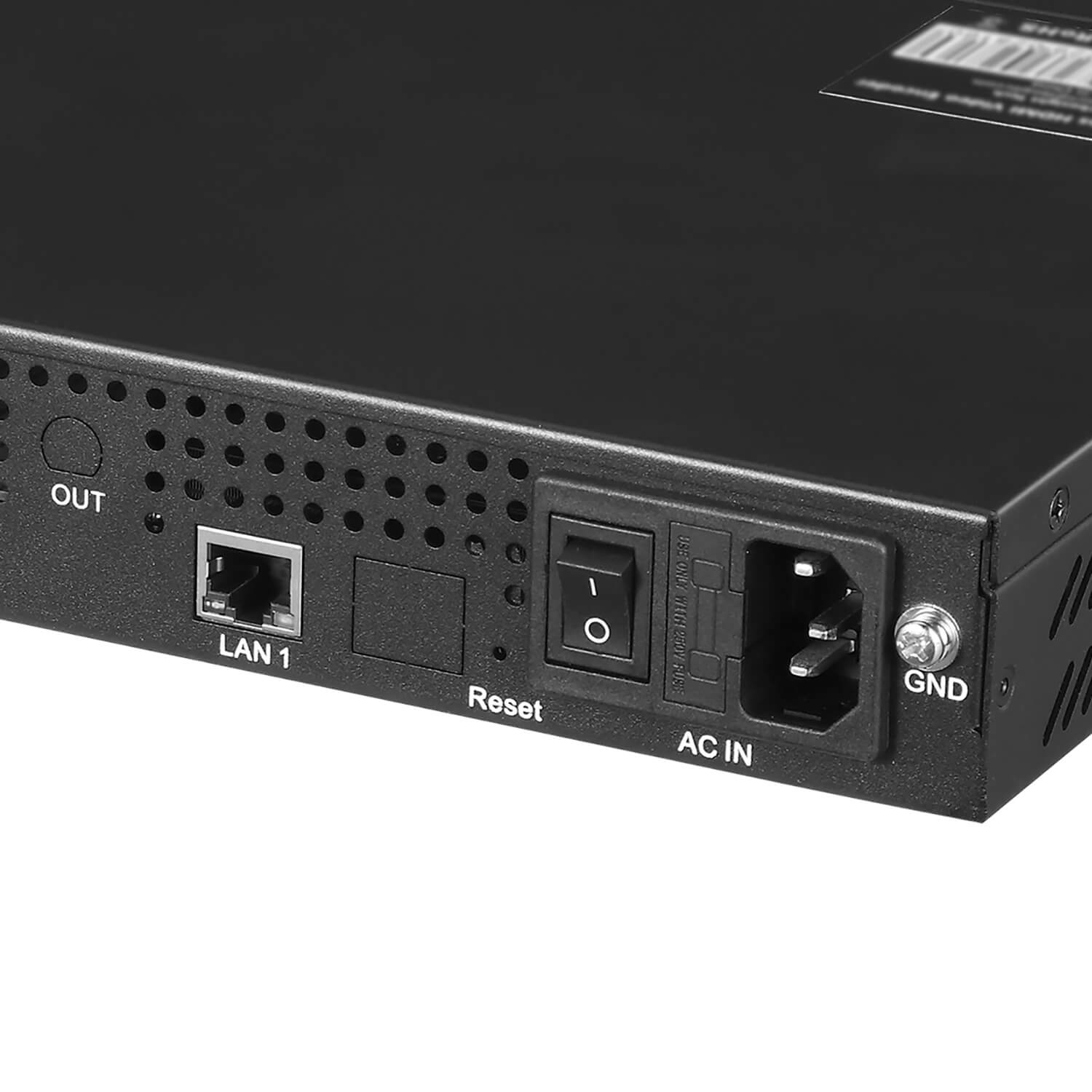

    Ethernet / RJ45 1000 Base-T Ethernet interface
    OS Linux
    Control web GUI
    General Spec.
    Working Environment Operating temperature: 0 to 40 deg C
    Storage temperature: –20 to 70 deg C
    Relative Humidity: 5% to 90% (non-condensing)
    Power Consumption 55 Watt
    Dimension 410mm x 210mm x 44.4mm (1U)
    Net Weight 3.0 KG

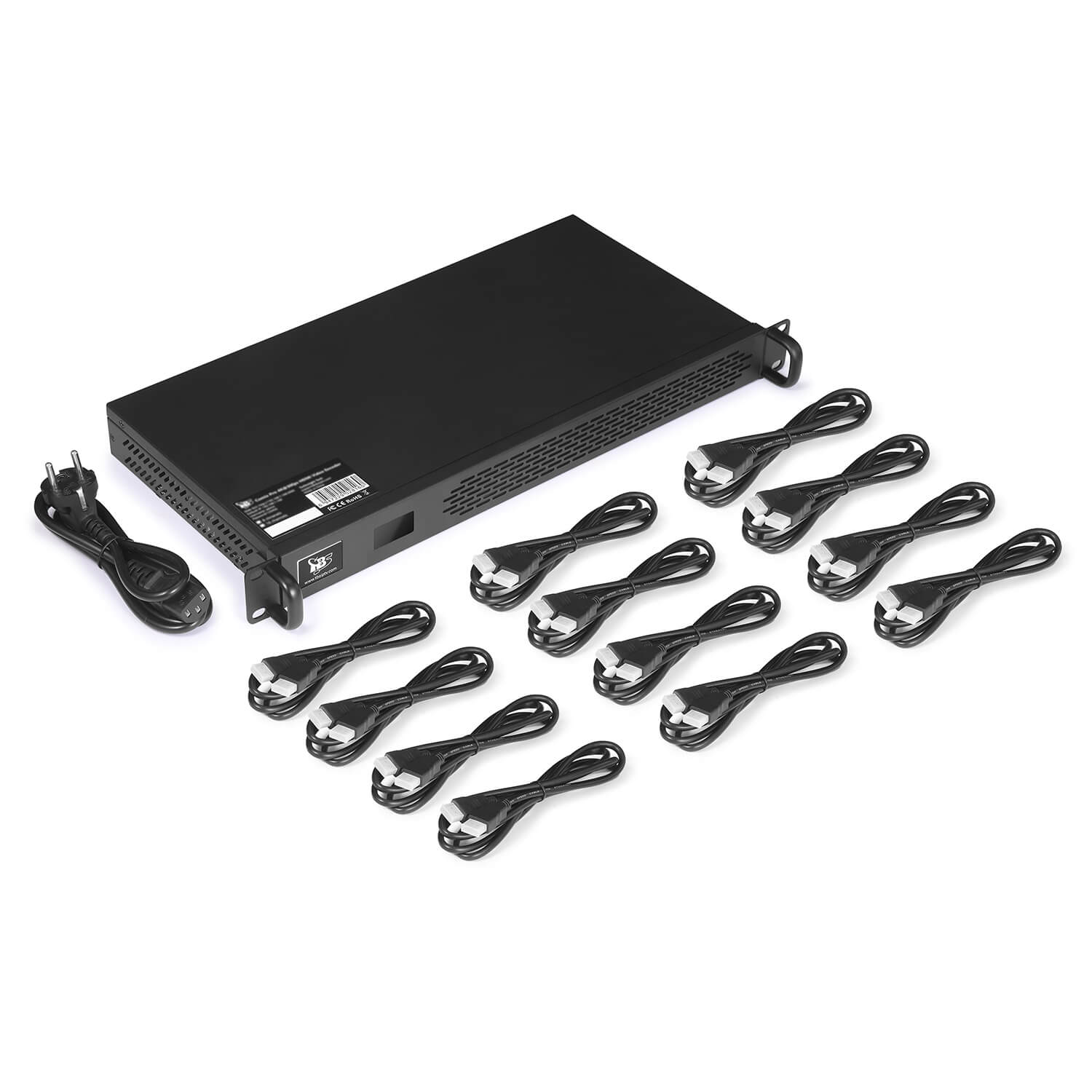

    Package Contents 1x TBS2812 4K@30fps HDMI Video Encoder
    1x AC Power Cable
    12x HDMI Cable
