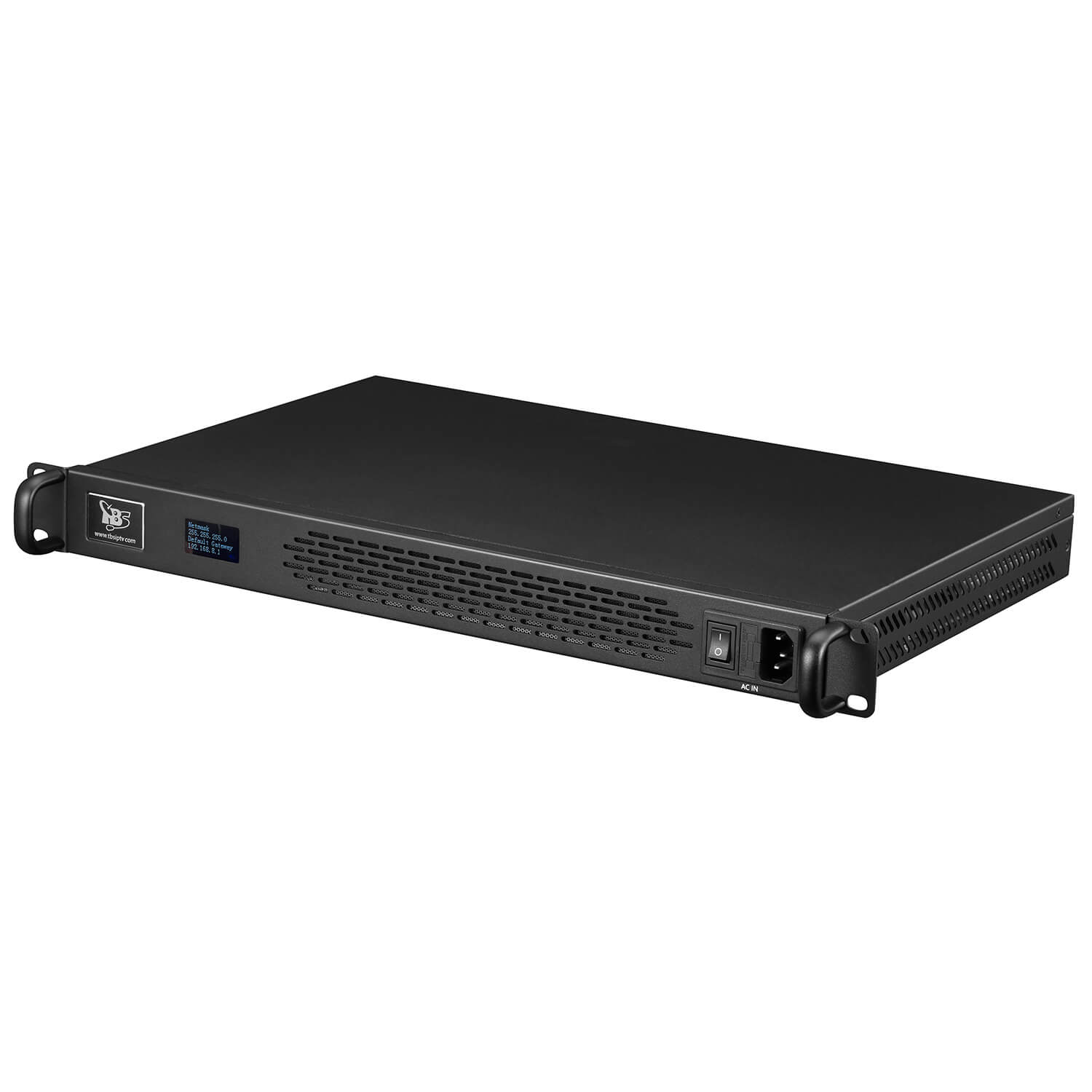

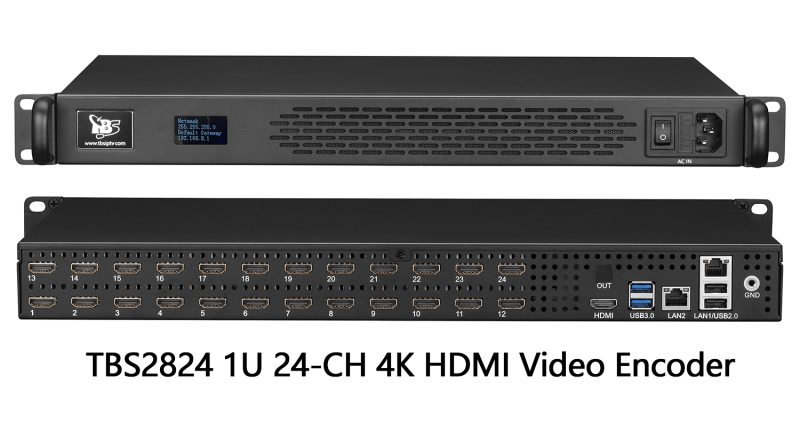

    TBS2824 1U 24 Channels 4K H.265 / H.264 HDMI Video Encoder

    TBS2824 is a professional 1U 24 channels 4K HDMI Video Encoder, which facilitates high-quality content streaming and display. It can handle up to 4K@30Hz HDMI input and has the ability to stream content to numerous popular online platforms like YouTube, Facebook, Ustream, Twitch, or custom-specified RTMP/RTMPS servers. In addition, it supports output in diverse protocols, namely HTTP, HLS(M3U8), RTSP, SRT, UDP/RTP unicast & multicast, RTMP/RTMPS, and can support up to 6 protocols at the same time.

    TBS2824 allows you to capture and record HD content in H.265/H.264 format from PlayStation and digital video cameras. Moreover, it offers a flexible web UI for seamless channel switching and configuration adjustments, which considerably boosts the television viewing experience.

    Features

    • Supports H.265/HEVC and H.264/AVC compression
    • Supports 24-CH 4K@30fps HDMl input and 24-CH 4k@30fps encode
    • Multiple protocol outputs simultaneously
    • Supports HTTP, HLS(M3U8), RTSP, SRT, UDP/RTP unicast & multicast, RTMP/RTMPS output
    • Dual LAN port output and high-efficient management
    • Support HDCP 1.4
    • Flexible and friendly webpage control

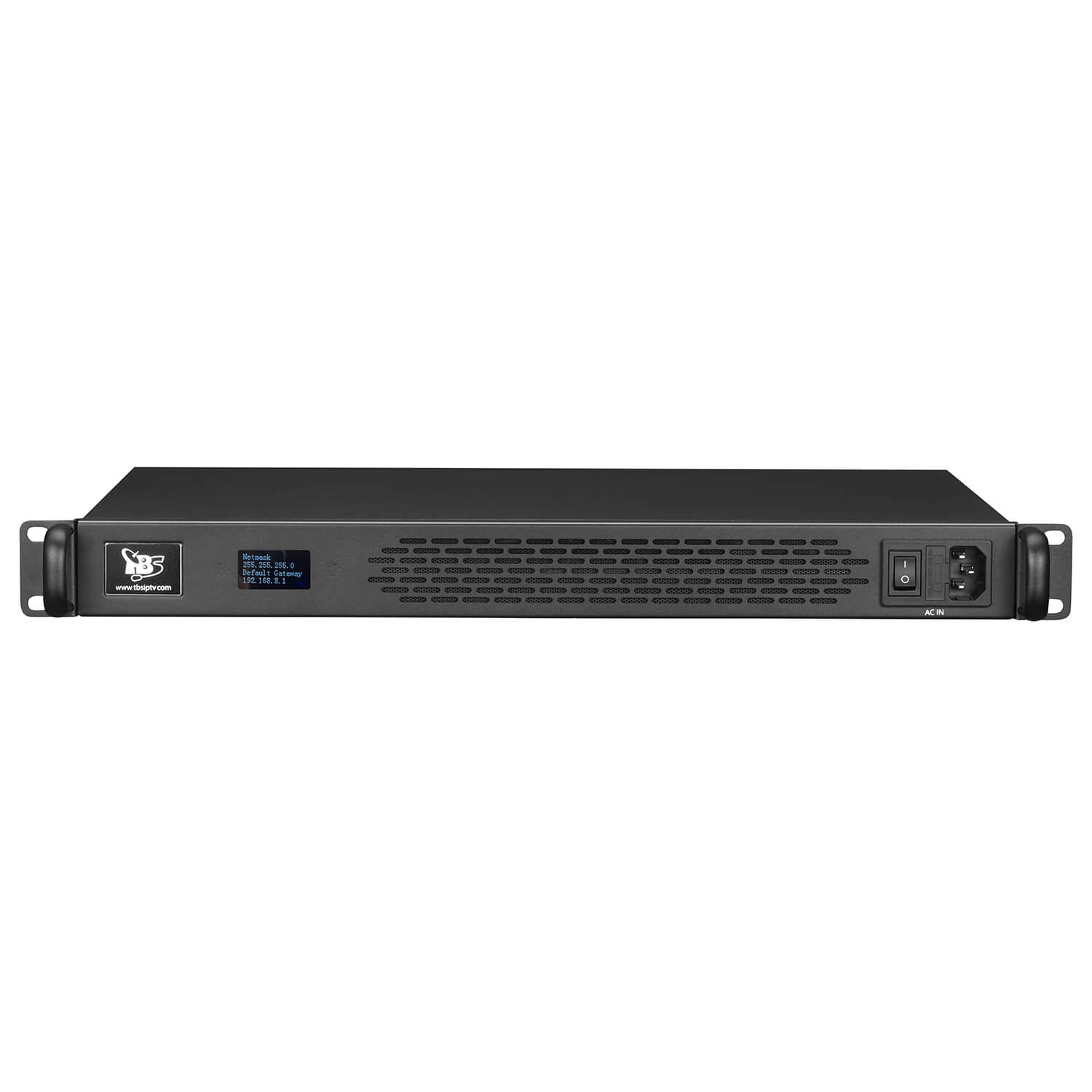

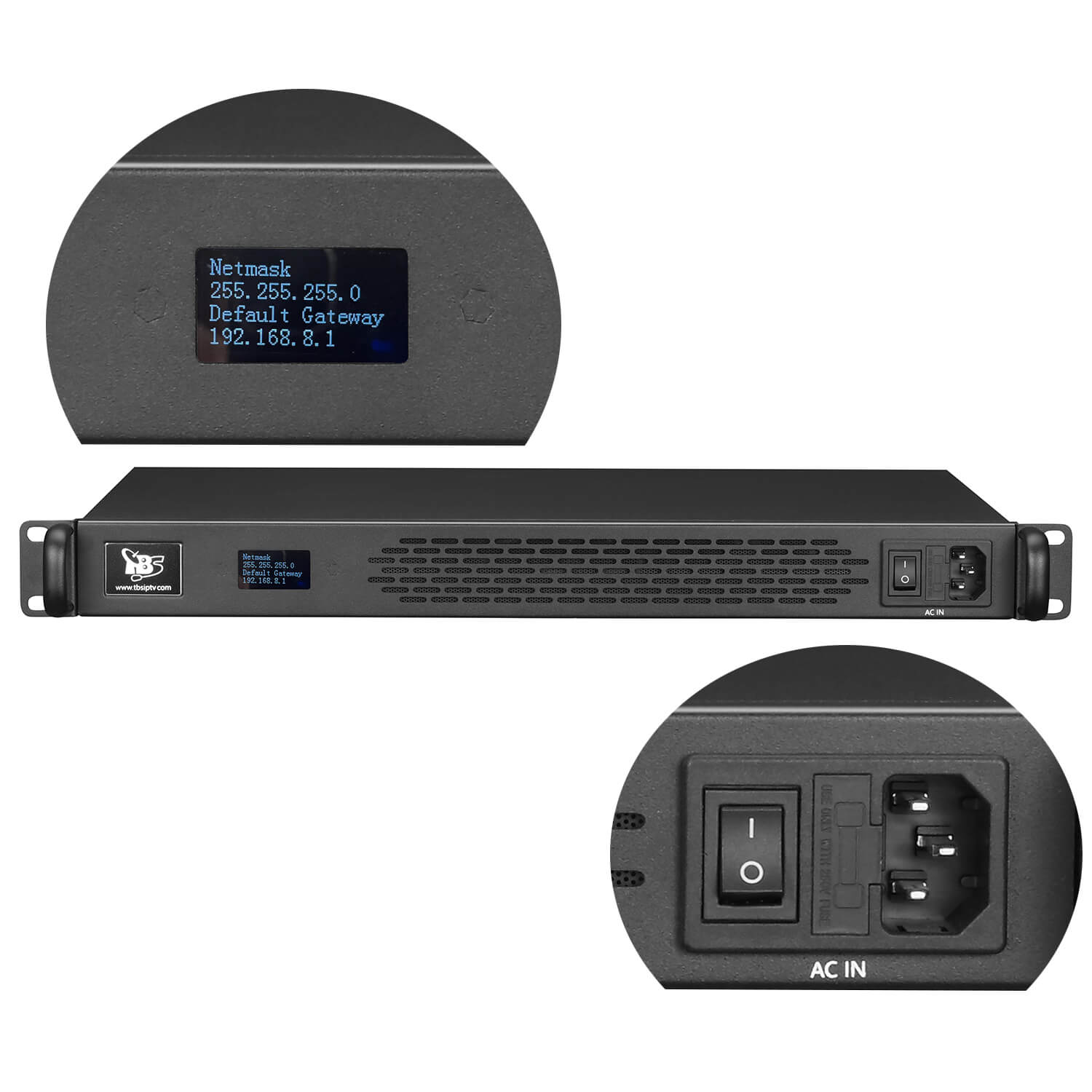

    • OLED display for lP information, encode status etc.

    Applications

    • Digital TV broadcasting system
    • IPTV & OTT system
    • Datacasting and monitoring
    • Live TV encoding and streaming
    • Digital signage project
    • Remote video conference
    IPTV
    Live streaming to social media
    Why choose TBS2824 1U 24 Channels 4K HDMI Encoder?

    Supports 24 channels real 4K@30Hz encode

    • 3840x2160p@30fps(H.265), real 4K encode
    • Capture & deliver live video in 4K Ultra HD over Public Internet
    • Real-time encoder supporting resolutions up to 4K with H.264/H.265 encoding.
    • Efficient encoding results in the saving of bandwidth, even at high resolutions.

    Multiple protocol outputs simultaneously

    • Compliant with HTTP/HLS(M3U8)/RTSP/SRT, RTP/UDP /Unicast &Multicast, RTMP/RTMPS protocols
    • Each channel has multiple protocols for outputting

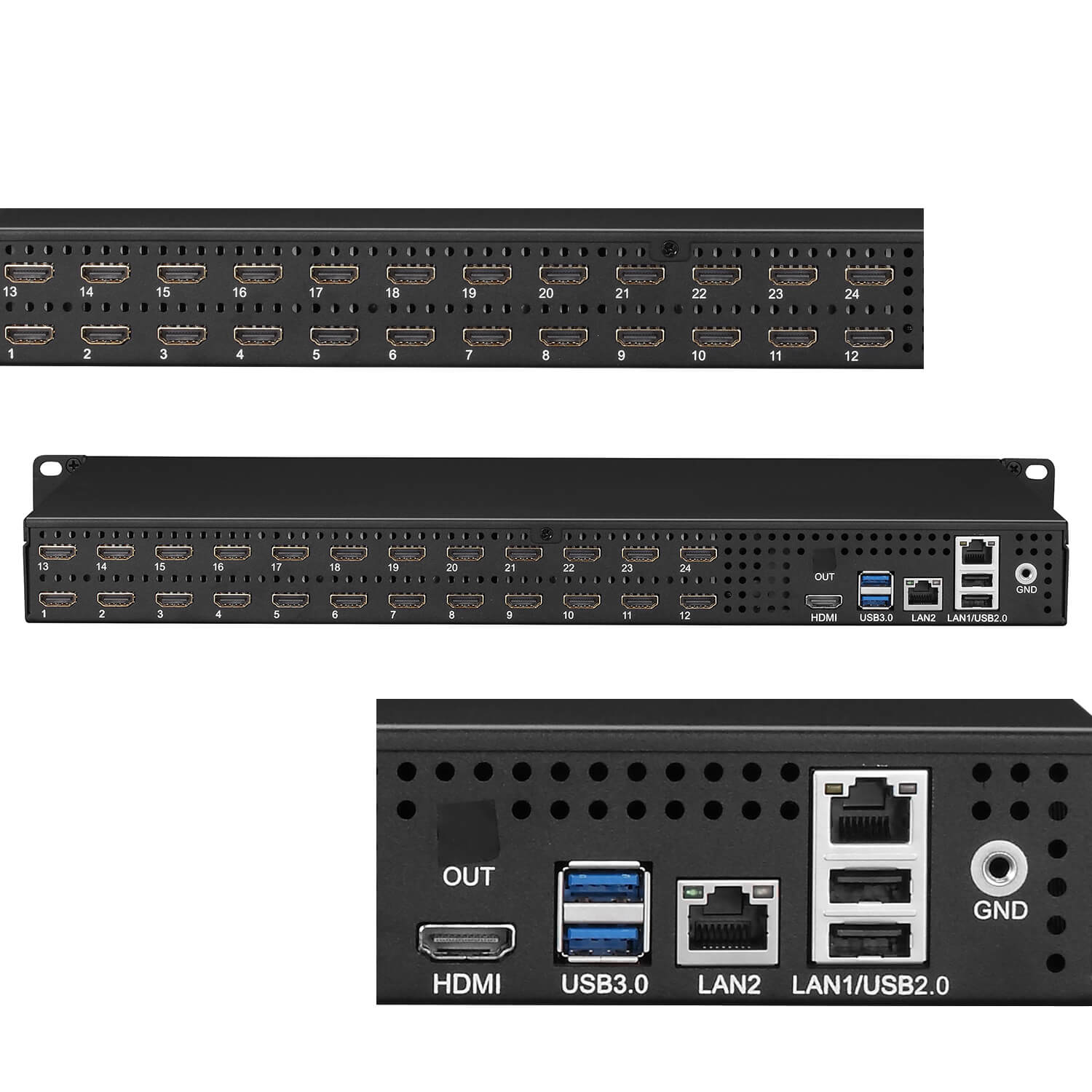

    Dual LAN port output and high-efficient management

    • TBS2824 supports multiple HDMI inputs with only dual LAN port for output and management, which greatly save source and space for you.
    • Flexible and friendly Web UI enables you manage TBS2824 encoder with ease at any time.

    Specification

    Model No. TBS2824
    Model Name 1U 24 Channels 4K@30FPS HDMI Video Encoder
    HDCP HDCP 1.4 supported
    Input

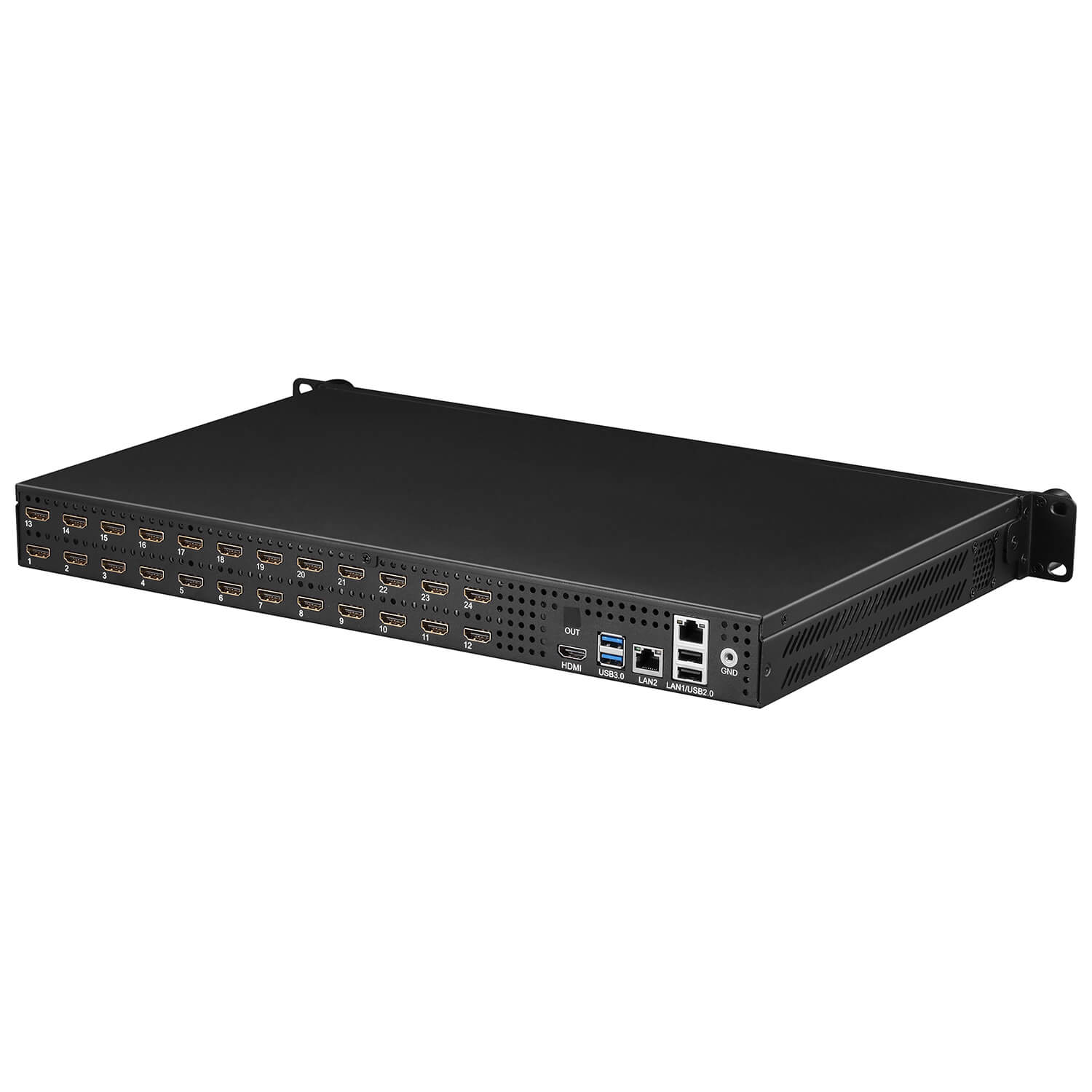

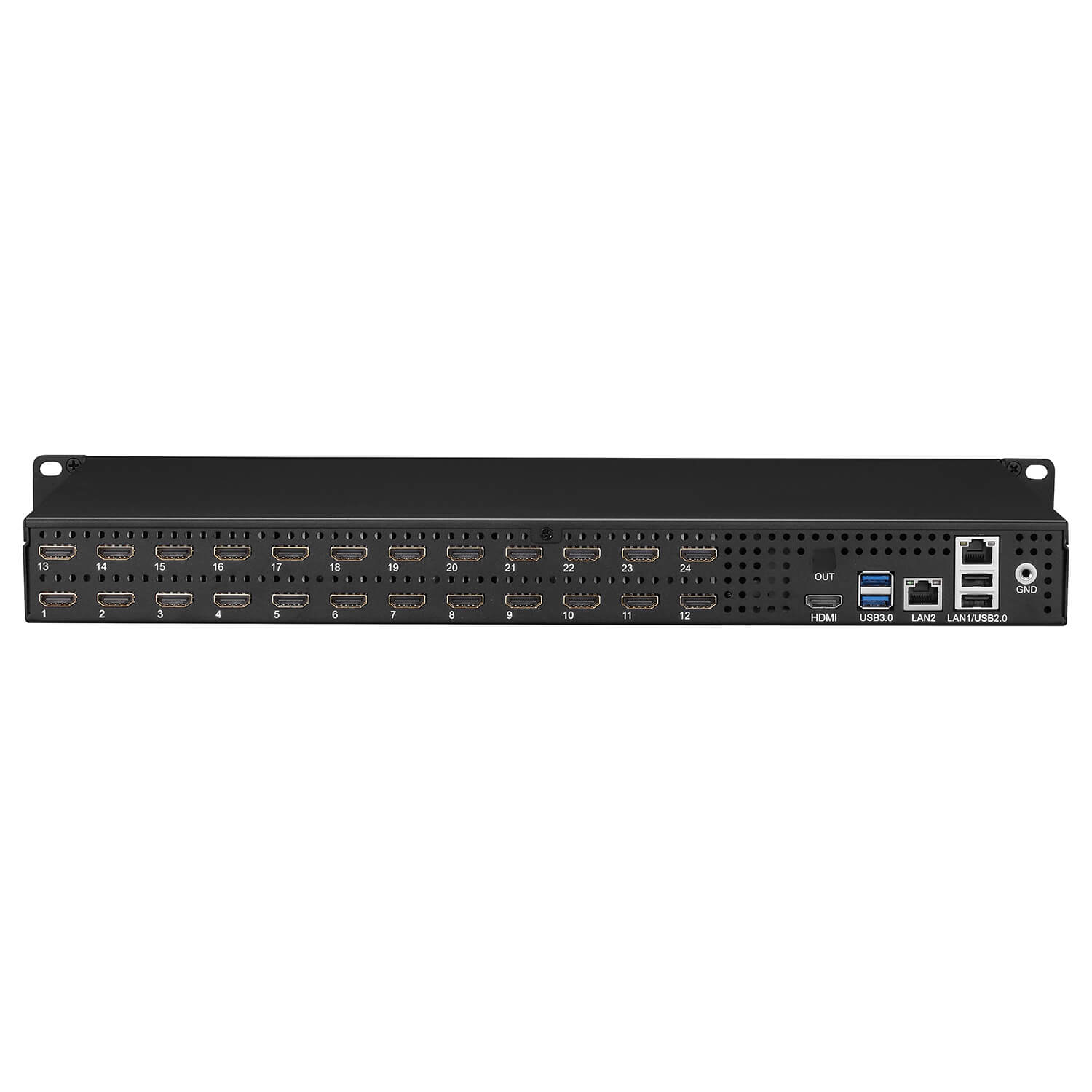

    Video Input 24x HDMI 1.4a
    Audio Input HDMI embedded
    Video
    Video Input 3840x2160p_30hz, 1920x1080p_60/50/30/25/24hz, 1920x1080i_60/50hz,
    1280x720p_60/50hz, 720x576p/i, 720x480p/i etc.
    Encode Size 3840x2160, 2560x1600, 2560x1440, 2048x1152, 1920x1080,
    1680x1056, 1280x720, 1024x576, 720x576, 720x480, 704x576, 640x480, 640x360, auto
    Video Output 3840x2160p@30fps, 1920x1080p@60/50/30/25fps,
    1280x720p@60/50/30/25fps, 720x576p@60fps, 720x480p@60fps etc.
    Video Codec H.264/H.265
    Profile H.264: Baseline, Main, High
    H.265: Main
    Level H264: Level 4.2; H265: Level 4.1
    Bitrate Control CBR/VBR/EVBR
    Frame rate 5~60fps
    Key Interval (gop) 5~180fps
    GOP Structure IPPP
    Bitrate 300 ~ 20000Kbps
    Color depth 8 bit
    Chroma subsampling 4:2:0
    De-interlace Supported, force to do de-interlace when i (interlace) input
    Audio
    Audio Codec AAC-LC, AAC-HE
    Audio Bitrate 24000/32000/44100/48000/64000/96000/128000/160000/
    192000/256000bps
    Audio Resample 48k, 44.1k, 32k
    System
    Control web GUI
    Output Protocols HTTP, HLS(M3U8), RTSP, SRT, RTP/UDP unicast & multicast, RTMP/RTMPS
    Recommended Browser Google Chrome, Firefox, Microsoft Edge etc.
    Ethernet 1x 1000M Base-T Ethernet interface for efficient management
    1x 2.5G Base-T Ethernet interface for data streaming
    General Spec.
    Working Environment Operating temperature: 0 to 40 deg C
    Storage temperature: –20 to 70 deg C
    Relative Humidity: 5% to 90% (non-condensing)
    Power Consumption Less than 120 Watt
    Dimension 430mm x 280mm x 44.4mm
    Net Weight 8.0kg

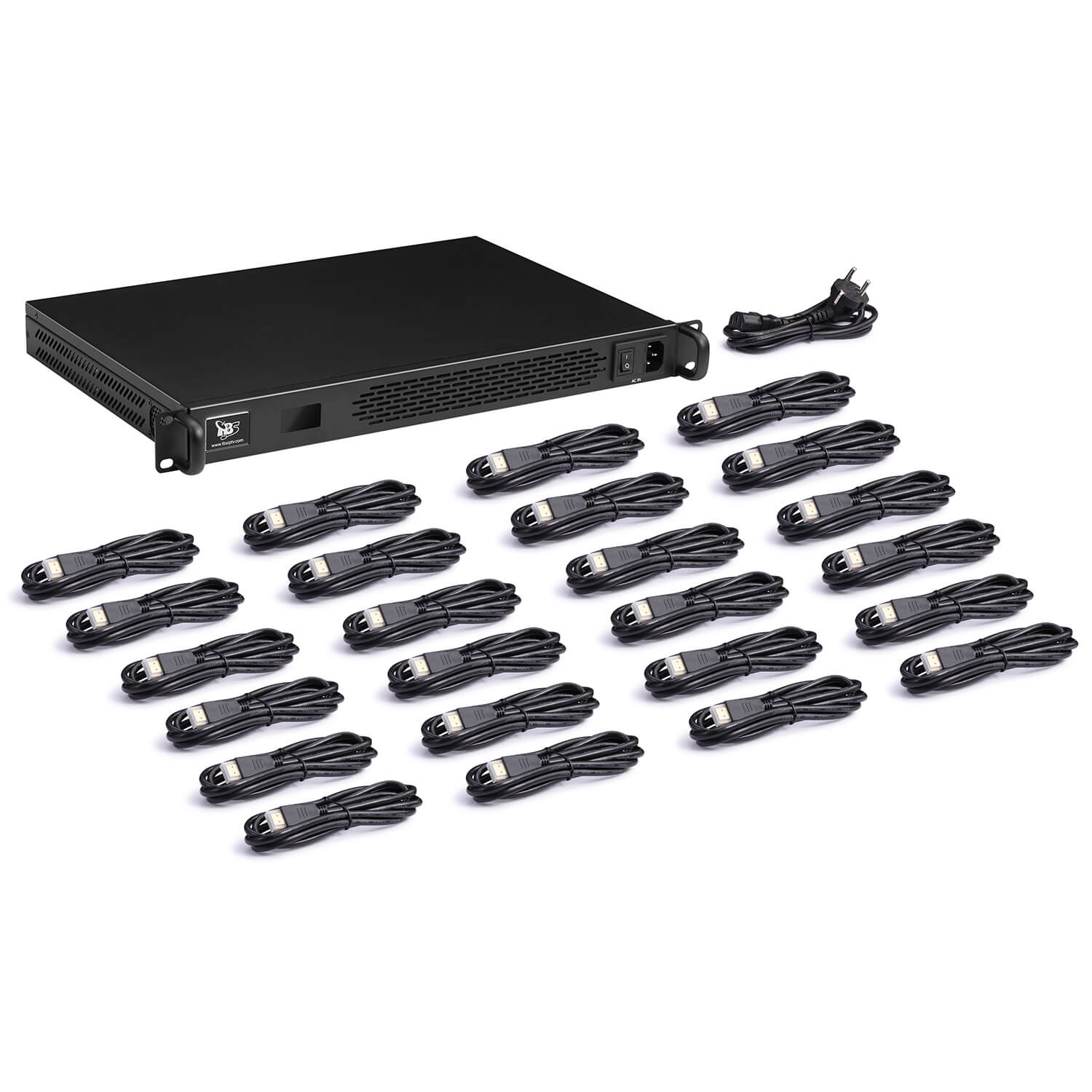

    Package Content 1x TBS2824 4K@30fps HDMI encoder
    1x AC Power Cable
    24x HDMI Cable
