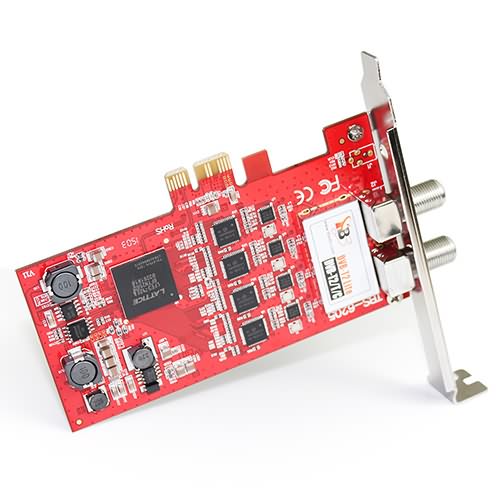

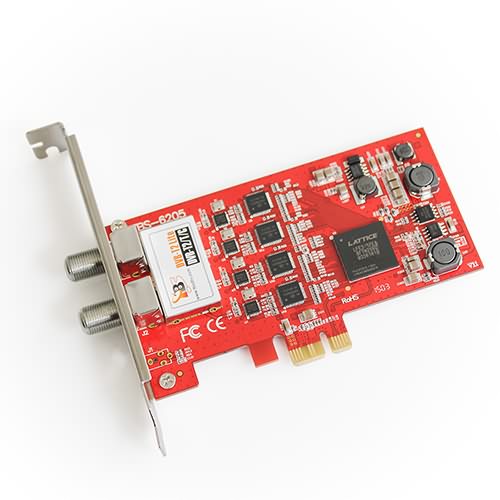

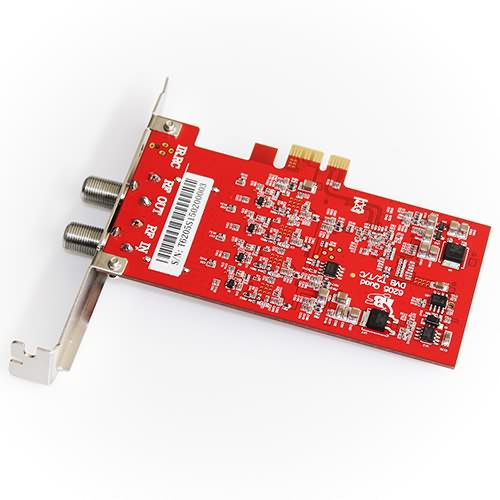

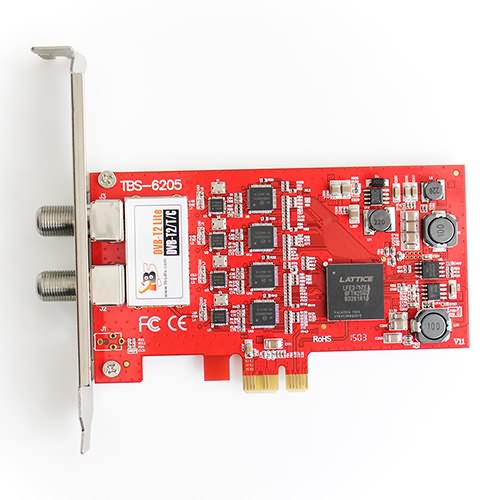

TBS6205 DVB-T2/T/C TV quad tuner card works also as a digital video recorder for recording digital terrestrial TV programs with full HDTV support. With the Time-shifting function, it enables you to pause a live broadcast and continue from where you left. This DVB T2 PC TV card is ready with windows BDA driver and Linux driver. It's ideal for watching UK Freeview SD and HD channels on your desktop PC.

View More

Main Features:

• Low profile design
• DVB-T2/T/C SD or HD TV receiving
• Quad channel receiving simultaneously
• High-definition video, real-Time and scheduled video
• Recording
• High sensitivity DVB-T2 Quad Tuner for the best digital TV reception
• Windows BDA driver and Linux Driver ready

Specifications:

• Support PLP( Physical Layer Pipe)
• DVB-T2/T2 Lite/T
  • Receiving channel: VHF band and UHF band
  • Channel bandwidth: 6, 7, 8 MHz
  • DVB-T2/ T modulation type: QPSK, 16QAM, 64QAM, 256QAM
  • FFT mode: 1K, 2K, 4K, 8K, 16K, 32K
  • Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 7/8
  • Guard internal: 1/4, 1/8, 1/16, 1/32, 1/64, 1/128, 19/128, 19/256
  • Intermediate frequency
  • IF mode: low IF
  • Center IF Frequency: 3 ~ 5 MHz
  • Note: default 4MHz
  • RF-Input impedance 75Ω (IEC-DIN female)
  • RF-Output impedance 75Ω (IEC-DIN male)
  • TV card size: 115x68.7mm (length x height)
  • TV card weight: 78g
  • Power consumption: 6.7 – 9 W
  • Operating temperature: -10°C ~ 70°C
• DVB-C
  • Fully compliant with DVB-C and ITU J83 A/B/C specifications
  • Receiving Frequency: 47~862 MHz Tuning Range
  • Input level: -65~-10dBm
  • 16QAM, 32QAM, 64QAM, 128QAM and 256QAM Support
  • Symbol Rate: 0.87 to 9Mbaud
  • System Requirements:
  • Windows 2000/XP/Vista/7/8/10 or Linux
  • Available PCI Express x1, x4, x8 or x16 slot
  • CD/DVD drive for software installation

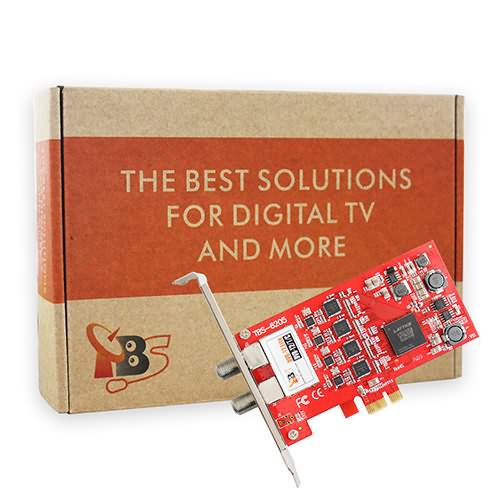

Package Contents:

• 1x TBS6205
• 1x Low profile bracket
• 1x Fconnector
