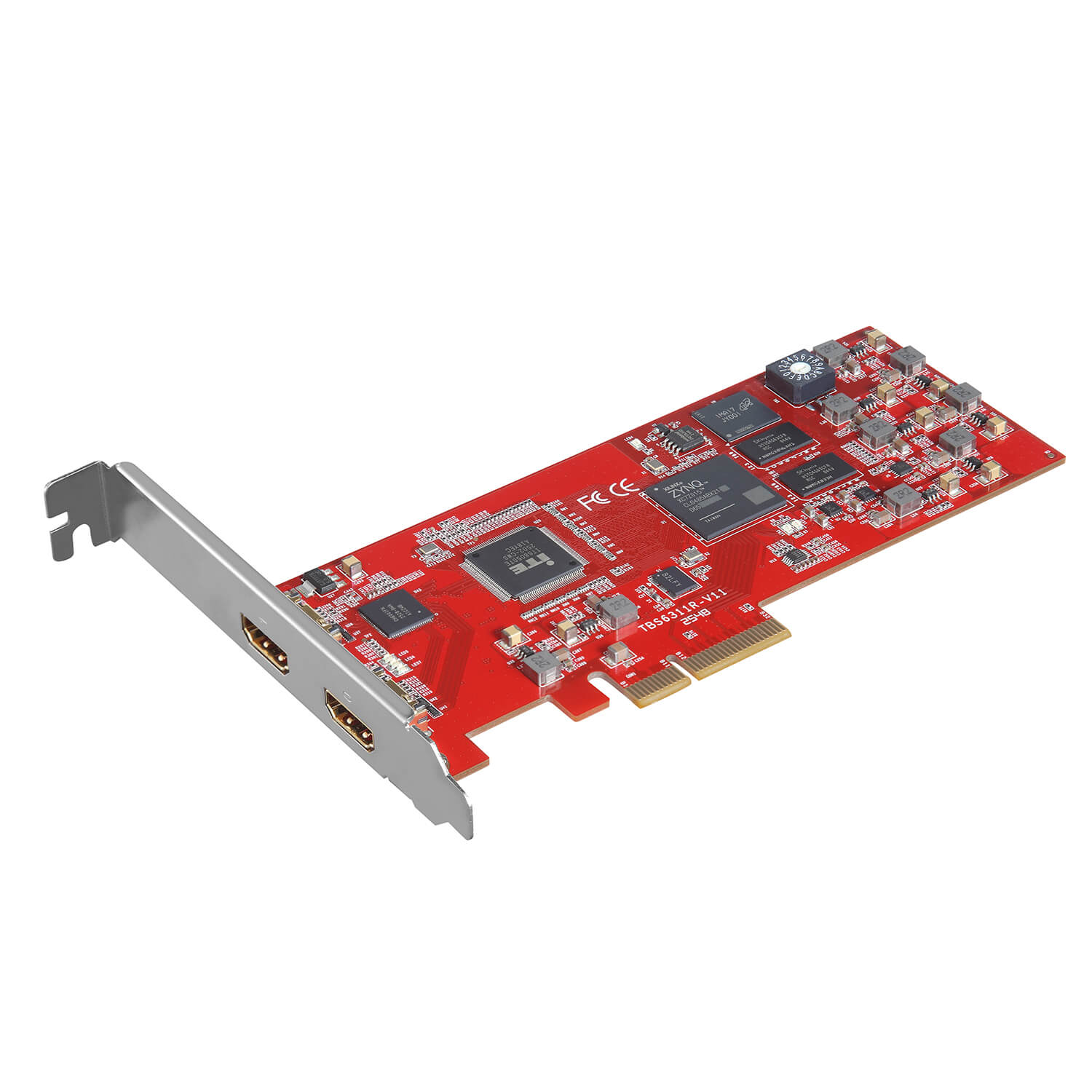

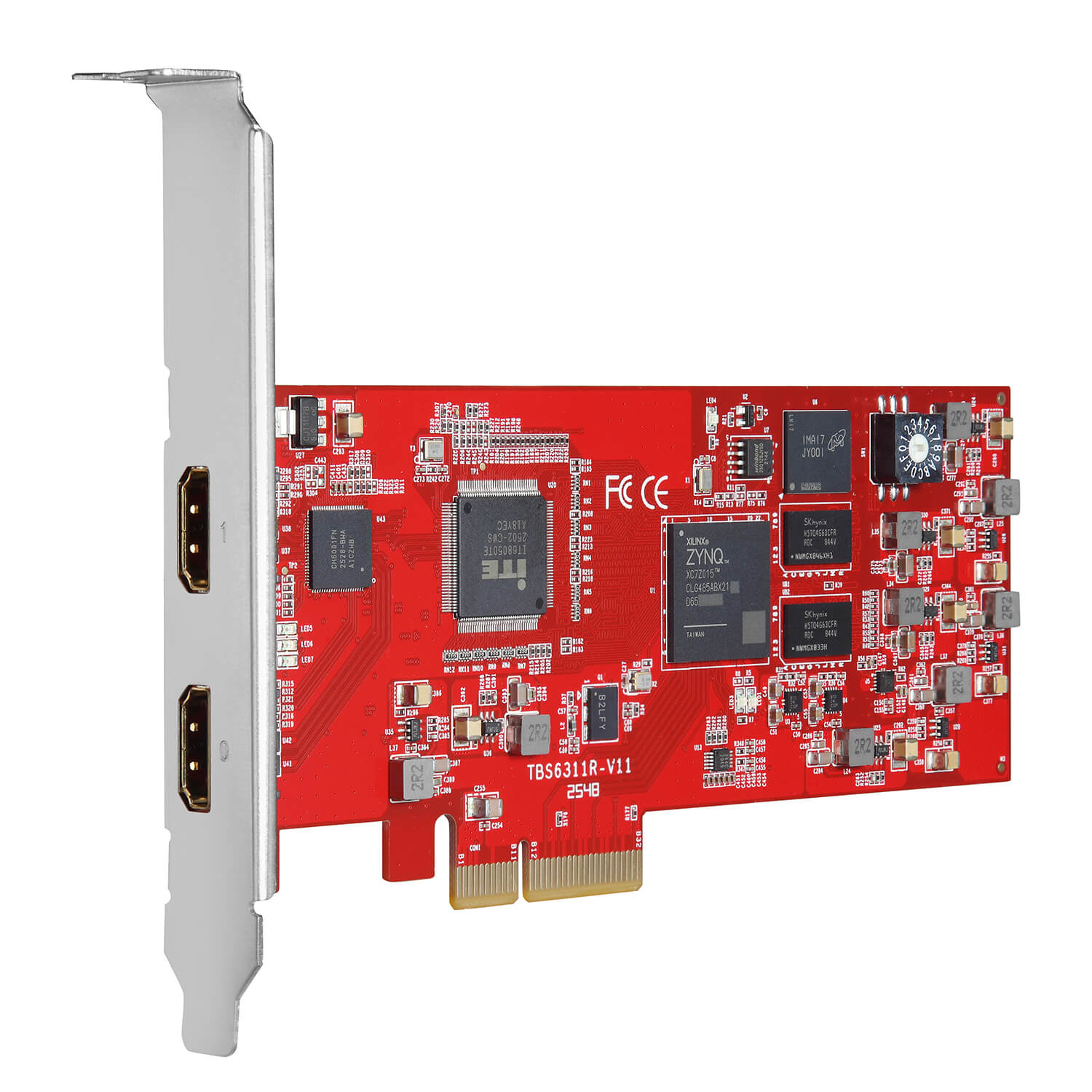

    TBS6311R 4K HDMI Raw Data Video Capture Card

    The TBS6311R is a premium 4K HDMI raw data video capture card featuring a single HDMI input. It supports uncompressed, real-time video capture at true DCI 4K resolution (up to 4096×2160p@60Hz). Additionally, its HDMI loop‑out port enables convenient real‑time monitoring of the input signal status.

    TBS6311R 4K HDMI uncompressed video capture card delivers a flexible and cost-effective hardware solution for professional video workflows. With broad operating system support and compatibility with key software platforms like OBS, vMix, and Wirecast, it reliably supports video recording, live streaming, and production. This versatility makes it an excellent choice for applications ranging from live broadcasting and online conferences to medical, surveillance, and educational purposes.

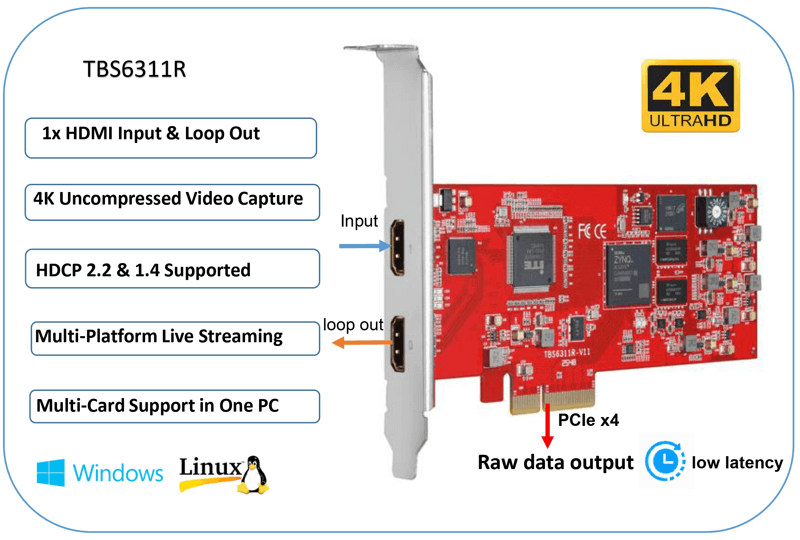

    Features:

    • 1x HDMI input supporting DCI 4K resolution up to 4096x2160p@60Hz
    • Raw, uncompressed video capture for broadcast-quality output
    • Software compression, real-time mode
    • High-performance design ensuring ultra low latency
    • Supports HDCP 2.2 and 1.4
    • Broad software compatibility with OBS, vMix, XSplit, Wirecast and more.
    • Ideal for game/teaching/surgical live broadcast, video conference and various high-definition video capture

    Applications:

    Why choose TBS6331R?

    4K Uncompressed Real-Time Video Capture & Broadcasting

    • 4K raw data video capture and broadcast simultaneously
    • Adopt HDMI 2.0b interface for rapid transmission of uncompressed video data

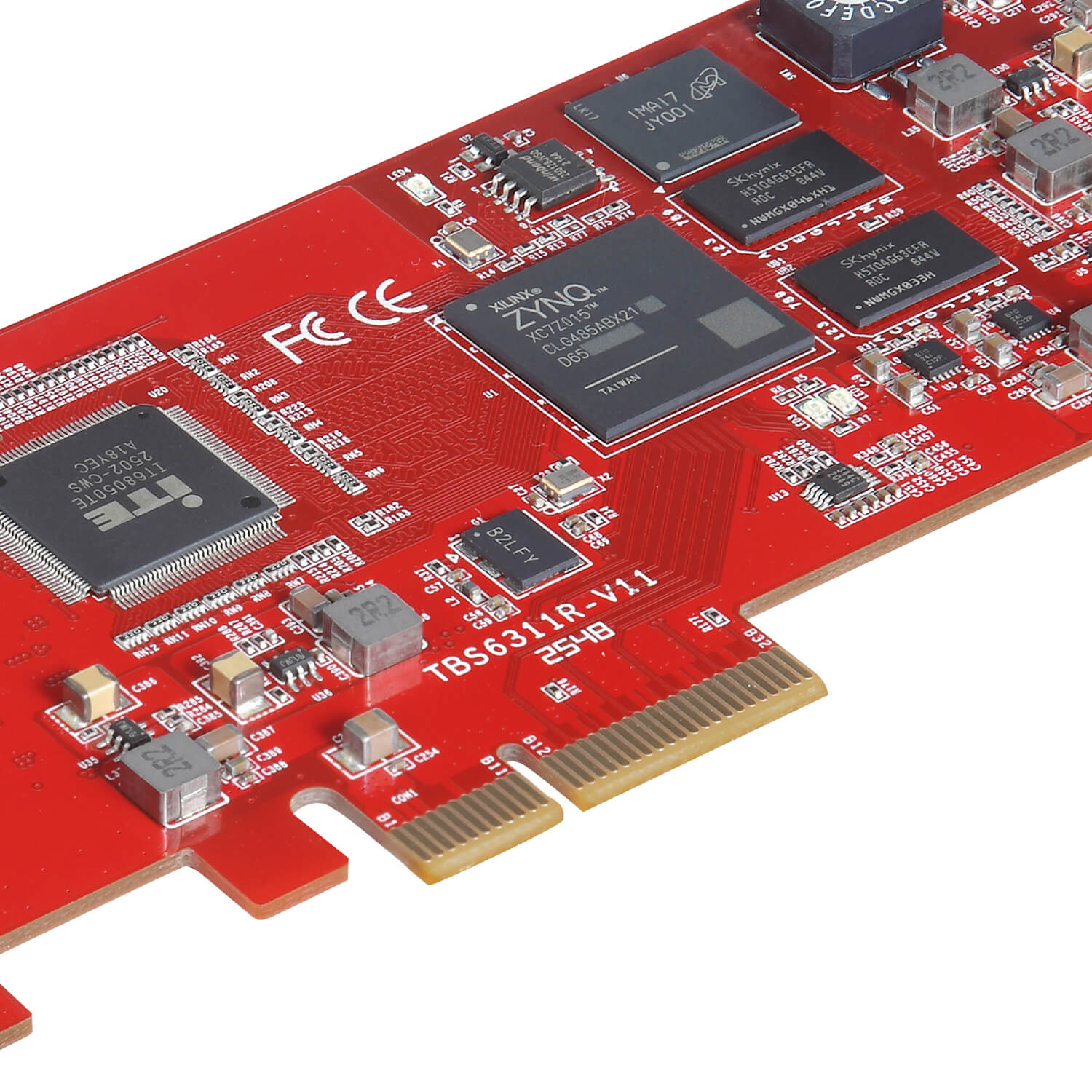

    • Powerful chipset for real-time video capturing and processing
    • High performance, ultra low latency

    Versatile Software for Your Choice

    • The TBS6311R offers broad software compatibility. It works seamlessly with popular applications such as VLC, OBS, vMix, XSplit, Wirecast and Microsoft Media Encoder.

    One Computer with Multiple Cards

    • Depending on the computer's configuration, multiple TBS6311R 4K HDMI raw data capture cards can be used in a single PC to capture and broadcast more scenes simultaneously.

    Specification:

    Model No. TBS6311R
    Product Name 4K60 HDMI Raw Data Video Capture Card
    Input Interface 1x HDMI 2.0b, compatible with HDMI 1.4
    HDCP HDCP 2.2 & 1.4

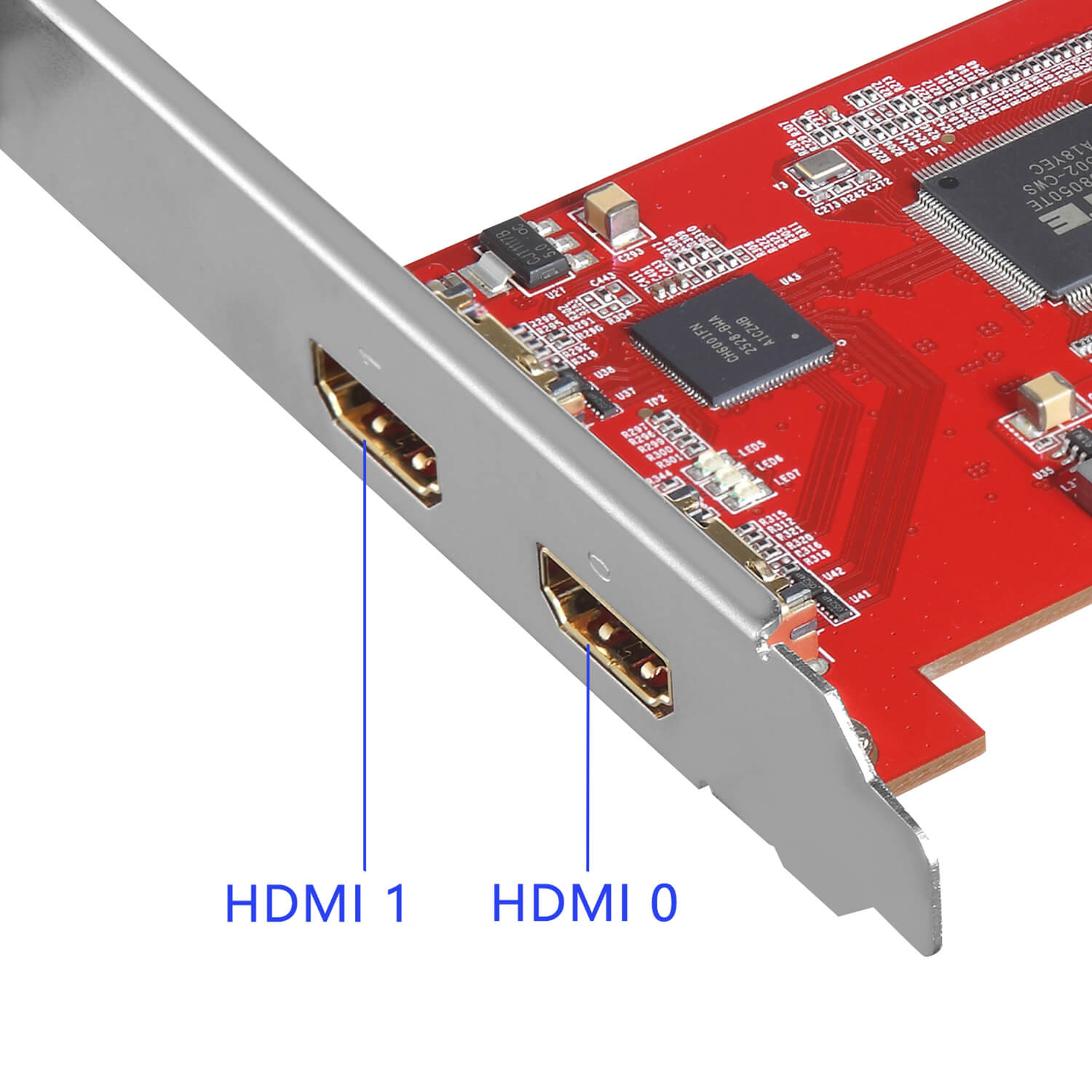

    Output Interface 1x HDMI loop out
    1x PCIe x4 ( Raw data output)
    Video & Audio: Professional-Grade Uncompressed Capture
    Video Capture Formats NV12, YV12, YUY2, 4:2:0
    Video Processing Feature Video scaling
    Video Input 4096x2160p_60/50hz, 3840x2160_60/50/30hz,
    1920x1080p_60/50hz, 1920x1080p_30/25/24hz, 1920x1080i_60/50hz,
    1280x720p_60/50hz,720x576p_50hz, 720x576i_50hz, 720x480p_60hz,
    720x480i_60hz, 640x480p_60hz etc.
    Audio Input HDMI embedded audio
    Audio Input Format 32Khz, 44.1Khz, 48Khz, sampling precision 16 bit
    Audio Processing Feature Audio transcoding
    Compatibility and Software Support
    Compatible Software VLC, OBS, vMix, XSplit, VirtualDub, VidBlasterX, Wirecast
    Microsoft Media Encoder, Adobe Flash Media Encoder etc.
    Driver Windows driver, AVStream driver
    Linux driver: V4L2, ALSA
    System Requirements
    Recommended Hardware CPU: 12th Gen Intel i7
    RAM: DDR5 32GB
    Supported OS Windows 7 Windows 8 / Windows 10 / Windows 11
    Ubuntu 22.04LTS/24.04LTS, Rocky Linux 9, Debian and more.
    Slot Available PCIe x4/x8/x16 slot
    General Spec.
    Working Environment Operating temperature: 0°C to 60 °C
    Storage temperature: –20°C to 70 °C
    Relative humidity: 5% to 90% non-condensing
    Dimension 155 mm x 68.9mm
    Net Weight 70g
    Gross Weight 170g

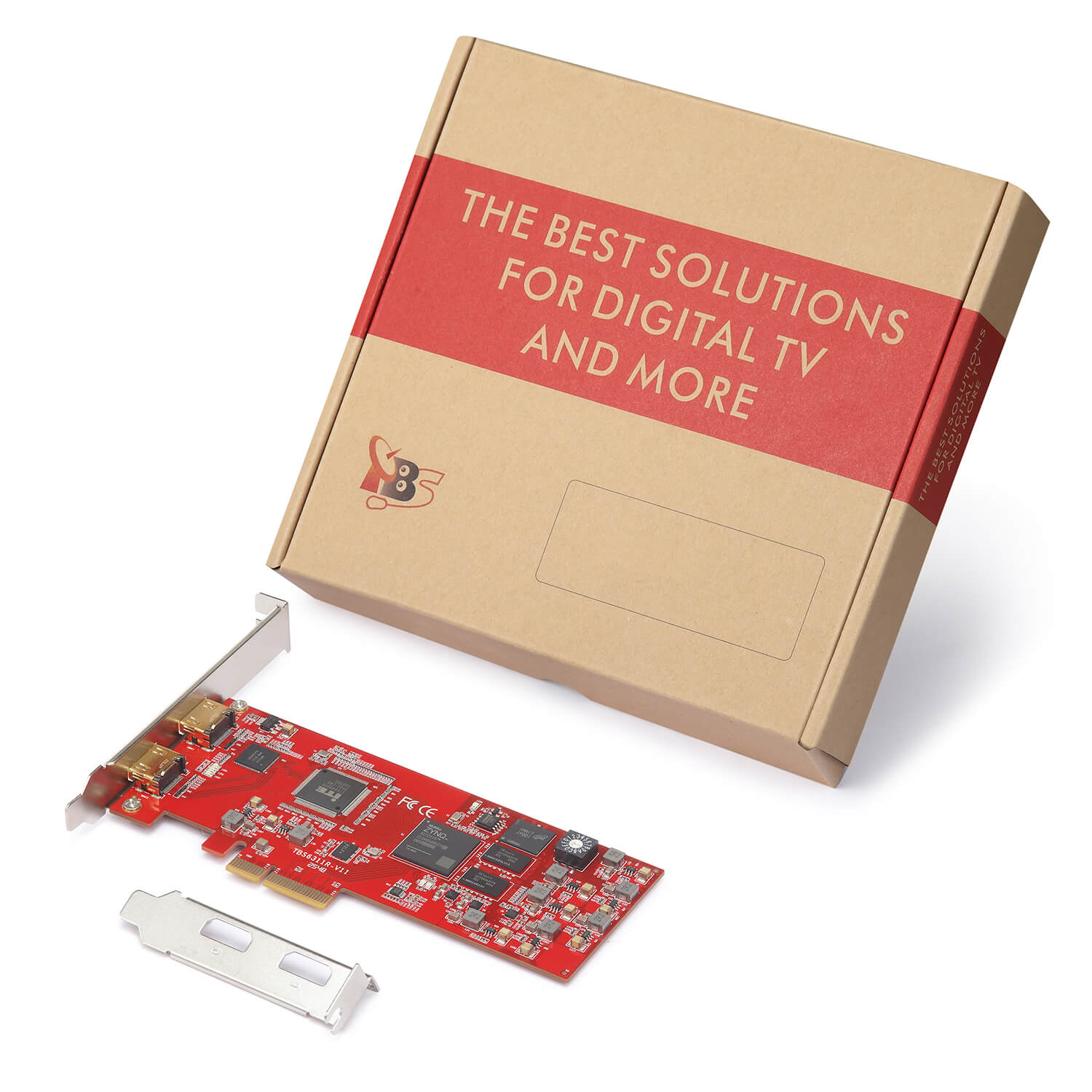

    Package Content 1x TBS6311R
    1x Low Profile Bracket
