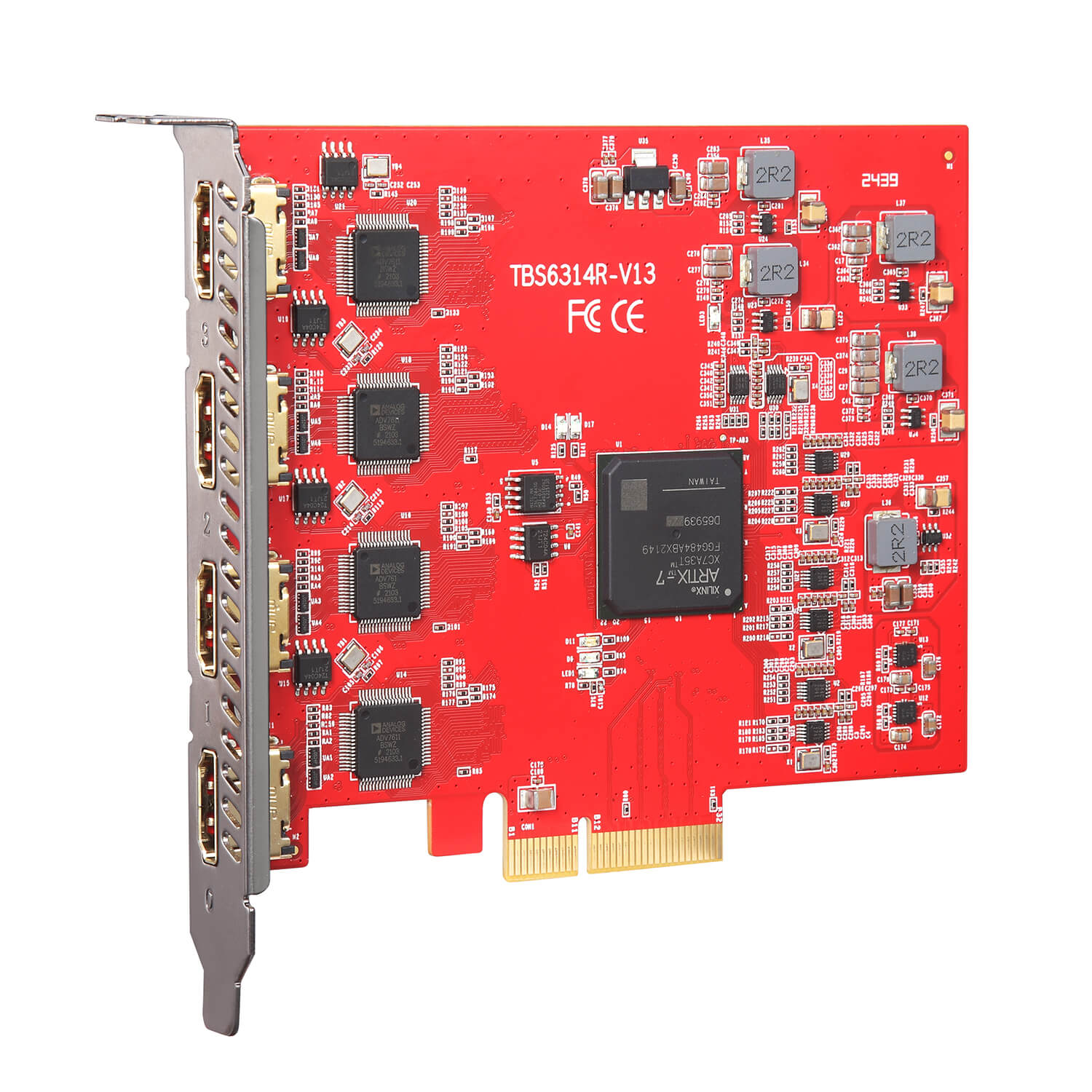

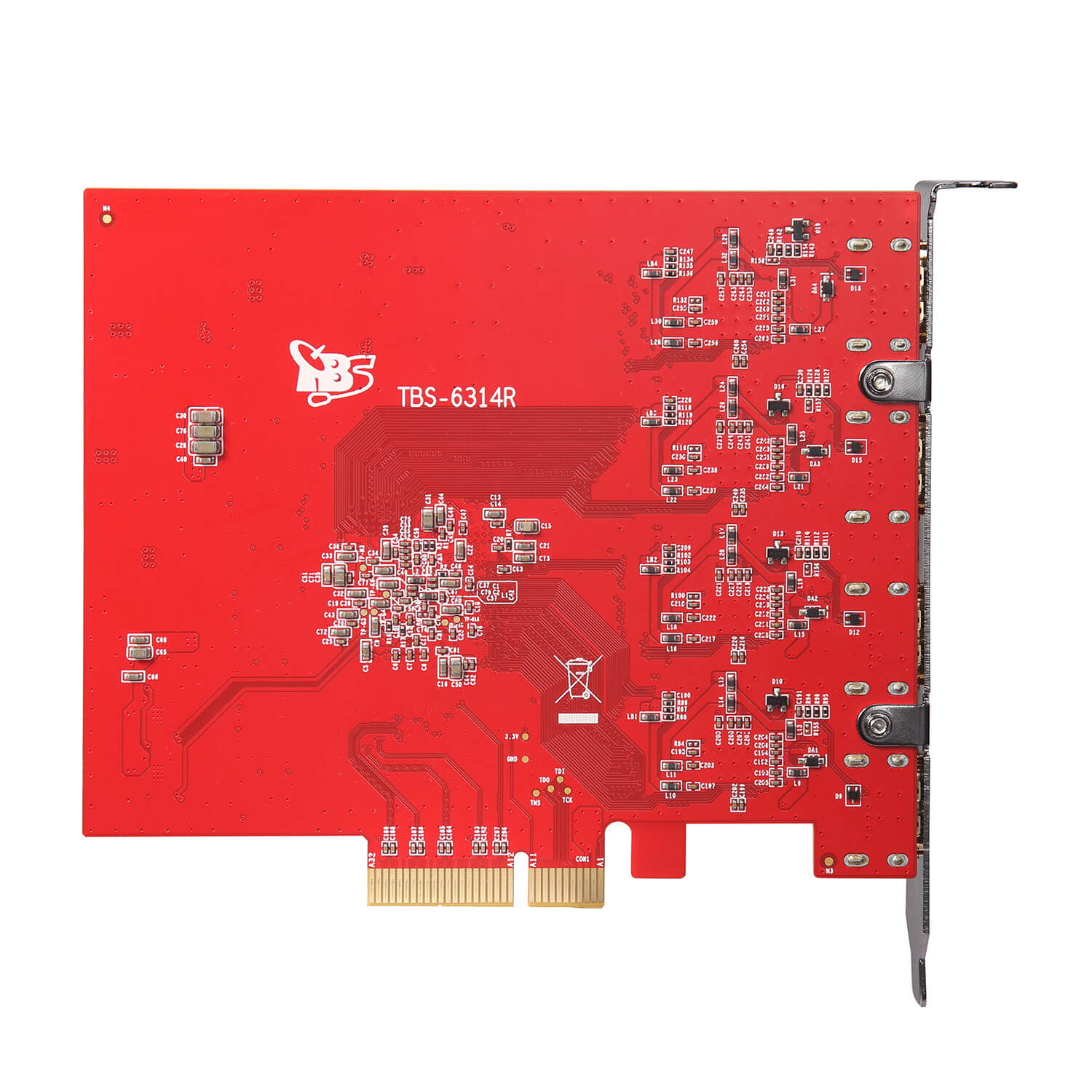

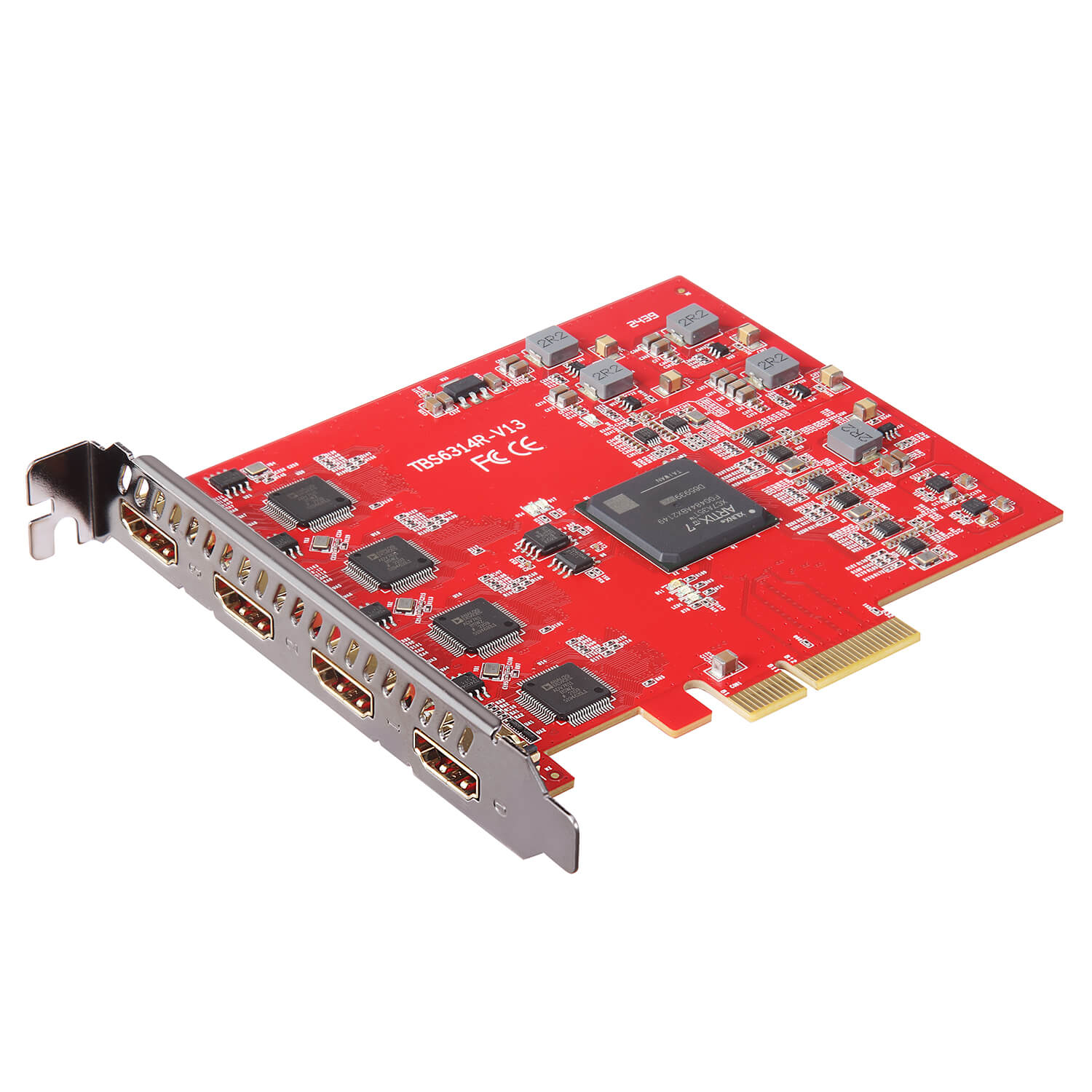

TBS6314R is a PCIe Gen2 x4 raw data video capture card of superior quality and equipped with 4 HDMI inputs supporting uncompressed real-time video capturing at full HD resolution up to 1920x1080@60Hz.

With the support of popular operating systems, TBS6314R works well with a wide range of software such as OBS, vMix, xSplit, VidBlaster and Wirecast, making it suitable for video recording, streaming, live production applications.

TBS6314R provides a flexible and cost-effective choice for live streaming, broadcasting, online conferences, medical uses, surveillance, education and more.

Features:

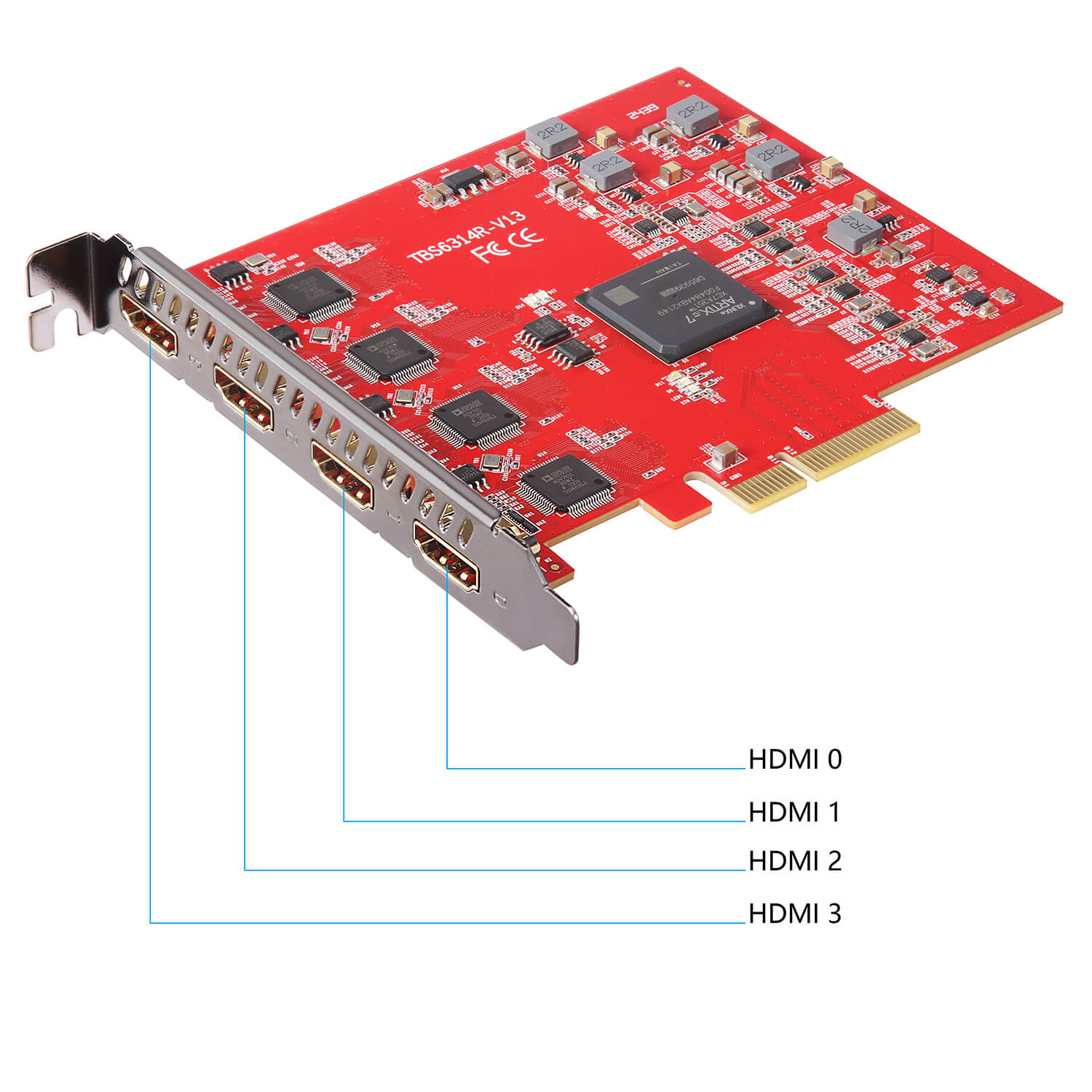

• 4x HDMI inputs support high resolution up to1920x1080p@60Hz
• 4-channel raw data video capture and broadcast simultaneously
• Software compression, real-time mode
• High performance, ultra low latency
• Supports HDCP 1.4
• Compatible with versatile software: OBS, vMix, XSplit, Wirecast etc.
• Ideal for game/teaching/surgical live broadcast, video conference and various high-definition video capture

Applications:

• IPTV
• Education
• Video conferencing
• Datacasting and monitoring
• Live streaming
• Virtual studio

Multi-channel High Resolution Video Input /Capture

• Support 1080P full HD video input and capture from 4x HDMI interfaces simultaneously
• Max. input resolution is 1920x 1080@60Hz

Uncompressed Real-time Video Capturing &Broadcasting

• 4-channel raw data video capture and broadcast simultaneously
• Adopt HDMI 1.4a interface for rapid transmission of uncompressed video data
• Powerful chipset for real-time video capturing and processing
• High performance, ultra low latency

Versatile Software for Your Choice

• TBS6314R is compatible with versatile software such as VLC, OBS, vMix, xSplit, VirtualDub, VidBlaster, Wirecast, Microsoft Media Encoder, Adobe Flash Media Encoder.
• Supports multi-platform simulcasting to YouTube, Facebook, Twitch etc.

Specification:
