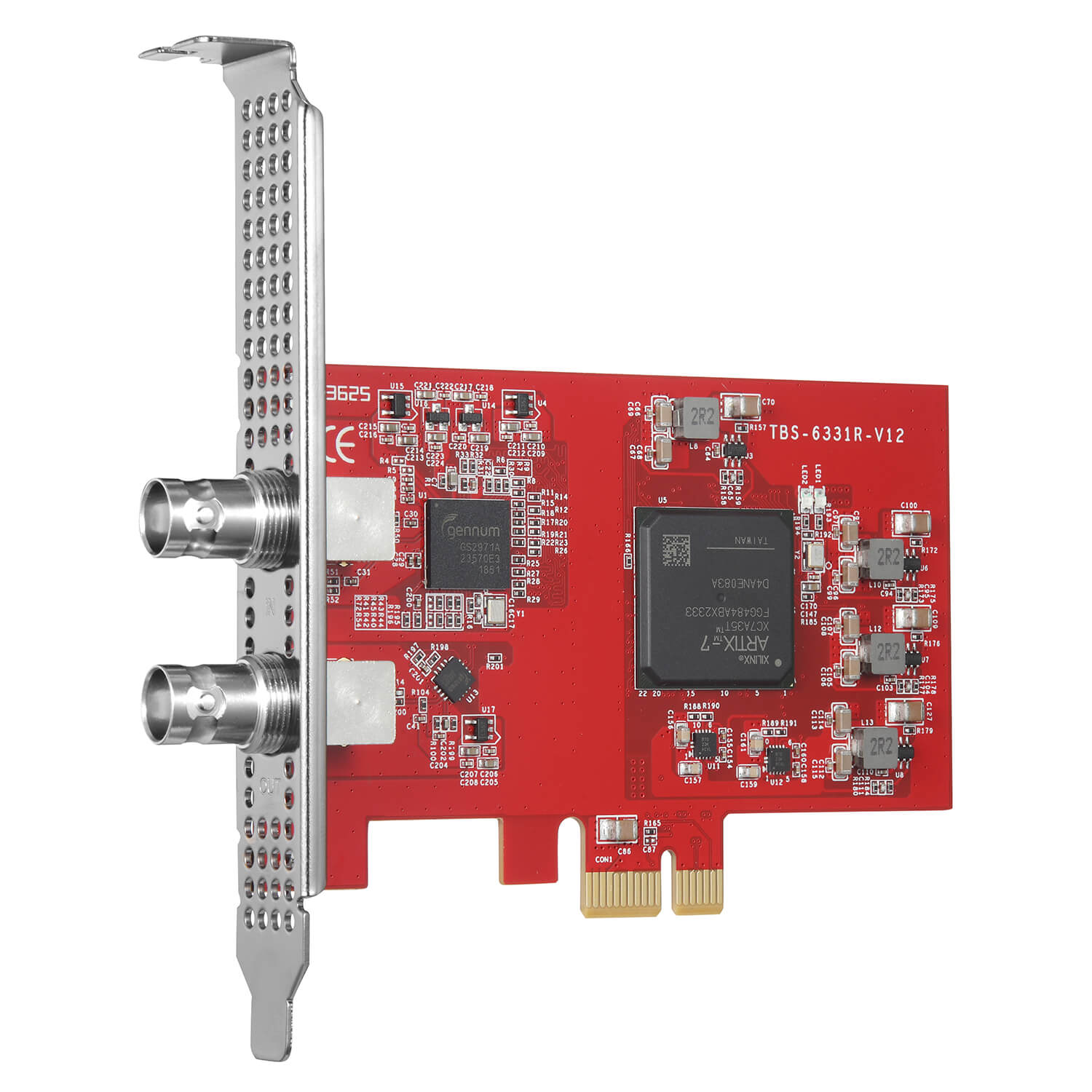

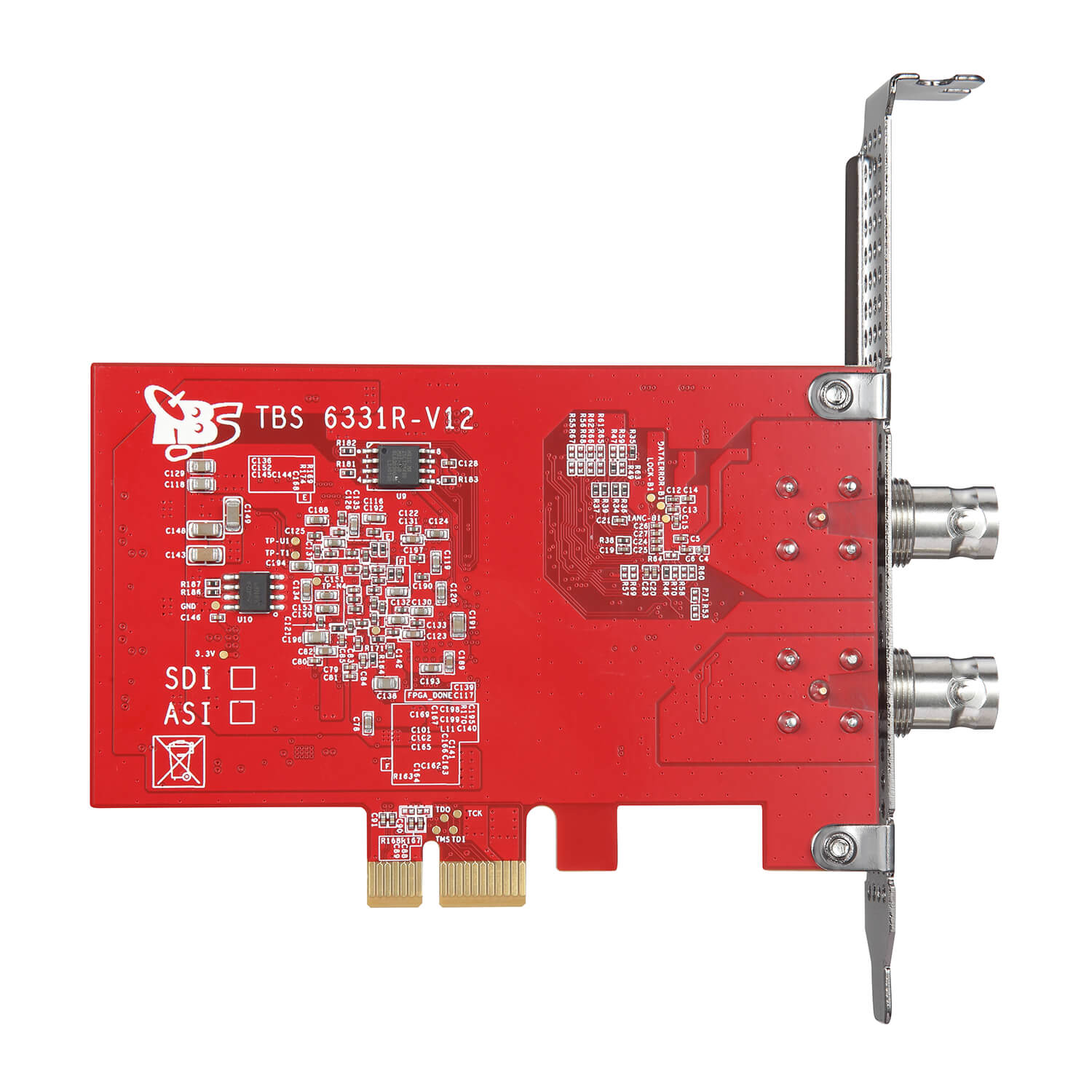

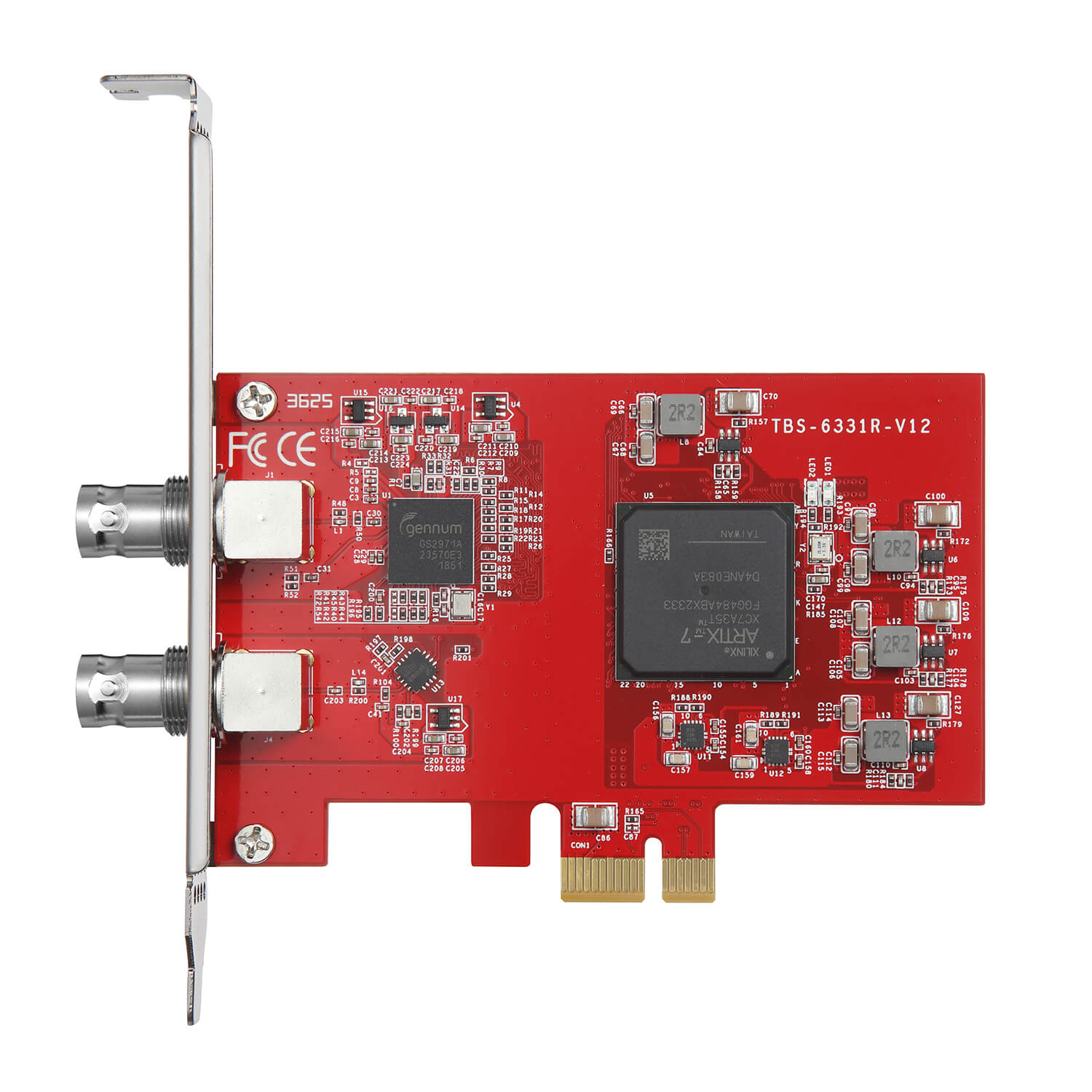

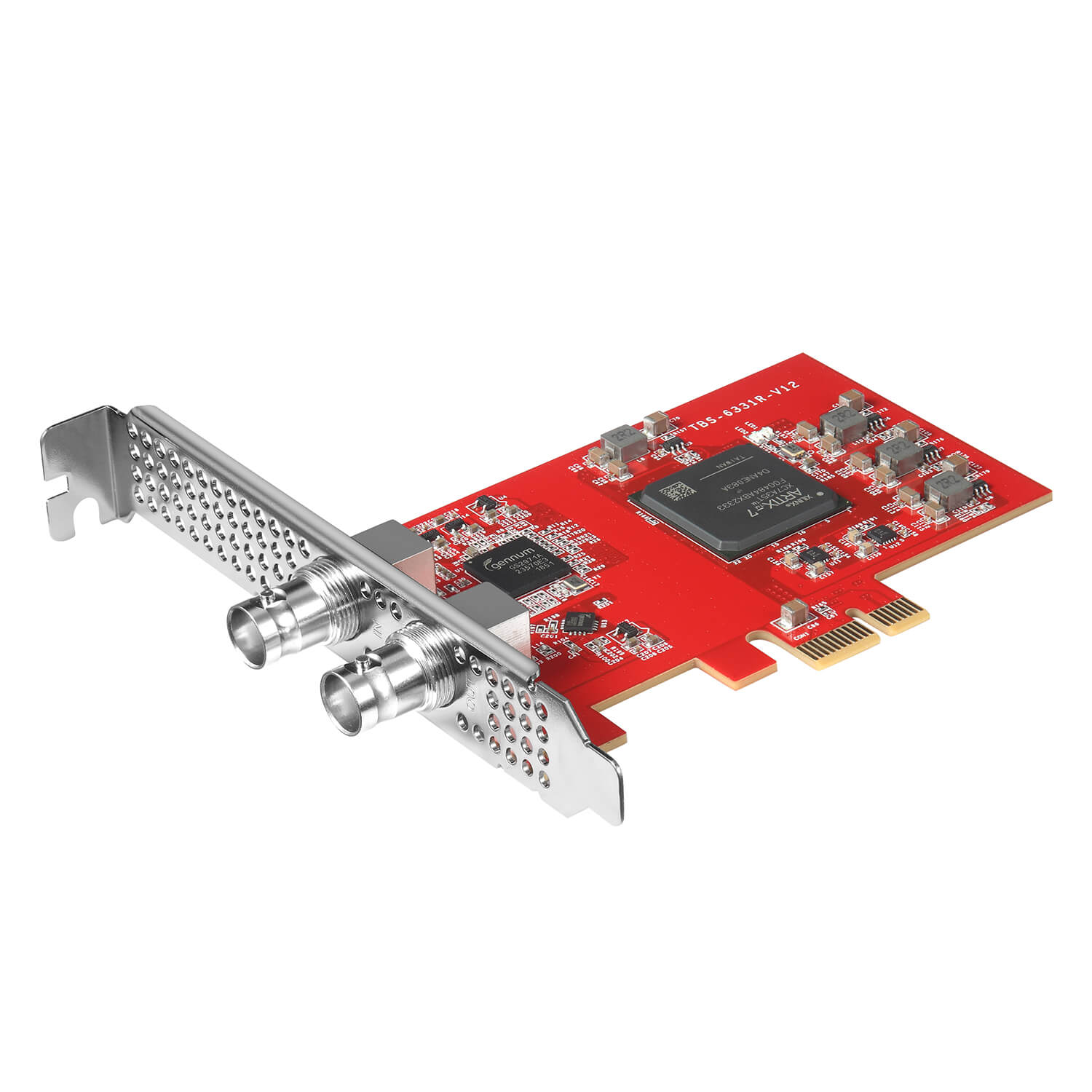

TBS6331R-ASI is a high-quality, PCIe x1 (Gen 2) DVB-ASI capture card. Combining a single DVB-ASI input for superior workflow efficiency with reliable, high-performance 24/7 capture and low power consumption, the TBS6331R-ASI capture card is ideal for industrial and telecommunication environments. It is specifically built to handle rigorous broadcast and IP video tasks.
Features:
Applications:
Specification:
| Model No. | TBS6331R-ASI |
| Product Name | Professional DVB-ASI Capture Card |
| Interface | PCIe x1 (Gen 2) |
| Form Factor | Standard-height |
| Input | 1x ASI embedded Video/Audio |

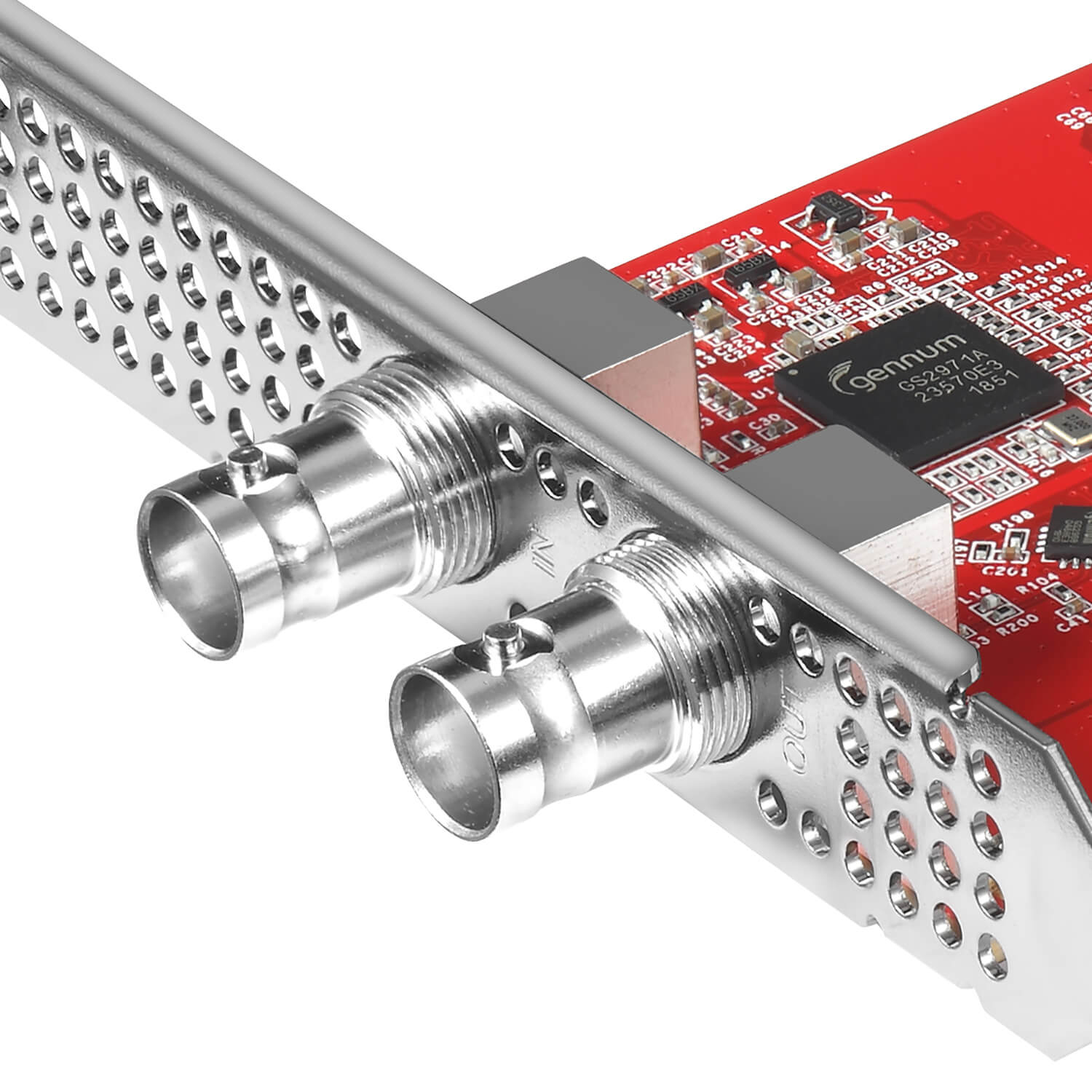

| Loop-through Interface | 1x DVB-ASI Loop Out (BNC Female) |
| Connector | BNC with status LED indicator |
| DVB-ASI Signal Capture | |
| Data Input | DVB-ASI Transport Stream (MPEG-2, H.264, HEVC/H.265 or JPEG2000 compliant transport stream) |
| Video Formats | DVB ASI Coaxial, DVB Transport Stream |
| Video Interfaces | DVB-ASI at 140Mb/s |
| Receive FIFO Size | 4 KB per channel |
| System Requirements | |
| Supported OS | Windows OS: Windows 7, Windows 8, Windows 10, or Windows 11 |
| Linux OS: Ubuntu, Rocky, Debian (with kernel 5.15 or higher) | |
| Slot | Available PCI Express x1, x4, x8 or x16 slot |
| General Spec. | |
| Working Environment | Operating Temperature: 0°C to 60°C |
| Storage Temperature: -20°C to 70°C | |
| Relative Humidity: 5% to 90% non-condensing | |
| Power Consumption | 3 Watt |
| Dimension | 100mm x 68.9mm |
| Net Weight | 120g |
| Gross Weight | 230g |

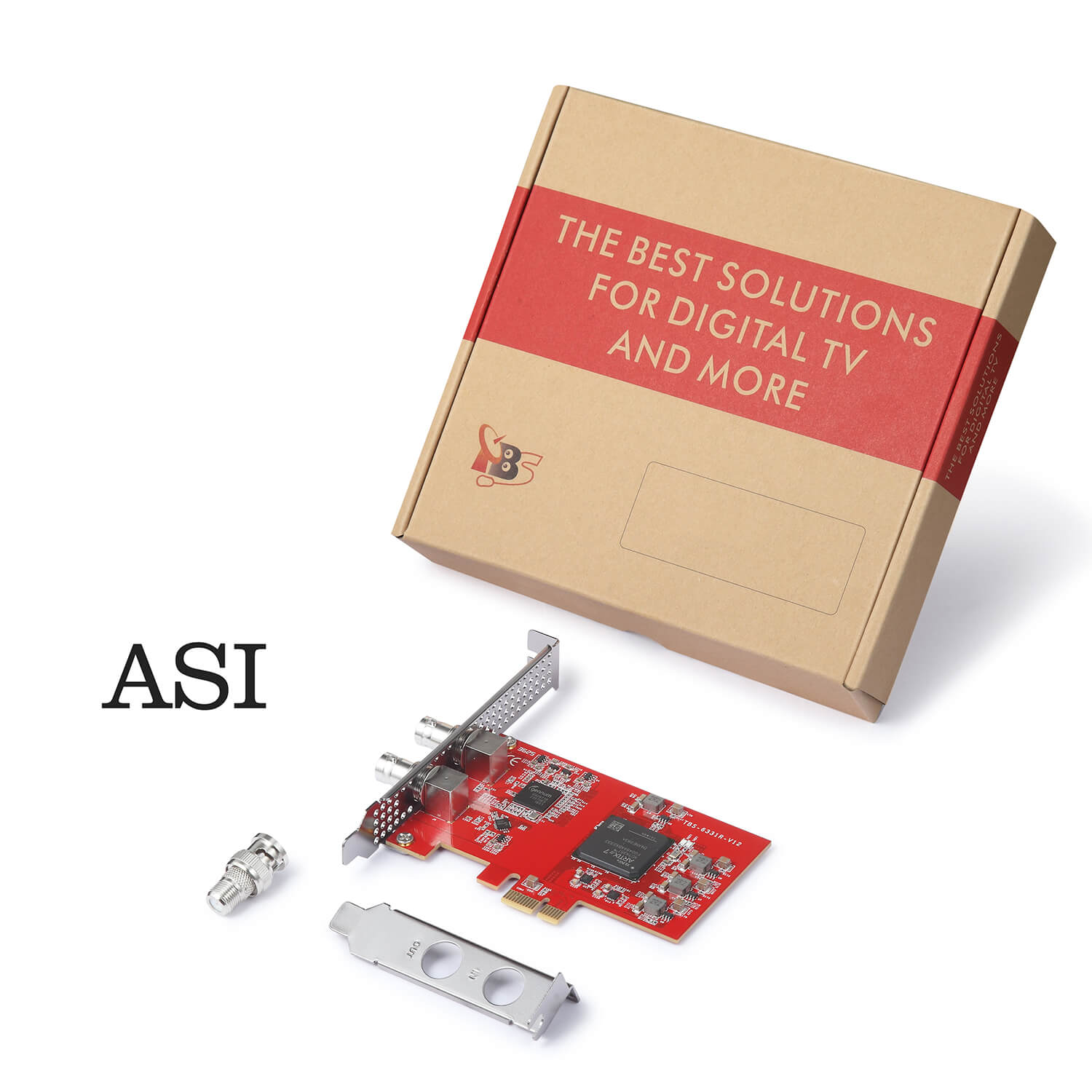

| Package Contents | 1x TBS6331R-ASI Professional DVB-ASI Capture Card |
| 1x Low profile bracket | |
| 2x Hex screw | |
