Benefits

• DVB-S2/DVB-S SD or HD TV receiving
• Watch satellite TV & listen to radio on PC
• Dual tuner for recording two different channels/transponders
• EPG (Electronic Program Guide) support
• Unicable/one cable compatible
• High-speed data download via satellite

Applications

• Data receiving
• Media monitoring
• Digital content distribution

Specifications:

• Frequency range: 950~2150 MHz
• Signal Level: -85~-10dB
• Symbol rate:
• DVB-S QPSK 1-45Msps
• DVB-S2 QPSK/8PSK 1-45Msps
• Automatic acquisition range : ±10MHz
• Automatic pilot detection:
• DVB-S2 CCM:
  • QPSK+1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
  • 8PSK+3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
  • 16APSK+/3, 3/4, 4/5, 5/6, 8/9, 9/10
  • 32APSK+3/4, 4/5, 5/6, 8/9, 9/10
• DVB-S
  QPSK+1/2, 2/3, 3/4, 5/6, 7/8
• DiSEqC support: 1.0, 1.2, 2.x
• Dimension: 140*68.8mm (length x height)
• Max Power consumption: 15W

Connections

• PCI Express
• 2x LNB IN

System Requirements

• Windows XP / Vista/ 7/8/10, Linux
• Available PCI Express x1, x4, x8 or x16 slot
• Satellite dish and LNB

Package Contents

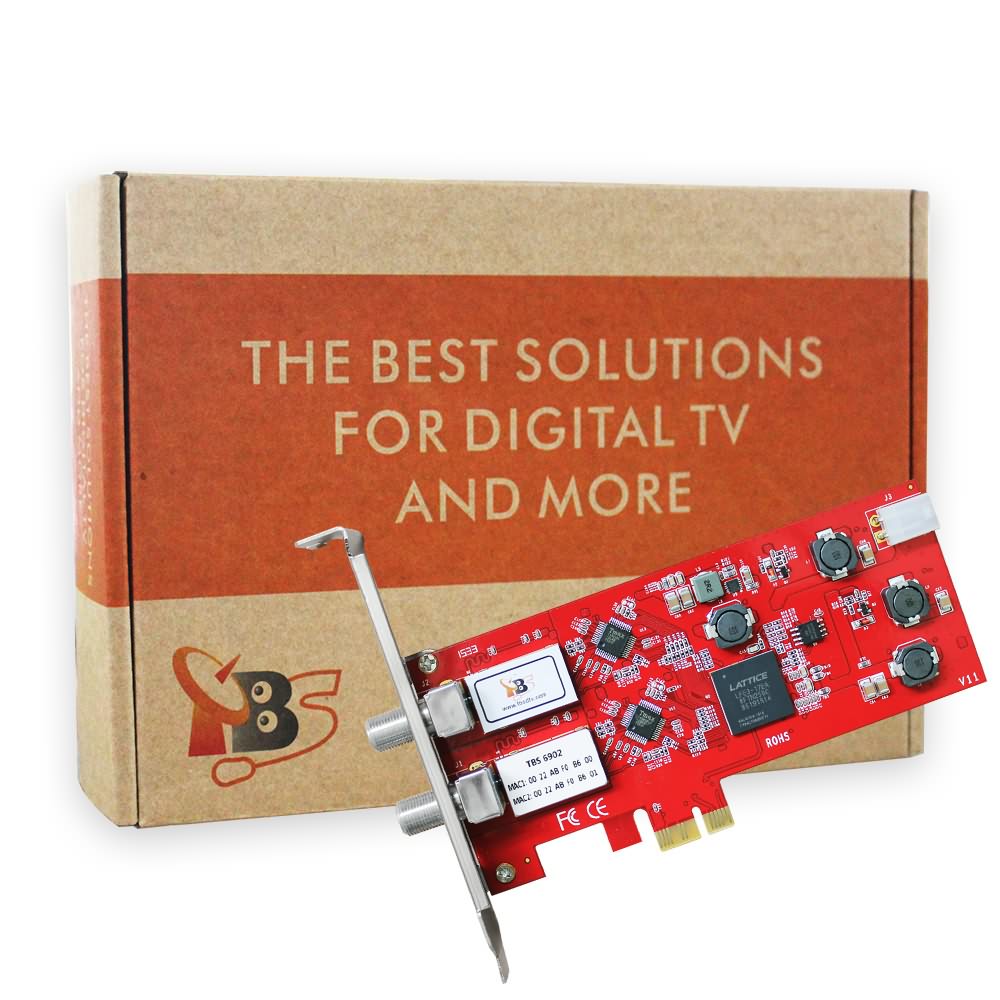

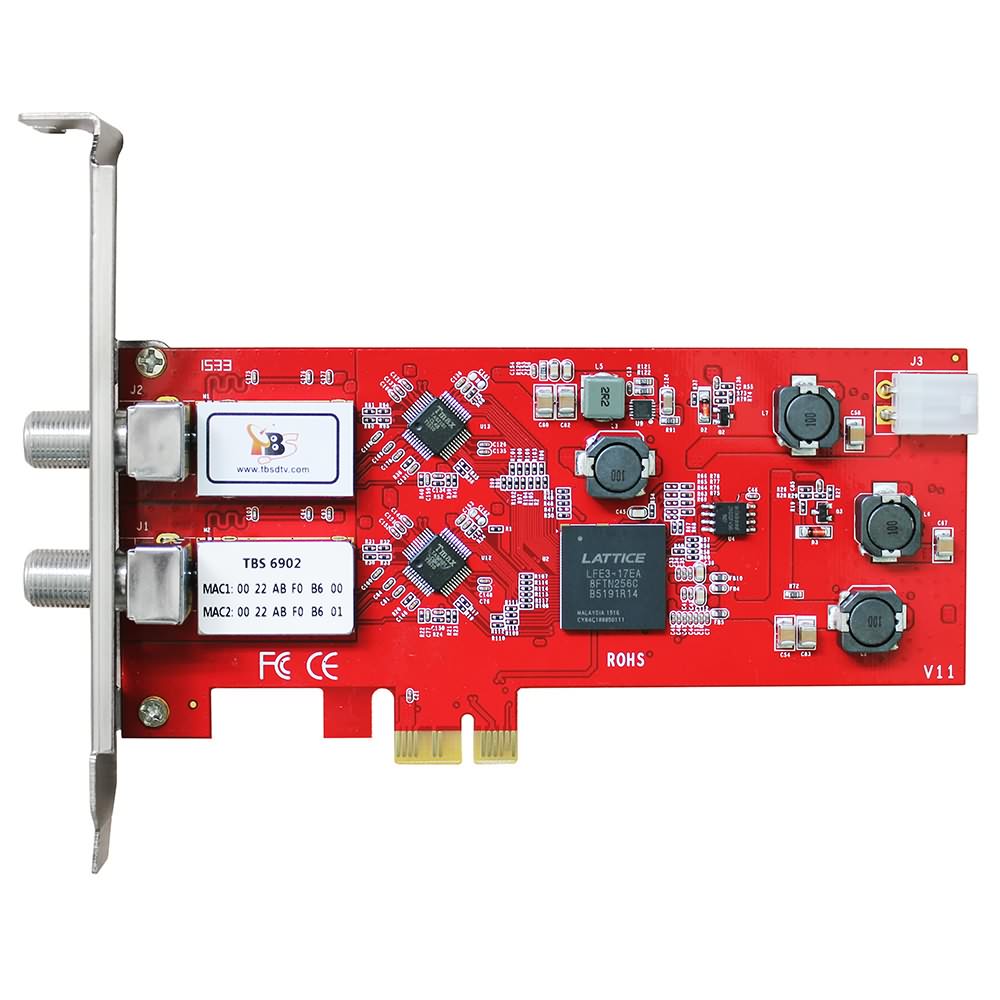

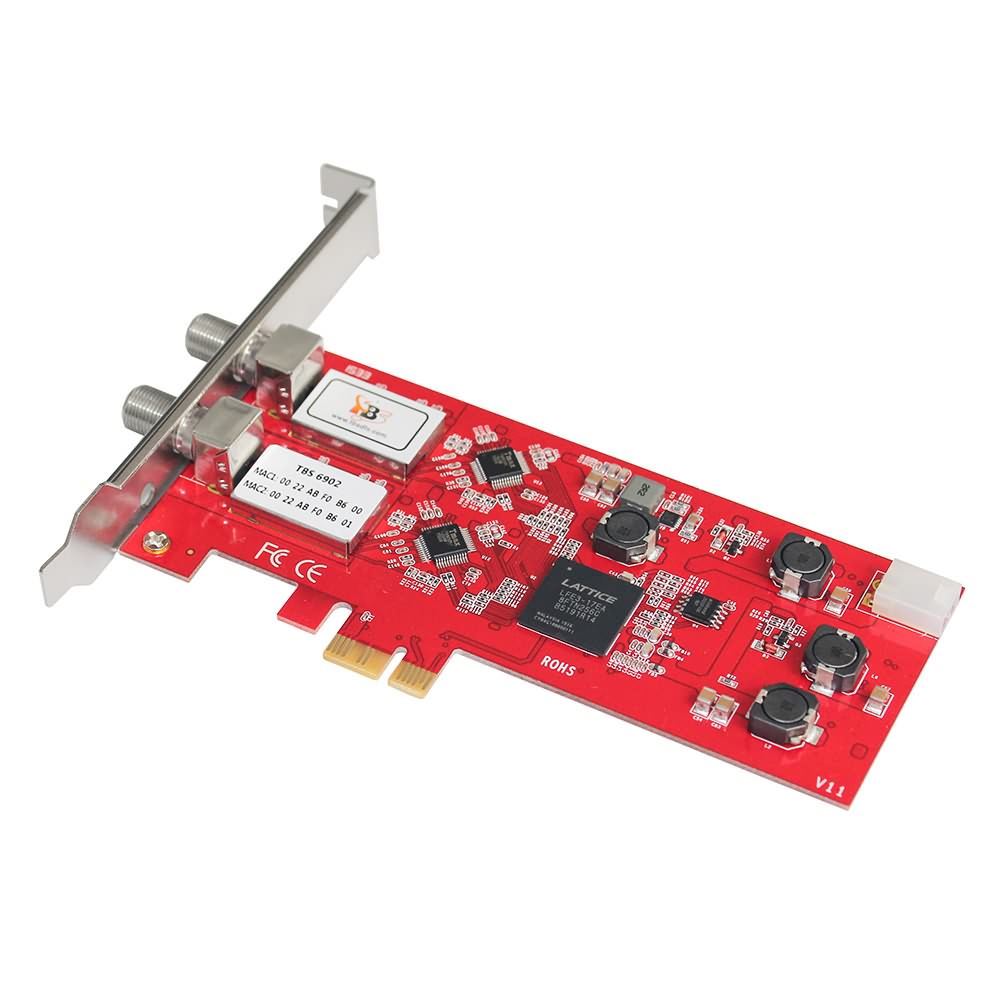

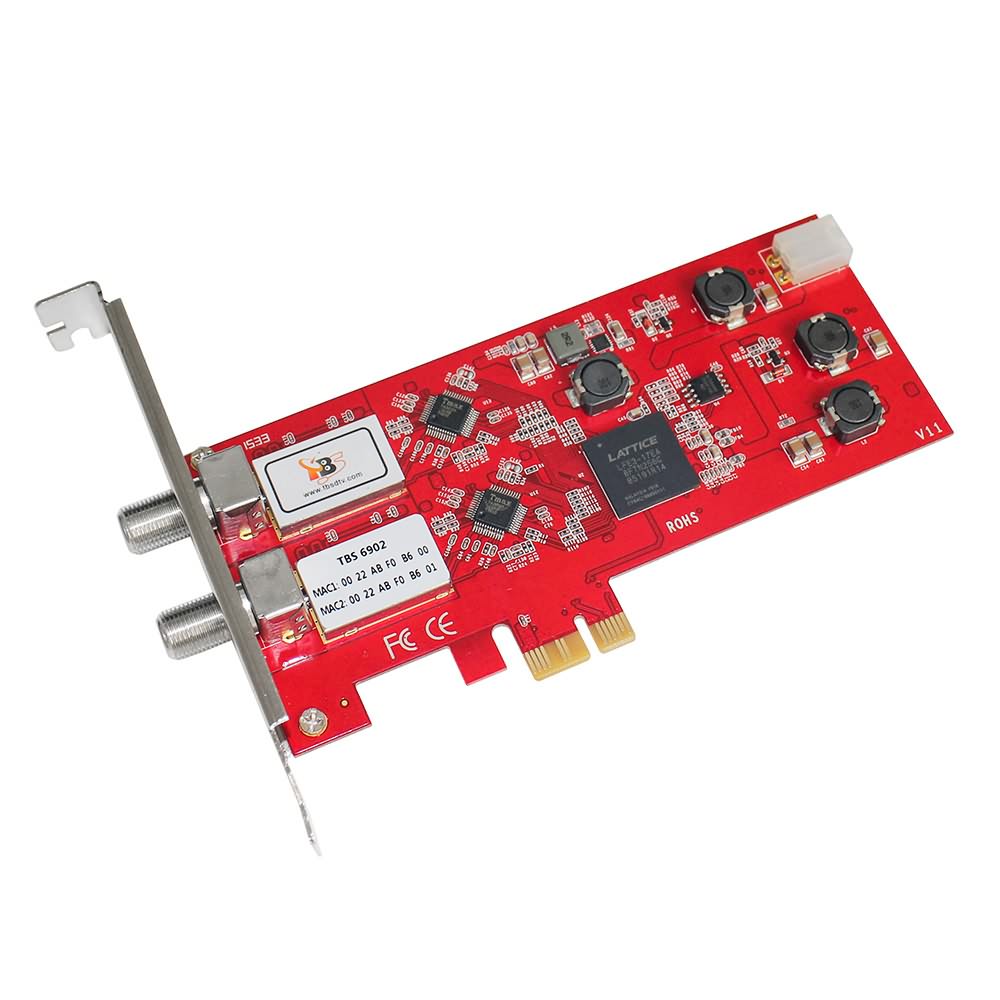

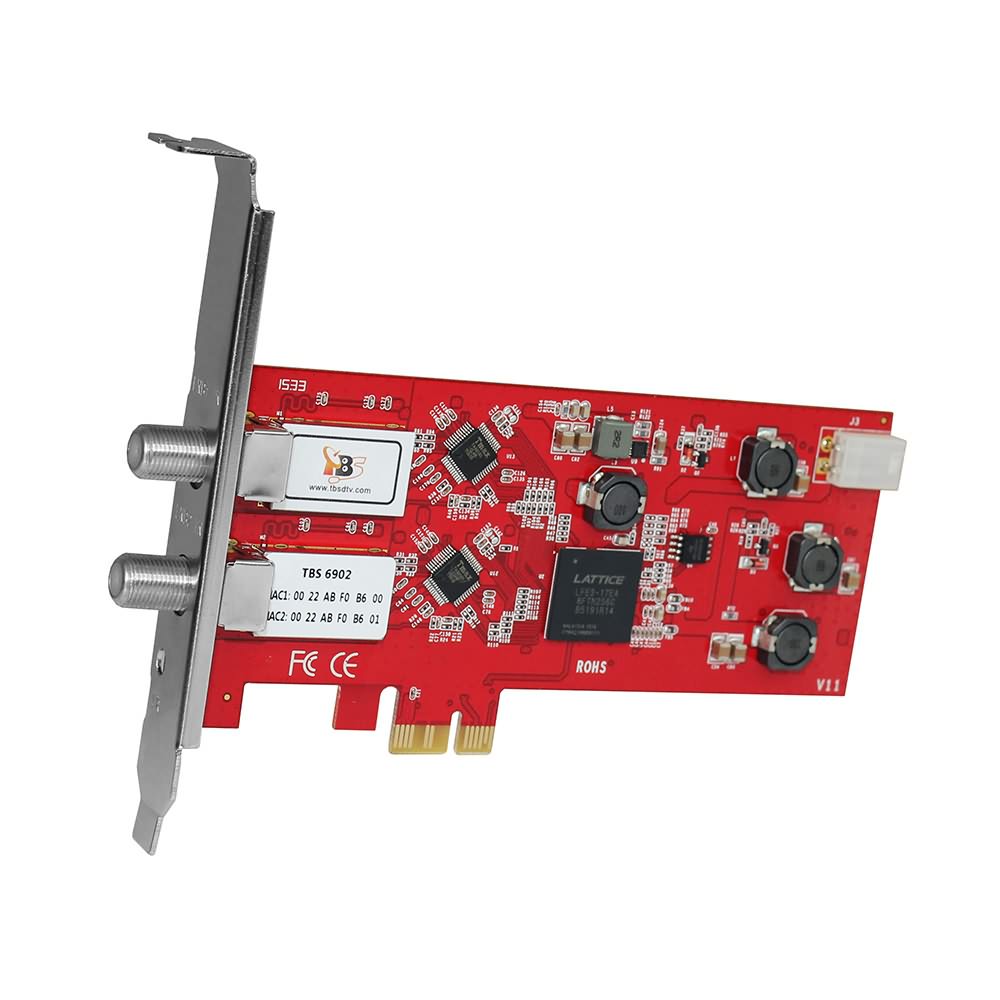

• 1 x TBS6902
• 1x Low profile bracket
• 1x DC line

• TBS6902 DVB-S2 Dual Tuner PCIe Card Data Sheet PDF
