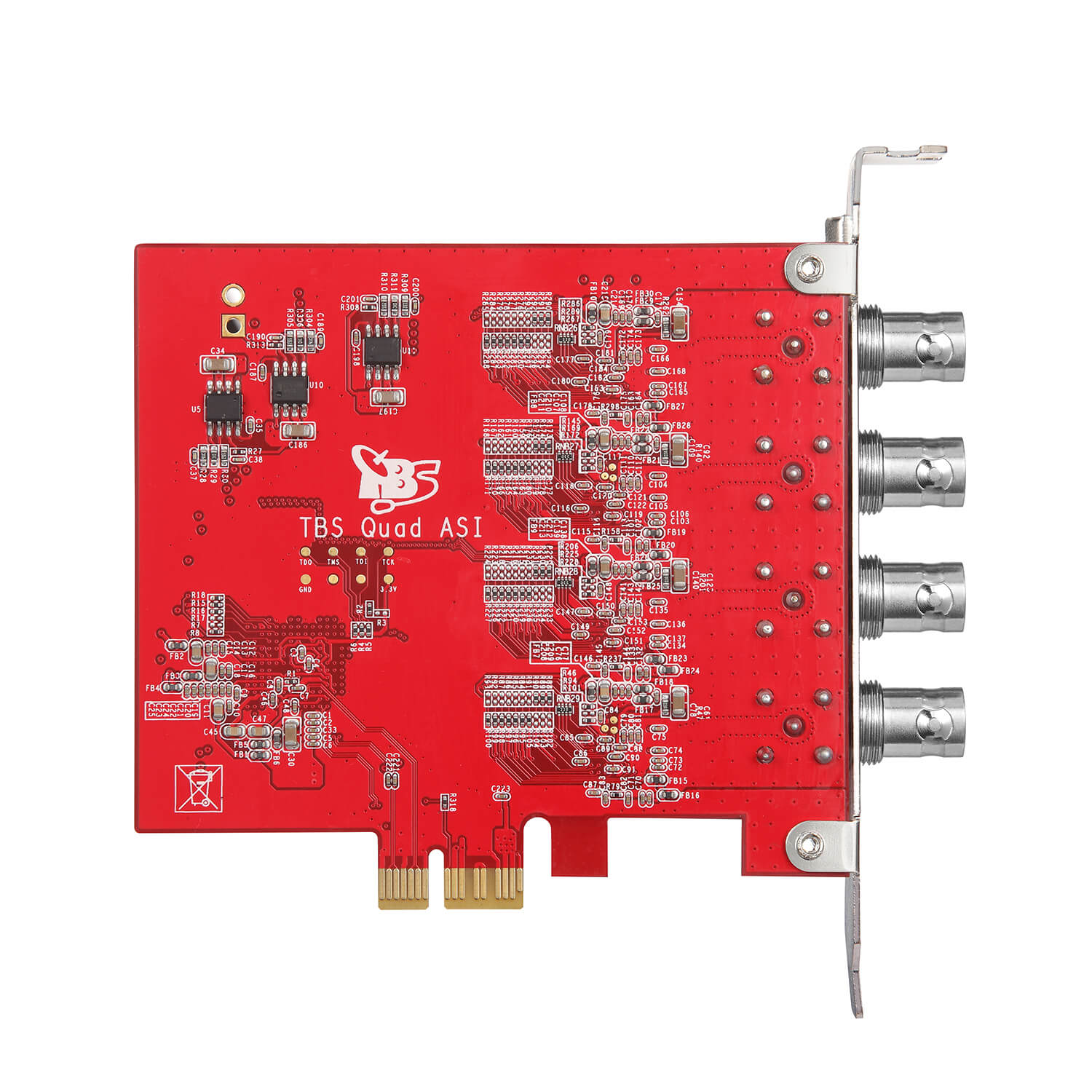

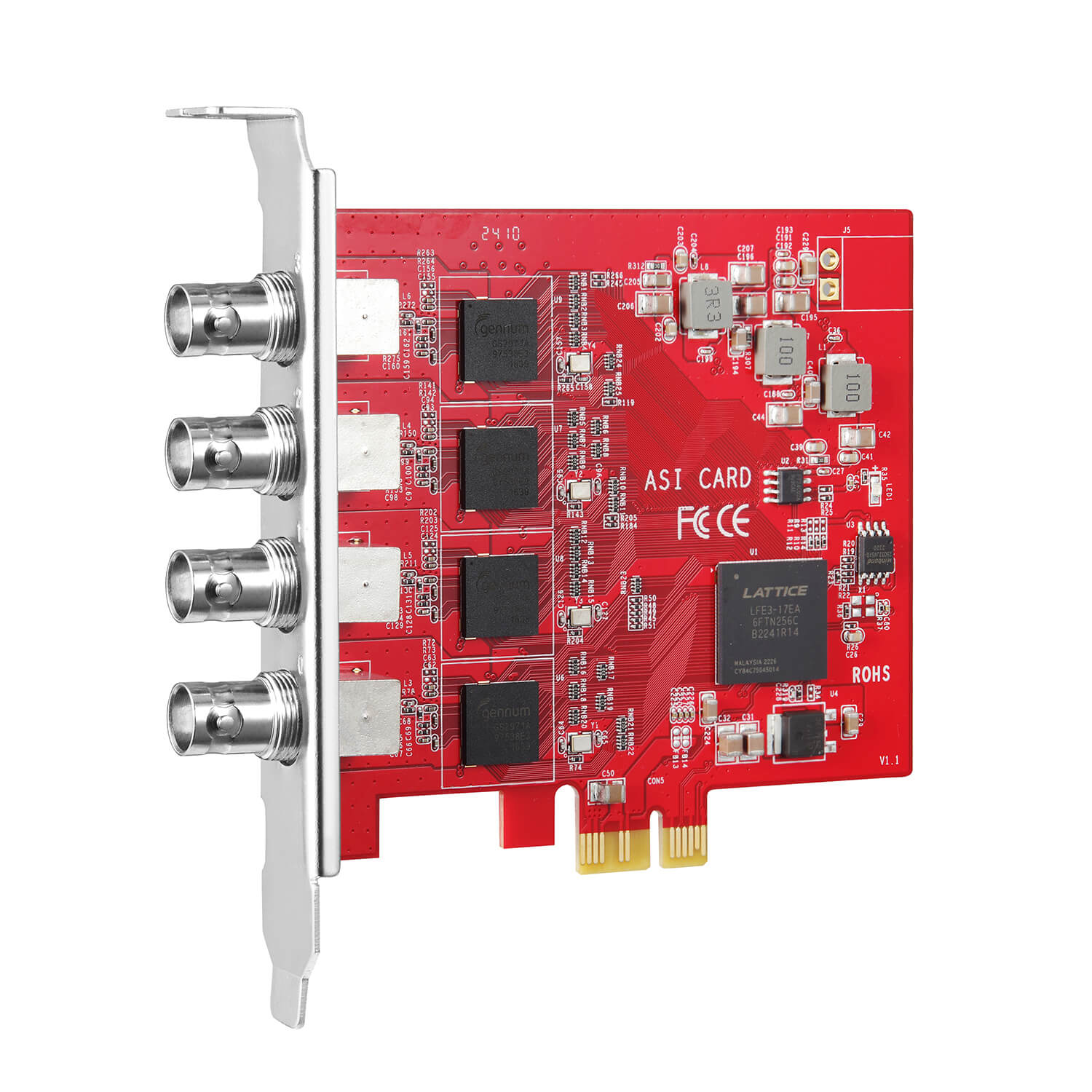

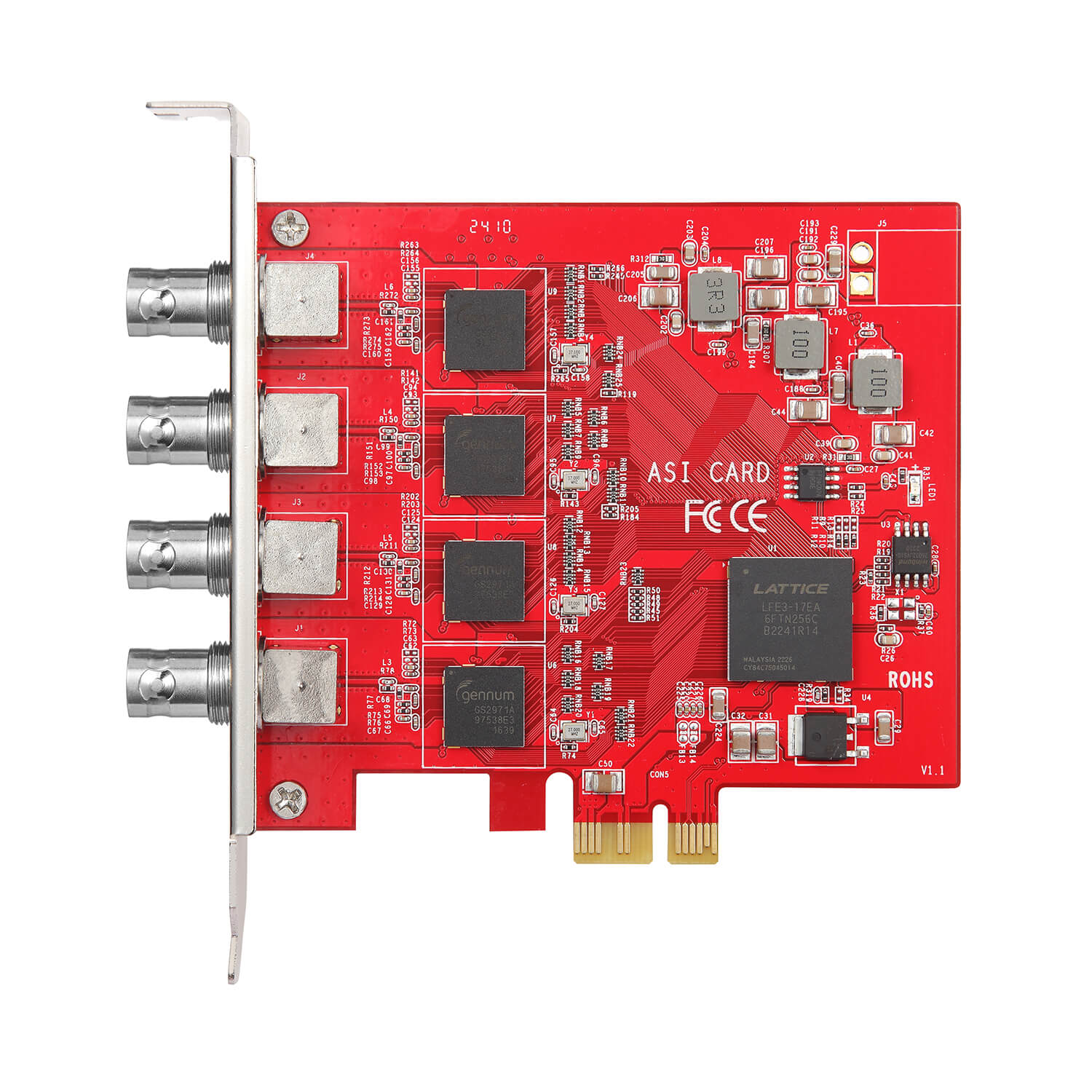

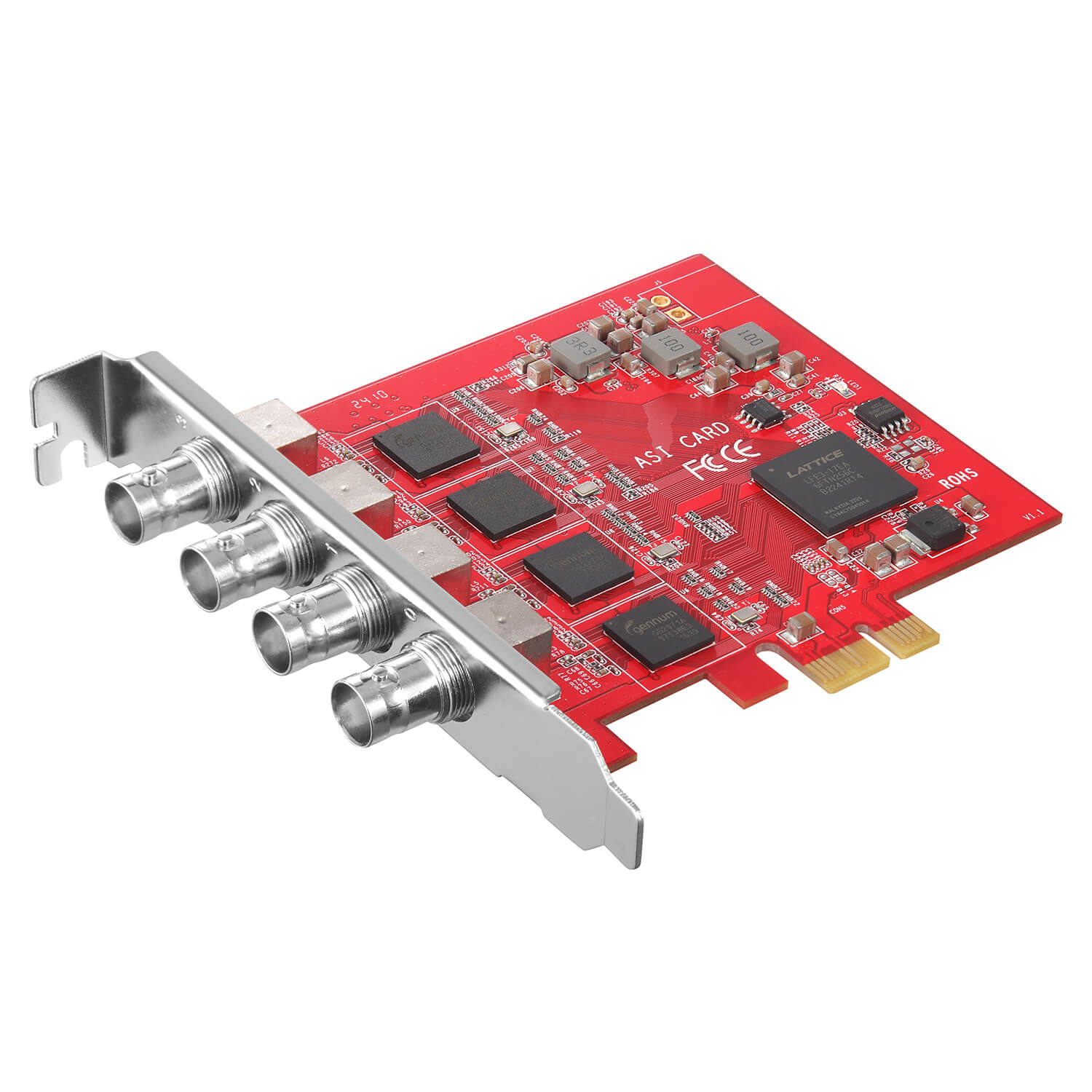

TBS690A 4 Input DVB-ASI Capture Card

TBS690A is a DVB-ASI capture card with 4 channels input, which used to receive DVB transport streams up to 270 Mbps/channel on one card, and the transport streams can be single programs or multi programs. TBS690A is ideal for high-density applications requiring up to four ASI inputs, the input channels can run independently. With minimal power consumption, TBS690A is tailored for industrial applications where reliability is an option.

  • Description
  • Specification
  • Picture
  • User Guide
  • Download

Main Features:

  • DVB-ASI input
  • Compatible with DVB Standard
  • Four receiver channels on the same PCI-e card
  • Full DVB-ASI throughput of 270 Mbps per channel
  • Bandwidth can be divided as required between the ports
  • Signal quality sensing support in hardware


Applications:

  • IPTV Servers
  • ASI to IP conversion
  • Datacasting and monitoring
  • Electronic Program Guides (EPG's)
  • Broadcast TV
