    DVB-S2 8Fr input and DVB-T 12Fr output for up to 320M/39 HD channels

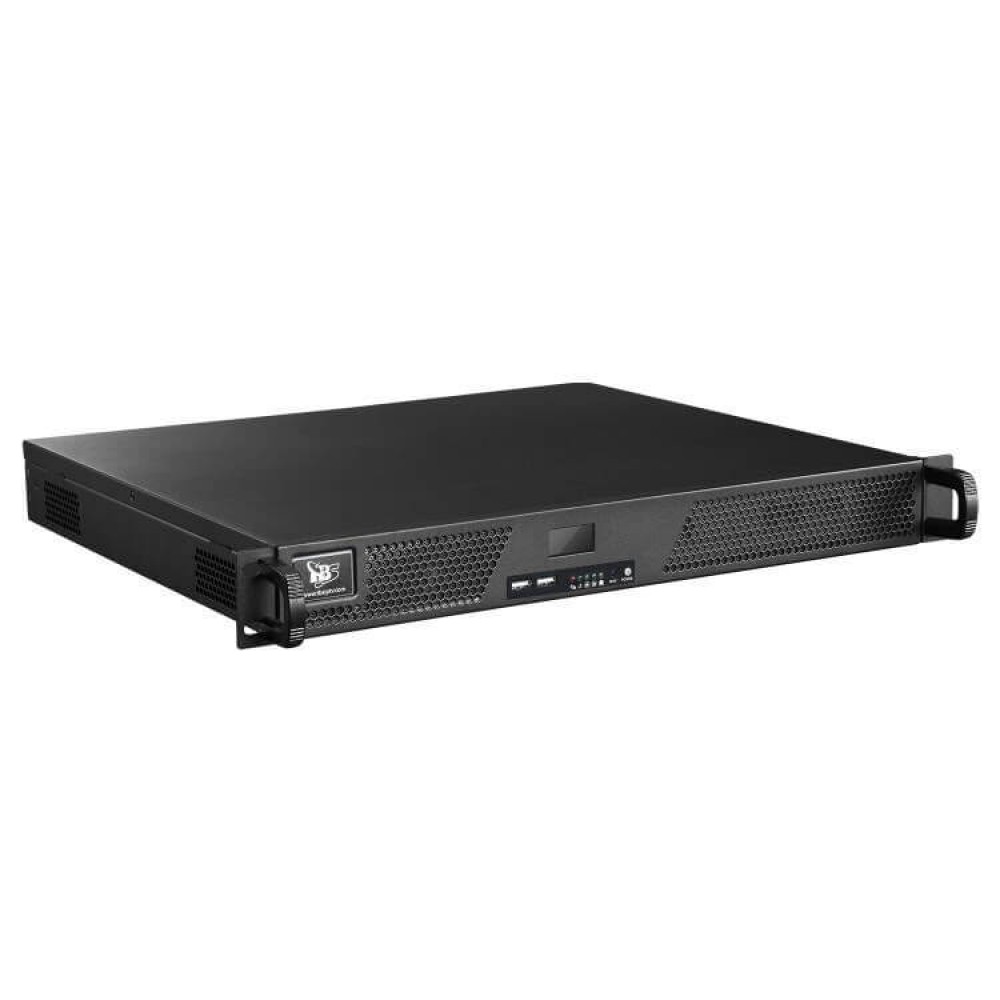

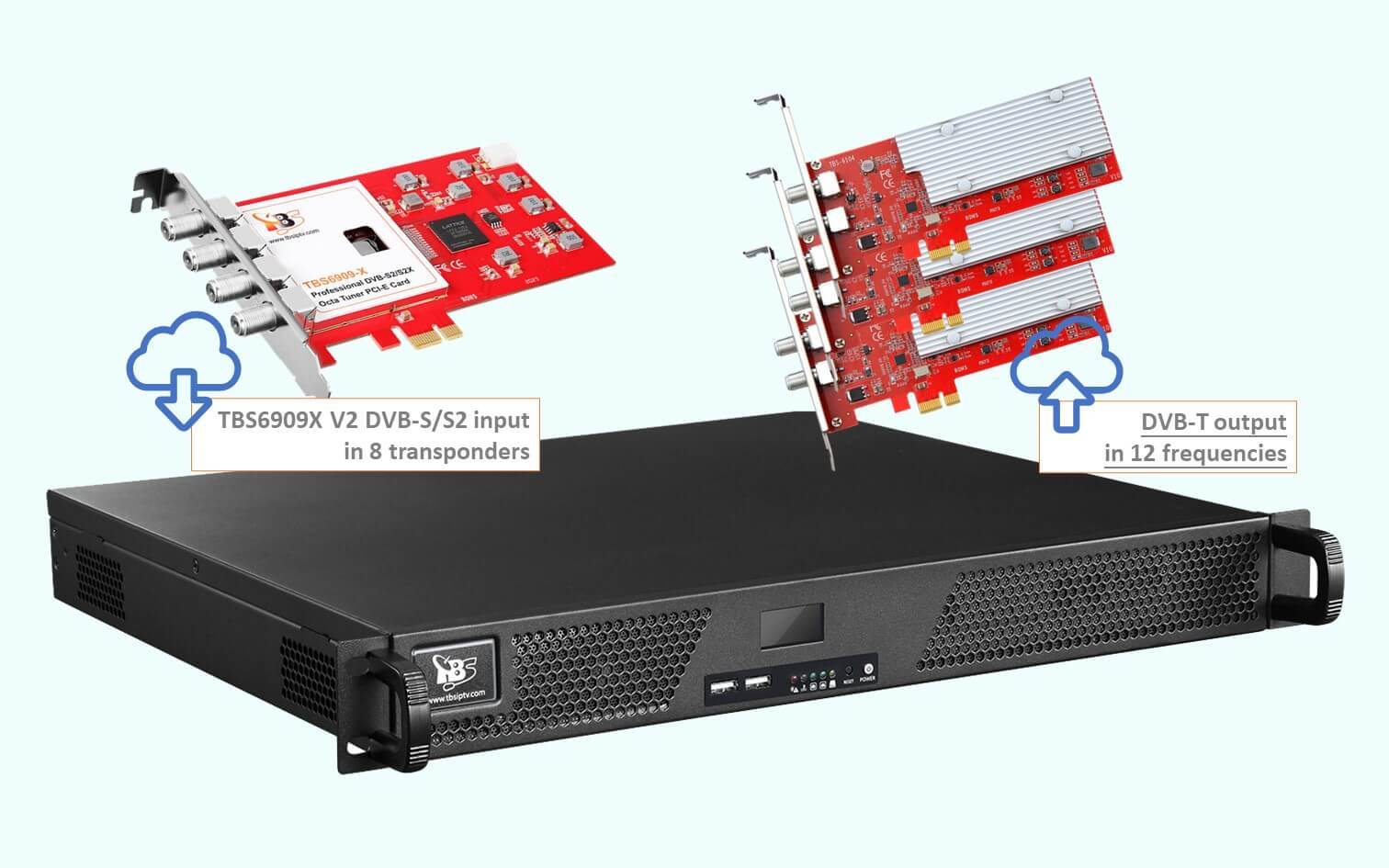

    TBS DVB-S/S2 to DVB-T Modulator is a brilliant combination of TBS2955 streaming server with 1pcs TBS6909x V2 DVB-S/S2/S2X Octa Tuner PCIe card and 3pcs TBS6104 DVB-T modulator PCIe card. It supports to receive free satellite channels from 8 transponders simultaneously and convert to DVB-T signal outputting through standard DVB-T RF-port in 12 frequencies for around 39 HD channels.

    Key Features

    • 8 DVB-S/S2/S2X RF input to capture free satellite channels in 8 transponders simultaneously
    • L-Band: 950 MHz to 2150 MHz
    • DVB FEC: (Auto Spectral Detection)
    • Modulation: QPSK, 8PSK, 16APSK, 32APSK
    • Outputs: DVB-T in 12 frequencies
    • DVB-T output frequencies range: 50 ~ 950 MHz
    • Output Channel bandwidth: 6,7,8 MHz
    • Software embedded supporting channels REMUX.
    • Supports to output around 320M DVB-T channels through 12 RF-port (Around 39 HD CHs)
