    DVB-S2 8Fr input and DVB-T 8Fr output for up to 216M/26 HD channels

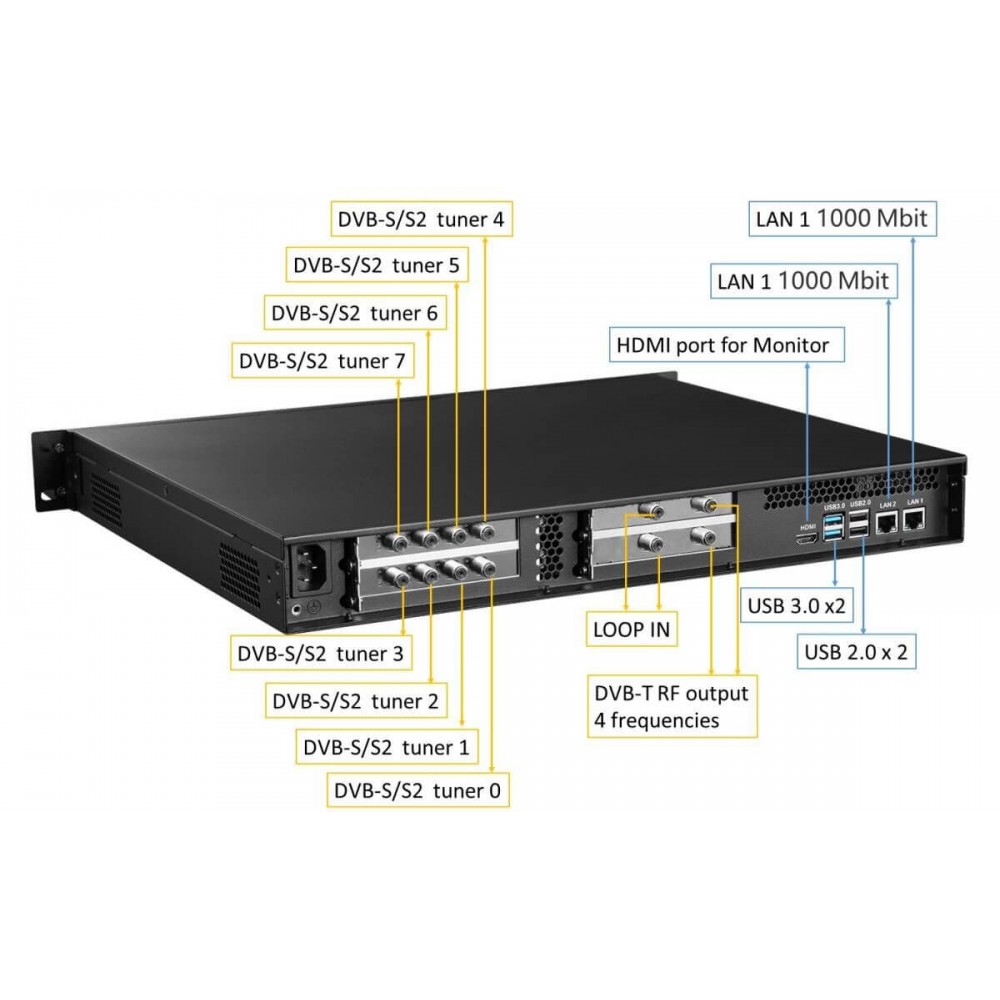

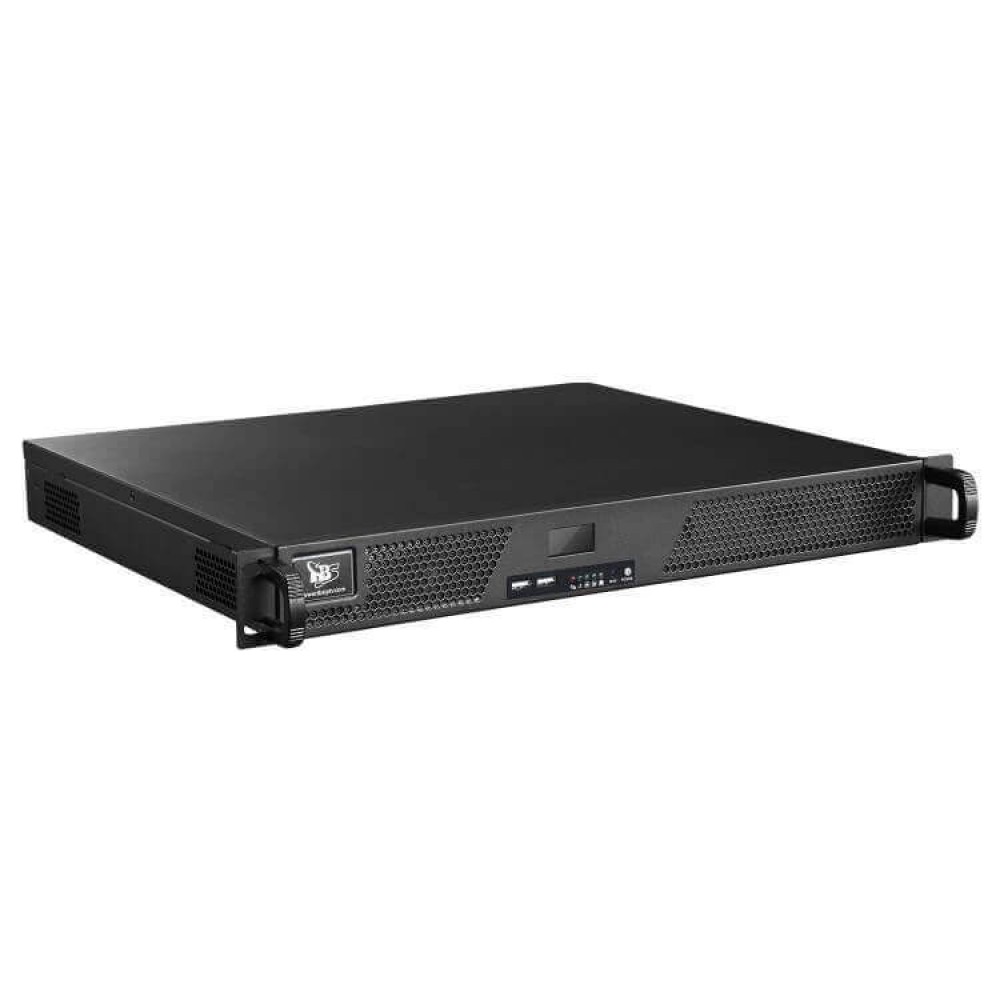

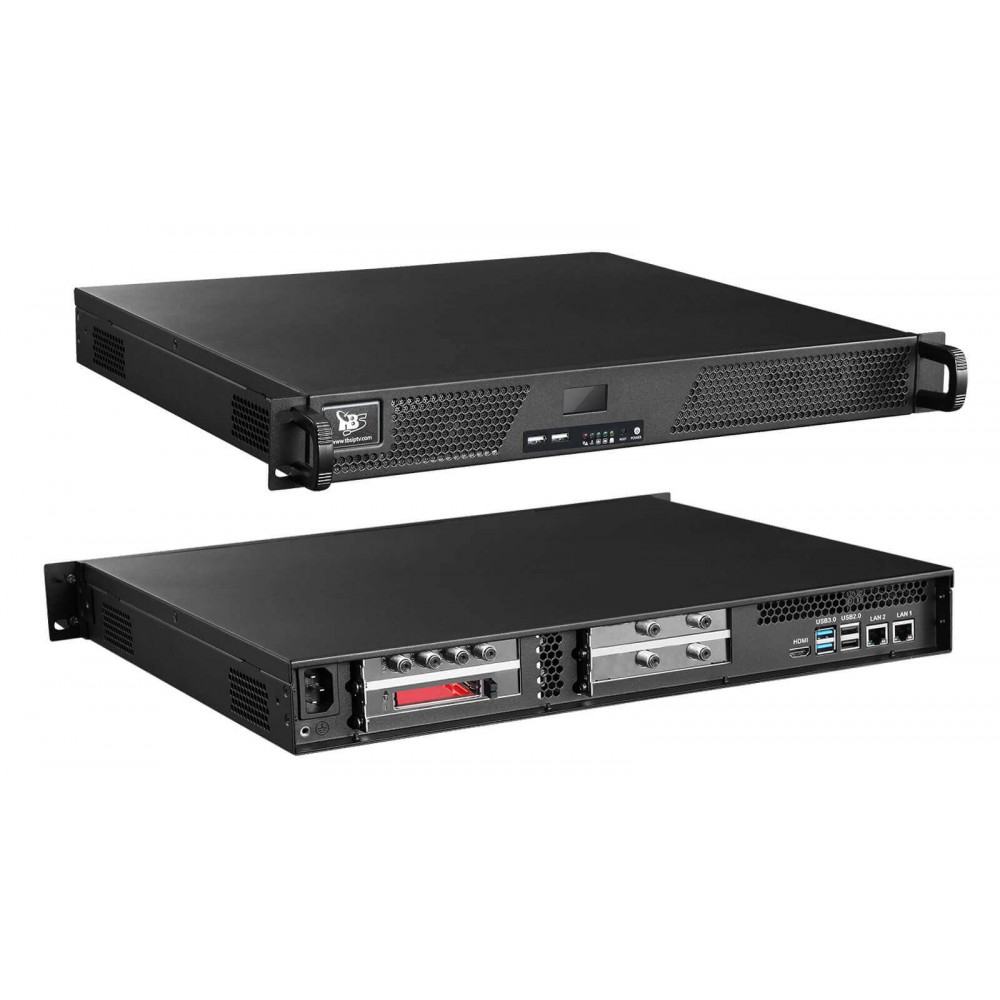

    TBS DVB-S/S2 to DVB-T Modulator is a brilliant combination of TBS2955 streaming server with 2pcs TBS6904se DVB-S/S2/S2X Quad Tuner PCIe card and 2pcs TBS6104 DVB-T modulator PCIe card. It supports to receive free satellite channels from 8 transponders simultaneously and convert to DVB-T signal outputting through standard DVB-T RF-port in 8 frequencies.

    Key Features

    • 8 DVB-S/S2/S2X RF input to capture free satellite channels in 8 transponders simultaneously
    • L-Band: 950 MHz to 2150 MHz
    • DVB FEC: (Auto Spectral Detection)
    • Modulation: QPSK, 8PSK, 16APSK, 32APSK
    • Outputs: DVB-T in 8 frequencies
    • DVB-T output frequencies range: 50 ~ 950 MHz
    • Output Channel bandwidth: 6, 7, 8 MHz
    • Software embedded supporting channels REMUX.
    • Supports to output around 216M DVB-T channels through 8 RF-port (Around 26 HD CHs)
