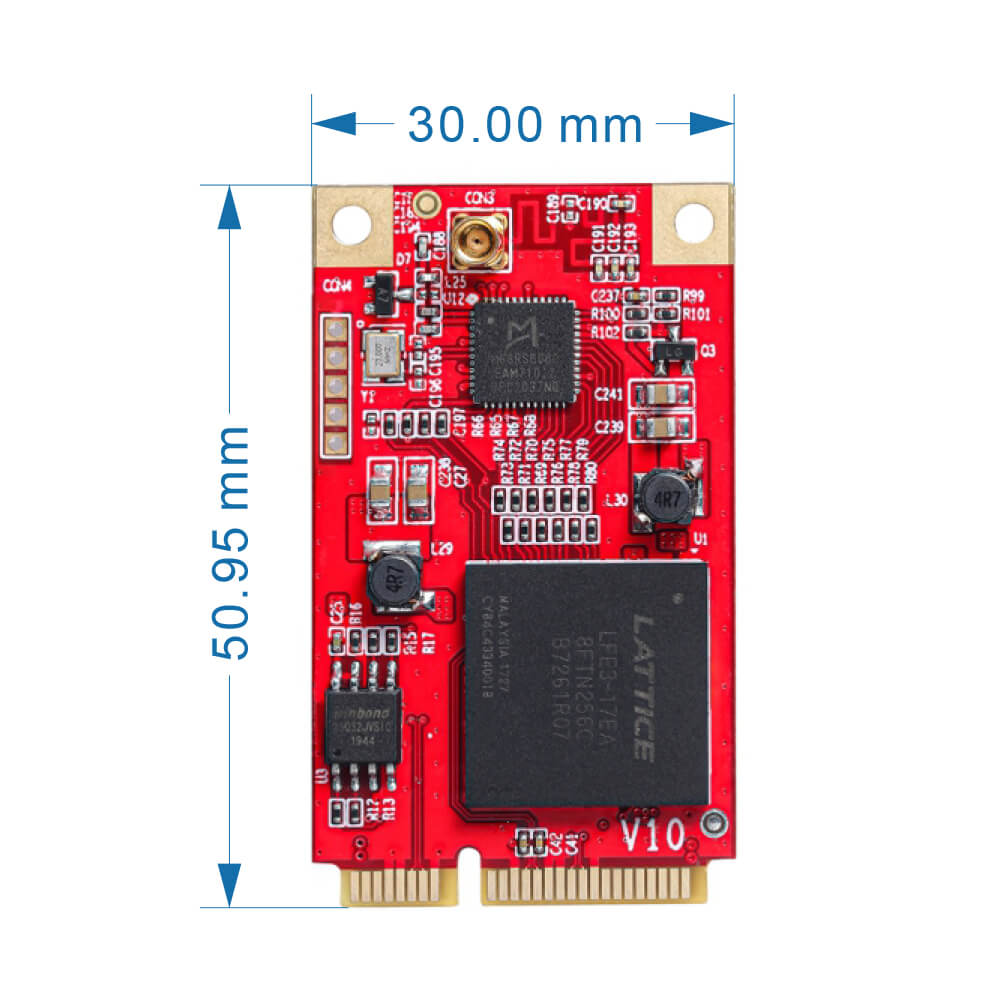

TBS DVB-S2X/S2/S MINI PCI-E CARD

TBS DVB-S2X/S2/S mini-PCI-e card is a digital satellite TV Tuner card for watching and recording Free to Air satellite TV on desktop PC. It supports not only advanced DVB-S2X/S2/S, but also VCM and multi stream, which is considered as a professional TV tuner for industrial-level users.

Main Features

Support DVB-S/S2/S2X
Fast scanning functionality for all media
Supports VCM and multi stream
High-speed data download via satellite
Watch & record satellite TV / radio programs on PC

Applications

Data receiving
IPTV streaming
Media monitoring
Digital content distribution

Specifications

Model		DVB-S2X/S2 mini card
Connection		Mini PCI-express slot
		1x RF in
DVB-S/S2/S2X
DVB-S/S2	QPSK	1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
	8PSK	3/5, 2/3, 3/4, 5/6, 8/9, 9/10
	16APSK	2/3, 3/4, 4/5, 5/6, 8/9, 9/10
	32APSK	3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X	QPSK	1/4, 1/3, 2/5 (S2-MODCODs)
		1/2, 3/5, 2/3, 3/4, 4/5, 5/6
		8/9, 9/10 (S2-MODCODs)
		11/45, 4/15, 14/45, 7/15, 8/15, 32/45
	8PSK (8APSK-L)	3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs)
		7/15, 8/15, 26/45, 32/45
	16APSK	2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs)
		7/15, 8/15, 26/45, 3/5, 32/45
	32APSK(32APSK-L)	3/4, 4/5, 5/6, 8/9, 9/10 (S2-MODCODs)32/45, 11/15, 7/9, (2/3)
VCM		Yes
Symbol rate		1 ~ 45Msymb/s
Power consumption
Input/ Power:		8 ~ 12W
temperature		0°~ 78°
System Requirements		Windows XP / Vista/ 7/ 8/ 10, Linux
		Available PCI Express x1, x4, x8 or x16 slot
